- Space-saving type with machine width 1500mm
- Various options such as pallet changer, long stroke
- Flexible fixture area and excellent for automation

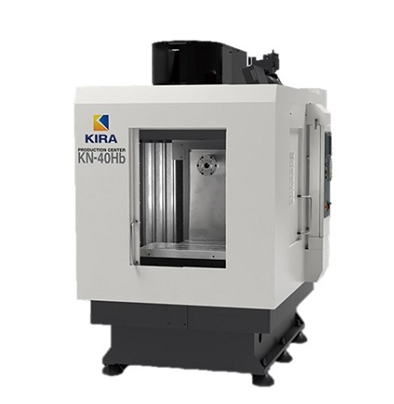

【Space-saving】
Machine width 1500mm
Compact design with machine width 1500mm enables to save space.
【Various options】
Fixed table
Standard fixed table specification with X-axis stroke of 500 mm. The table can be removed to install a large fixture.
Curvic coupling type pallet changer (2API) is available as an option for highly productivity.

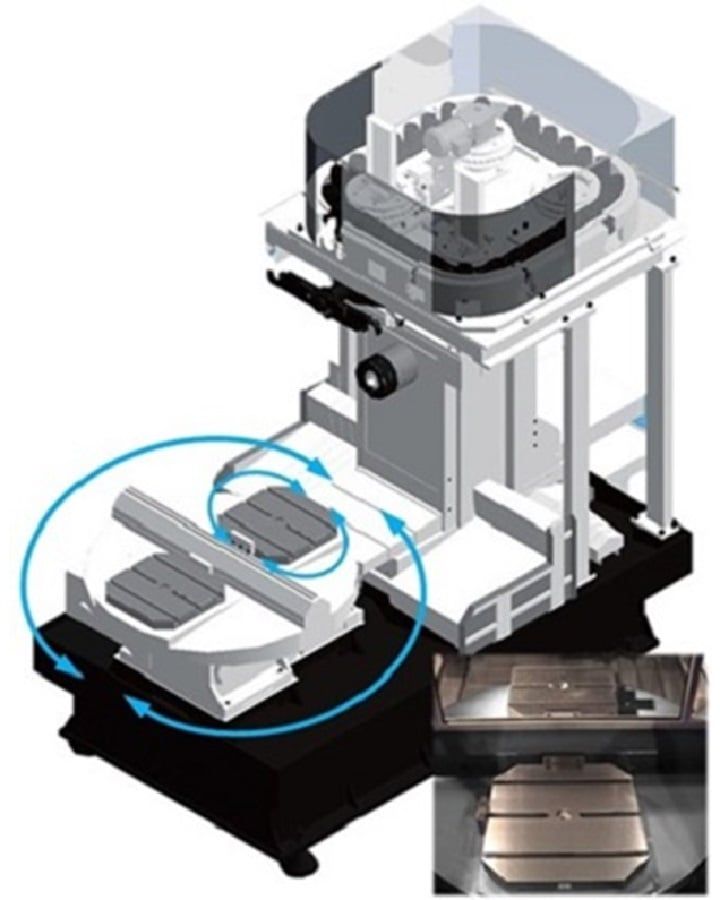

Pallet changer 2APC
The 4-axis control is equipped with pallet changer 2APC specification.
【Compatible with production line and flexible fixture design】

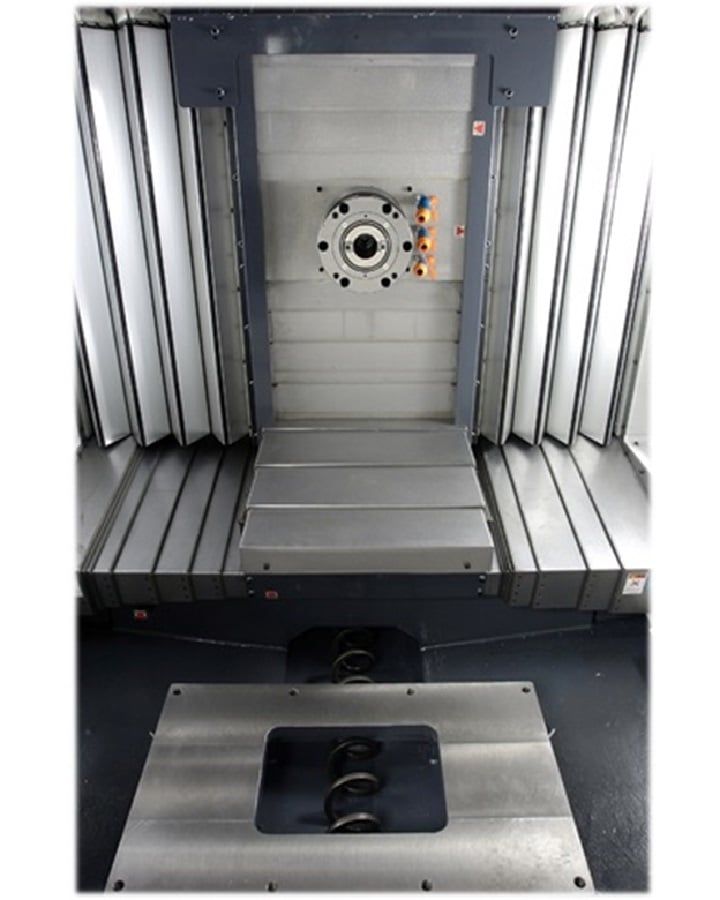

Wide fixture area
Wide fixture area enables to equip large fixtures flexibly.
Fixture
The machine is highly flexible and can be used with various type of fixtures.

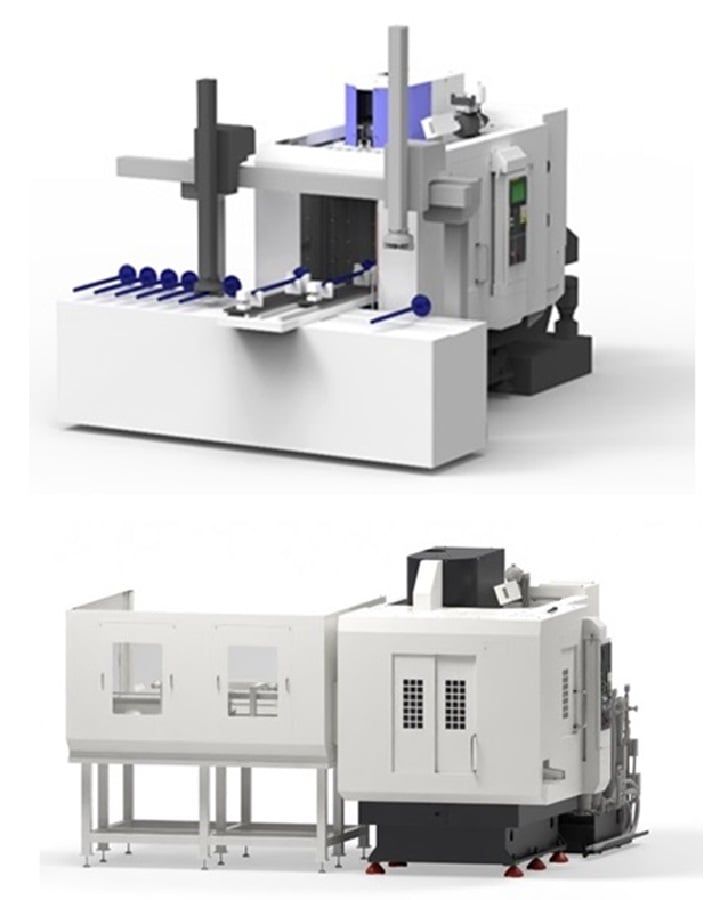

Automation line
It supports automation to meet your needs.
【Specifications】 | ||
Capacity | X-axis stroke | 500mm |
Y-axis stroke | 400mm | |
Z-axis stroke | 400mm | |
Table | Table size | Standard：700mm x 400mm |
2API type：600mm x 350mm | ||
2APC type：400mm x 400mm | ||
Max. load capacity | Standard：500kg (uniform load) | |
２API type：100kg + 100kg (uniform load) | ||
２APC type：100kg + 100kg (uniform load) | ||
Spindle | Spindle speed | BB1 type： 160-8000min-1 (5.5/3.7kW) |
CB1 type： 240-12000min-1 (5.5/3.7kW) | ||
10HP type： 160-8000min-1 (7.5/5.5kW) | ||
10CB type： 160-12000min-1 (7.5/5.5kW) | ||
15HP type： 160-8000min-1 (11/7.5kW) | ||
Taper | 7/24 taper No.40 | |
Feed rate | Rapid traverse (X,Y,Z) | 48m/min |
ATC | Tool shank | BT40 |
No. of tools | 20 tools (standard) | |
30 tools (option) | ||
40 tools (option) | ||
Machine dimension | Machine height | 2600mm |
Floor space | Standard：1500mm x 2950mm | |
2API type：1400mm x 3210mm | ||
2APC type：1500mm x 3550mm | ||
Mass of machine | Standard：Apporox. 4300kg | |
2API type：Apporox. 5100kg | ||
2APC type：Apporox. 5100kg | ||
