- Space-saving type with machine width 1200mm
- Equipped high-rigidity spindle diameter Φ60mm
- Flexible fixture area and excellent for automation
【Space-saving】

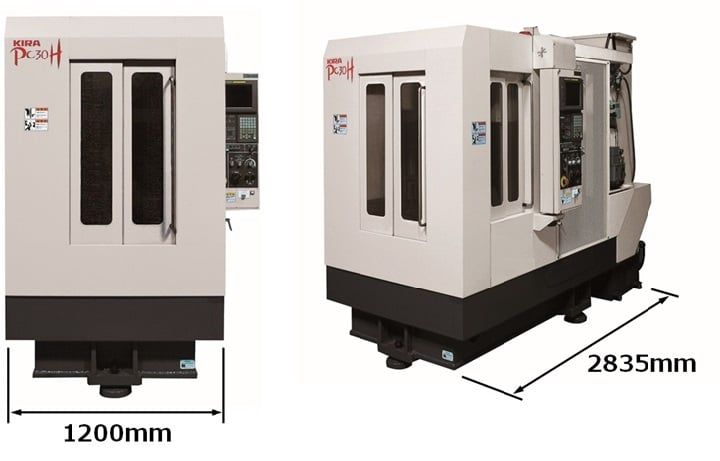

Machine width 1200mm
Even with an X-axis stroke of 500 mm, the space-saving machine width of 1200 mm allows for efficient installation on production lines.

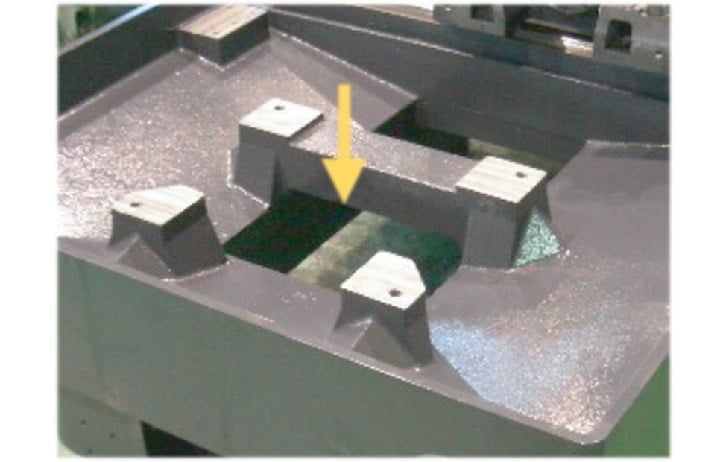

Center trough type bed
Center trough type bed ensures chip exhaust.
【High rigidity】

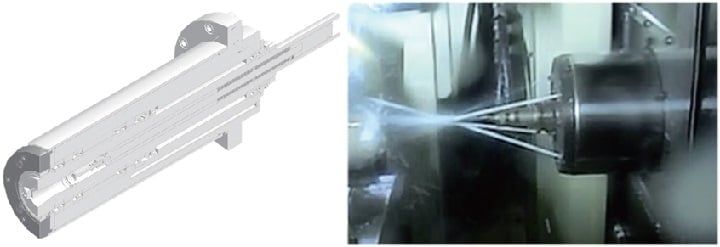

Spindle
The #30 high rigidity machine with ø60 mm spindle has a structure pursuing heavy cutting.
【Flexible fixture area and excellent for automation】

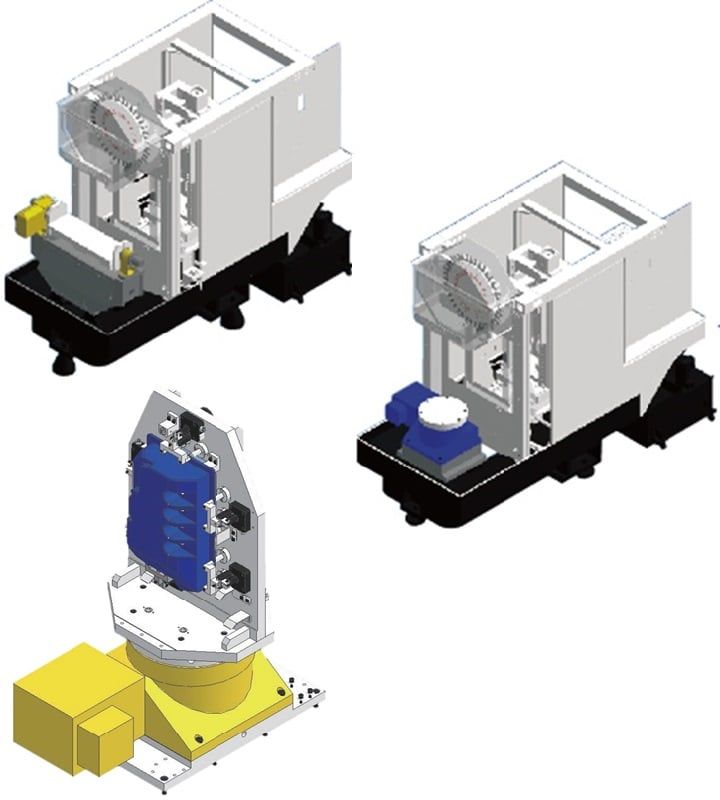

Fixture
The machine is highly flexible and can be used with various type of fixtures.

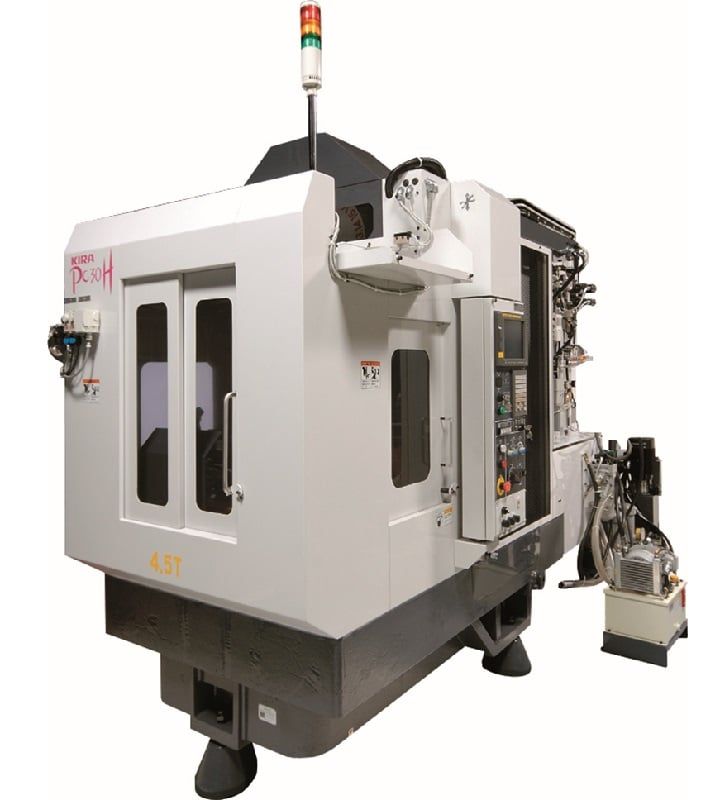

Gantry loader can be installed easily.

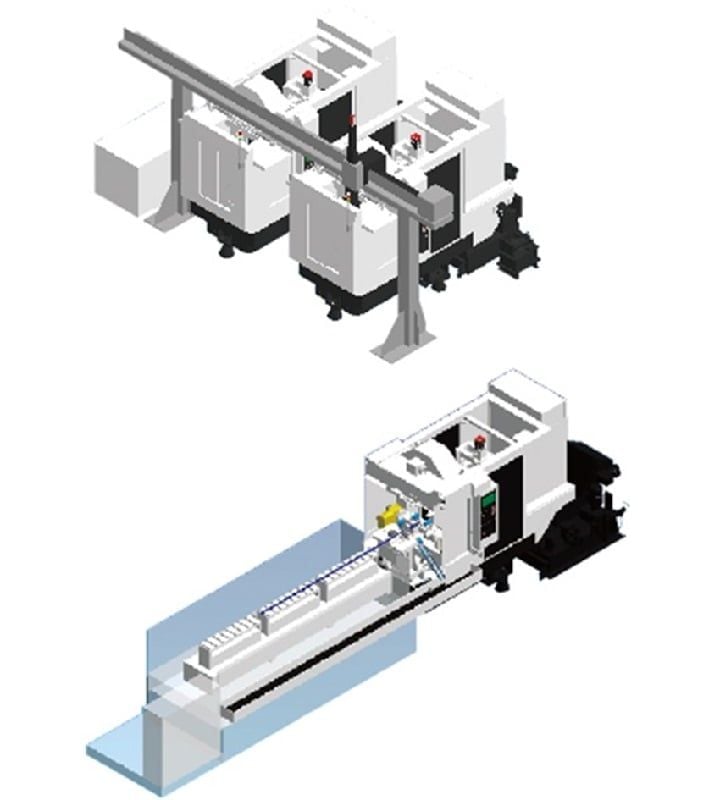

Automation line
It supports automation to meet your needs.
【Specifications】 | ||
Capacity | X-axis stroke | 500mm |
Y-axis stroke | 400mm | |
Z-axis stroke | 350mm | |
Table | Table size | 700mm x 400mm |
Max. load capacity | 500kg (uniform load) | |
Spindle | Spindle speed | BB type： 50-8000min-1 (standard) |
CB type： 50-12000min-1 (option) | ||
Taper | 7/24 taper No.30 | |
Feed rate | Rapid traverse (X,Y,Z) | 48m/min |
ATC | Tool shank | BT30 |
No. of tools | 20 tools | |
Machine dimension | Machine height | 2332.3mm |
Floor space | 1200mm x 3305mm | |
Mass of machine | Apporox. 4500kg | |
