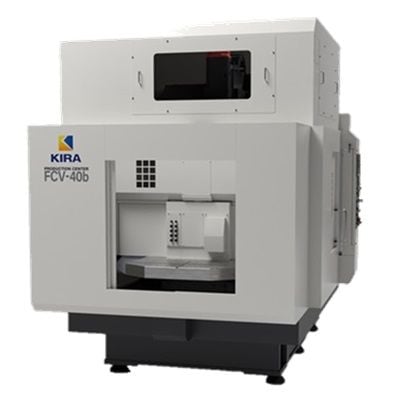

- Uncompromising speeding up achieves high productivity
- Large pallet changer can be installed
【Productivity】
Increased speed of each axis
Rapid traverse 60m/min
Axis acceleration
0.62G(X),0.74G(Y),0.87G(Z)
High-speed tool change system
T-T 1.2s / C-C 2.8s

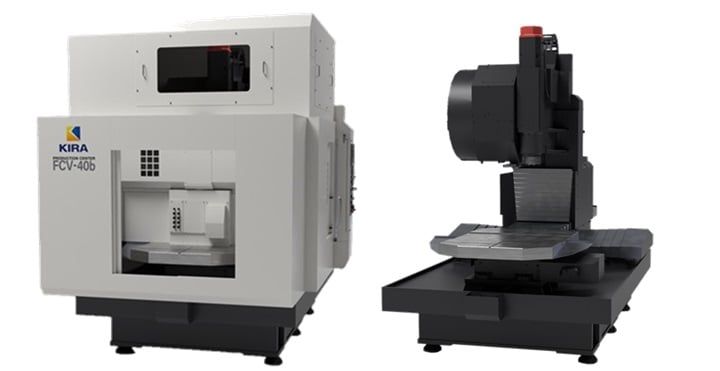

Pallet changer system
Equipped with pallet changer as option for further productivity improvement
【High performance】

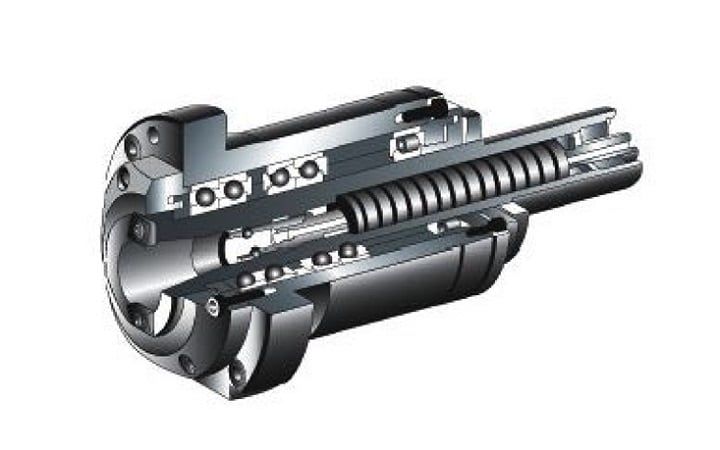

Spindle
Direct drive
Spindle speed
Standard 10000min-1 (15/11/7.5/5.5kW)
High speed 15000min-1 (7.5kW/5.5kW)
Ultra high speed 20000min-1 (9/5.5/3.7kW)
High rigidity 6000min-1 (18.5/15/11/7.5kW)

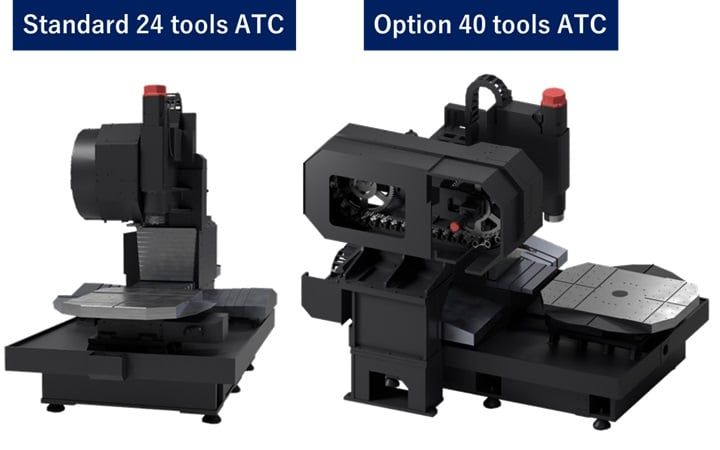

ATC / number of tools
Standard 24 tools
Option 40 tools

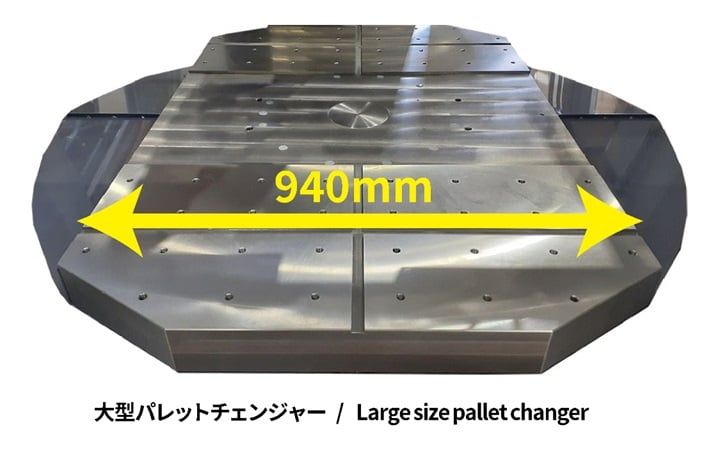

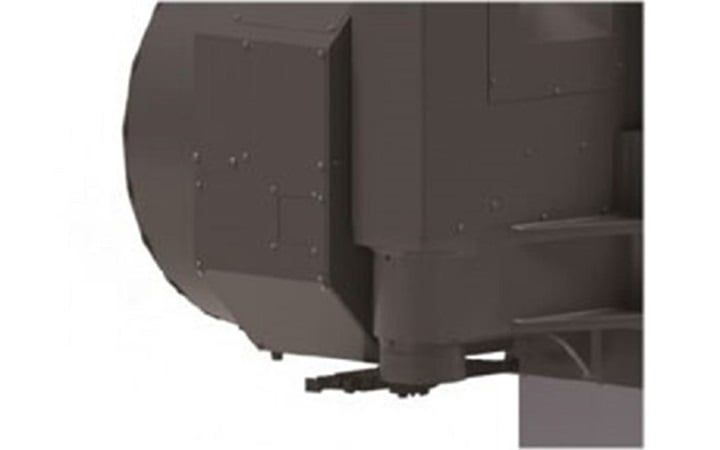

Large pallet changer
Table size 940mm x 420mm
Capacity 300kg + 300kg

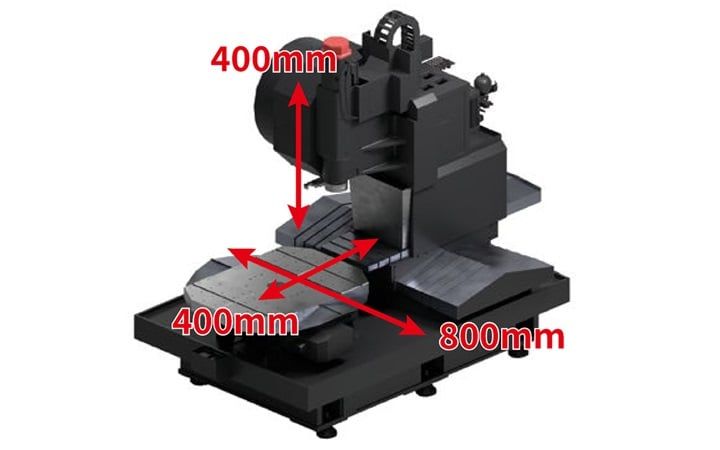

Wide machining area
X-axis 800mm / Y-axis 400mm / Z-axis 400mm

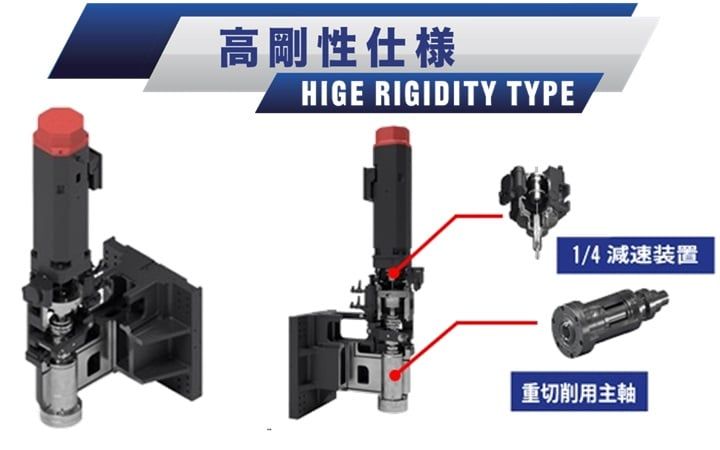

High rigidity and high torque specification installed 1/4 reduct ion gear to spindle are also available

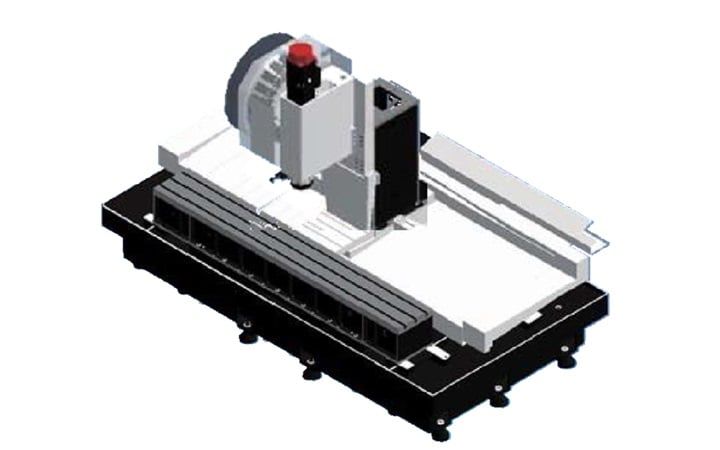

X-axis long stroke
Also, we can offer X-axis long stroke specification suitable for machining long workpieces, etc., as an option
【Suitable for production line】

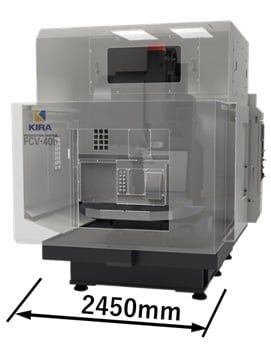

Machine width 2450mm
【Specifications】 |
| |
Capacity | X-axis stroke | 800mm |
Y-axis stroke | 400mm | |
Z-axis stroke | 400mm | |
Table | Table size | 940mm x 420mm |
Max. load capacity | 300kg + 300kg | |
Spindle | Spindle speed | Standard： 160-10000min-1 (15/11/7.5/5.5kW) |
High speed： 160-15000min-1 (7.5/5.5kW) | ||
Ultra high speed： 160-20000min-1 (9/5.5/3.7kW) | ||
High rigidity： 160-6000min-1 (18.5/15/11/7.5kW) | ||
Taper | 7/24 taper No.40 | |
Feed rate | Rapid traverse (X,Y,Z) | 60m/min |
ATC | Tool shank | BT40 |
No. of tools | 24 tools (standard) | |
40 tools (option) | ||
Machine dimension | Machine height | 2865mm |
Floor space | 2450mm x 4200mm | |
Mass of machine | Standard：Apporox. 8800kg | |
