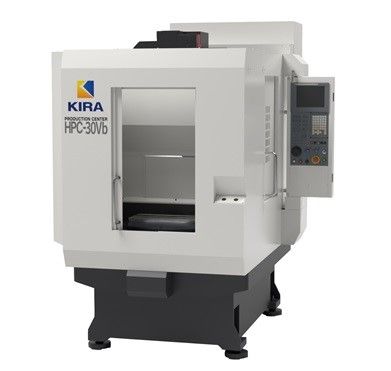

- Pallet changer as standard equipment
- High-speed ATC and rapid traverse 56m/min for high productivity
- Compact machine, Suitable for production line
【Pallet changer as standard equipment】

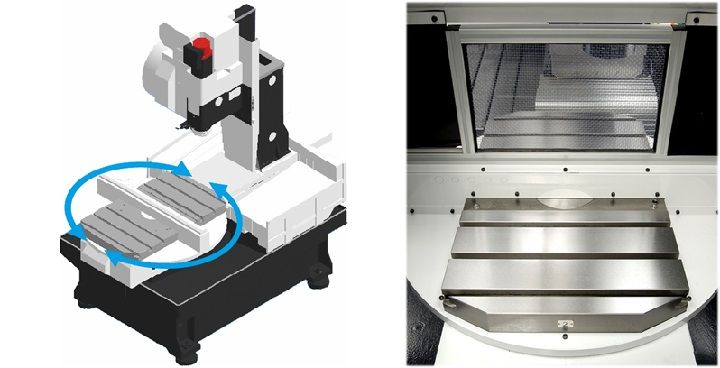

High speed pallet changer in pursuit of productivity
2AQC type 500mm x 300mm (50kg + 50kg) change time 1.7s
2AQC type 500mm x 300mm (100kg + 100kg) change time 2.4s
2API type 600mm x 350mm (100kg + 100kg) change time 4.0s
【Productivity】
Rapid traverse 56m/min
High-speed specification of 56m/min rapid traverse on each axis contributes to reduce cycle time.

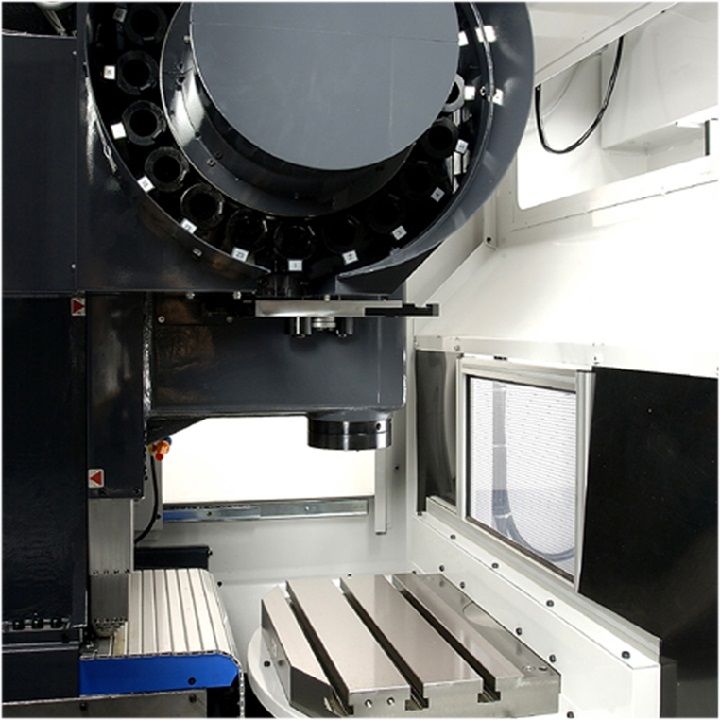

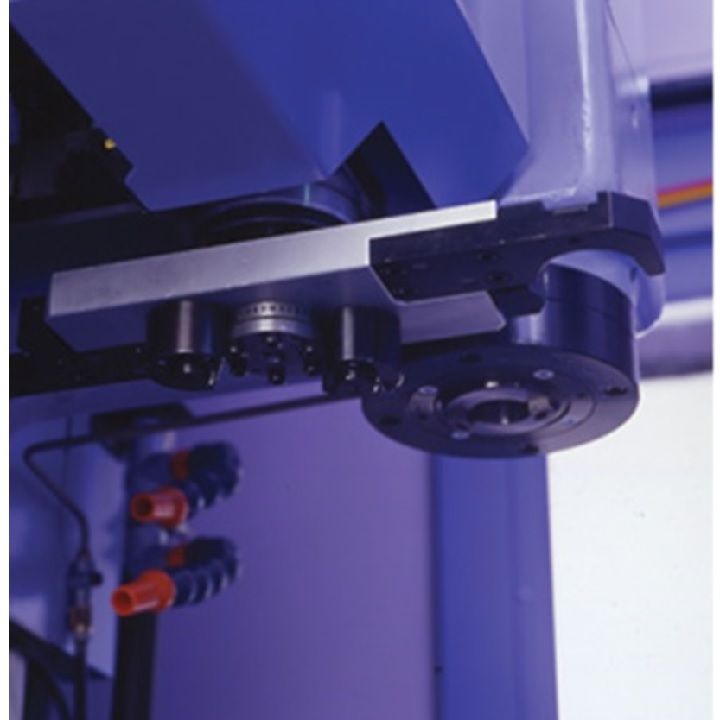

High-speed ATC
High-speed ATC T-T 0.7 sec. reduces non-cutting time.
【Compact machine, Suitable for production line】

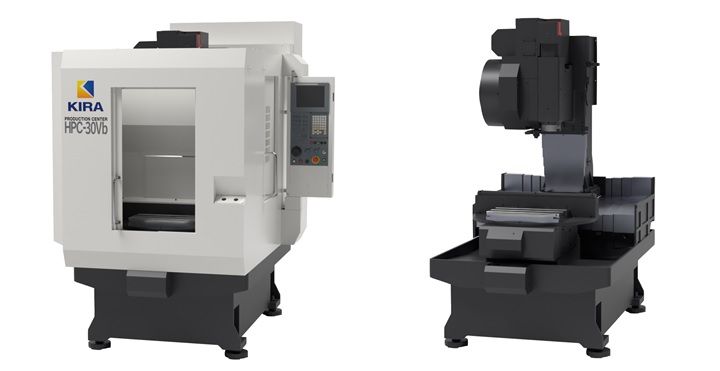

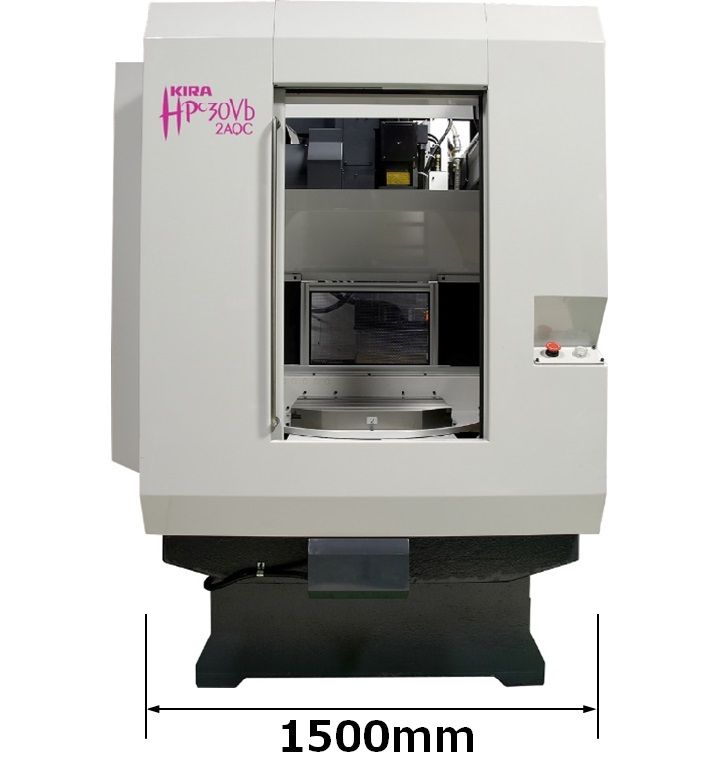

Machine width 1500mm
The machine width 1500mm saves space and enables the construction of highly flexible production line layouts.
【Specifications】 |
| |
Capacity | X-axis stroke | 350mm |
Y-axis stroke | 290mm | |
Z-axis stroke | 320mm | |
Table | Table size | 2AQC：500mm x 300mm (standard) |
2API：600mm x 350mm (option) | ||
Max. load capacity | 2AQC：50kg + 50kg (standard) | |
2AQC：100kg + 100kg (option) | ||
2API：100kg + 100kg (option) | ||
Pallet change time | 2AQC (50kg + 50kg)：1.7 sec (standard) | |
2AQC (100kg + 100kg)：2.4 sec (option) | ||
2API (100kg + 100kg)：4.0 sec (option) | ||
Spindle | Spindle speed | 50-15000min-1 |
Taper | 7/24 taper No.30 | |
Feed rate | Rapid traverse (X,Y,Z) | 56m/min |
ATC | Tool shank | BT30 |
No. of tools | 20 tools | |
Machine dimension | Machine height | 2380mm |
Floor space | 1500mm x 2980mm | |
Mass of machine | Standard：Apporox. 3300kg | |
