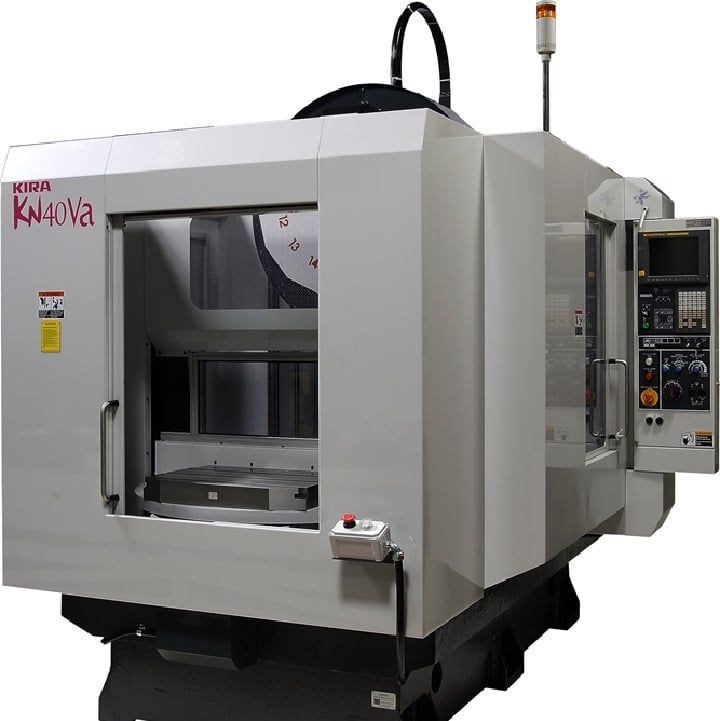

- Reliable and simple structure
- Various option such as pallet changer, long stroke
- ATC direct change system
【Productivity】

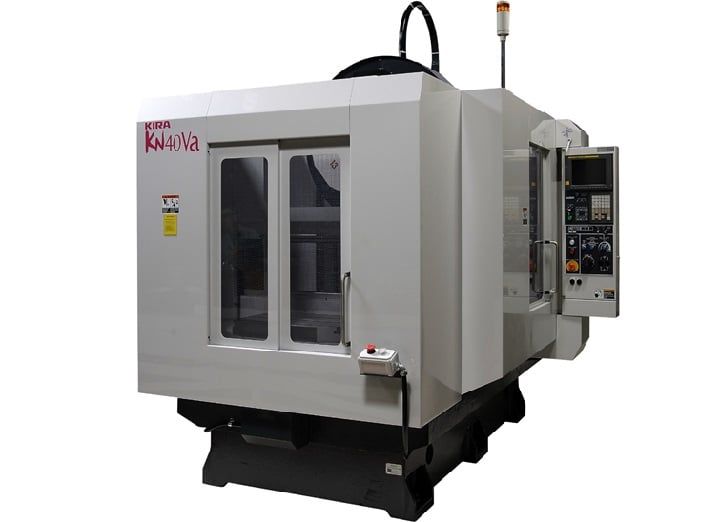

Simple structure
The simple structure of the #40 machine reduces downtime of production line.

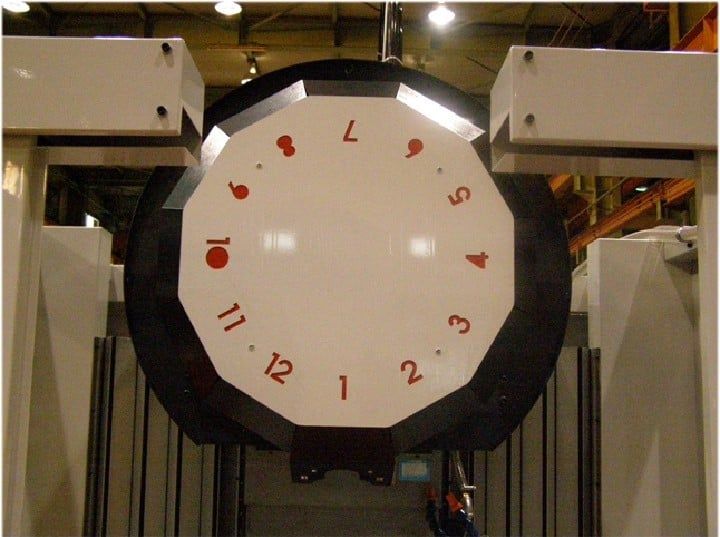

ATC direct change system
ATC direct change system ensures high reliability and easy maintenance.
【Various options】

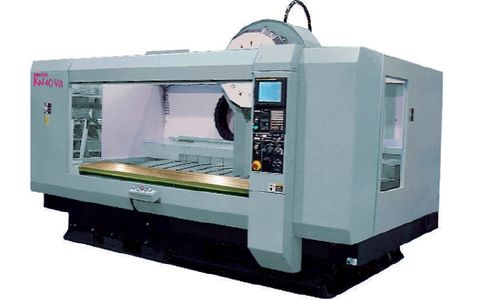

Fixed table
Standard fixed table specification with X-axis stroke of 500 mm. The table can be removed to install a large fixture.

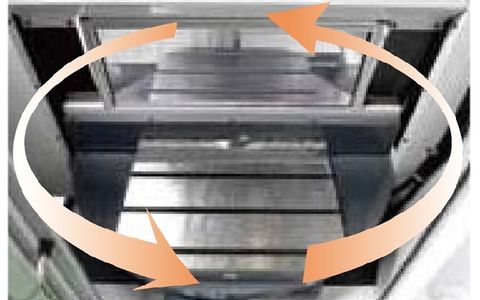

Pallet changer
Curvic coupling type pallet changer (2API) is available as an option for highly productivity.
X-axis long stroke
Also, we can offer X-axis long stroke specification suitable for machining long workpieces, etc., as an option.
【Specifocations】 | ||
Capacity | X-axis stroke | 500mm |
Y-axis stroke | 350mm | |
Z-axis stroke | 400mm | |
Table | Table size | Standard：700mm x 400mm |
2API type：600mm x 350mm | ||
Max. load capacity | Standard：500kg (uniform load) | |
２API type：100kg + 100kg (uniform load) | ||
Spindle | Spindle speed | AB type： 120-4000min-1 (5.5/3.7kW) |
BB type： 180-6000min-1 (5.5/3.7kW) | ||
CB type： 300-10000min-1 (5.5/3.7kW) | ||
10HP type： 180-6000min-1 (7.5/5.5kW) | ||
Taper | 7/24 taper No.40 | |
Feed rate | Rapid traverse (X,Y) | 48m/min |
Rapid traverse (Z) | 36m/min | |
ATC | Tool shank | BT40 |
No. of tools | 12 tools (standard) | |
14 tools (option) | ||
Machine dimension | Machine height | 2610mm |
Floor space | Standard：1900mm x 3050mm | |
2API type：1900mm x 3500mm | ||
Mass of machine | Standard：約3800kg | |
2API type：約4000kg | ||
