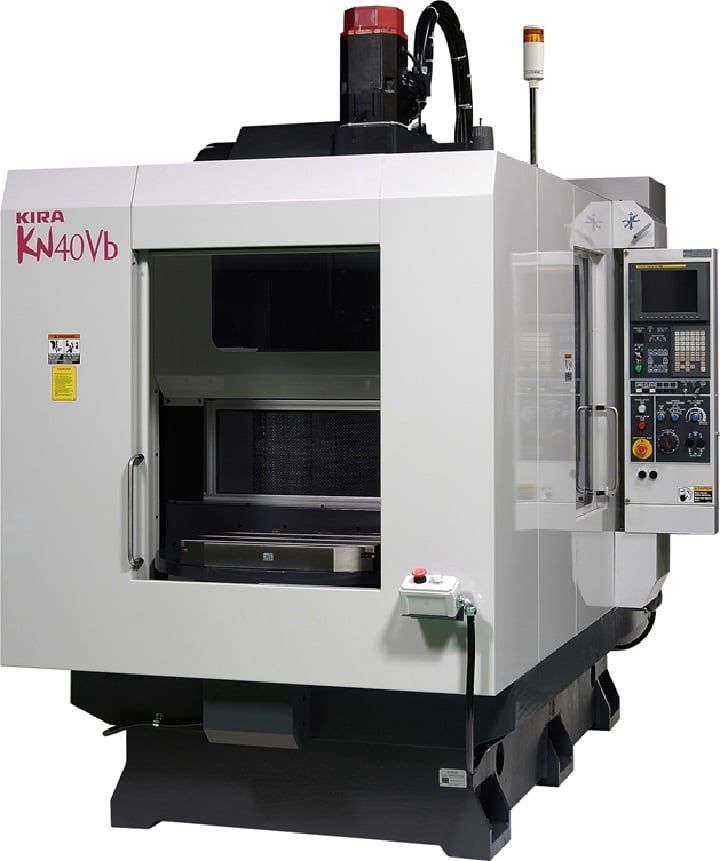

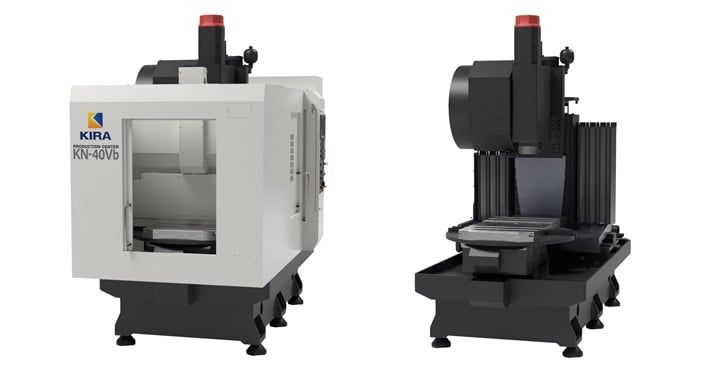

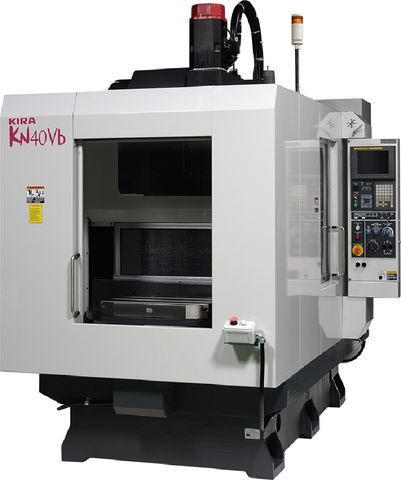

- Reliable and simple structure
- Various option such as pallet changer, long stroke
- ATC direct change system
【Productivity】

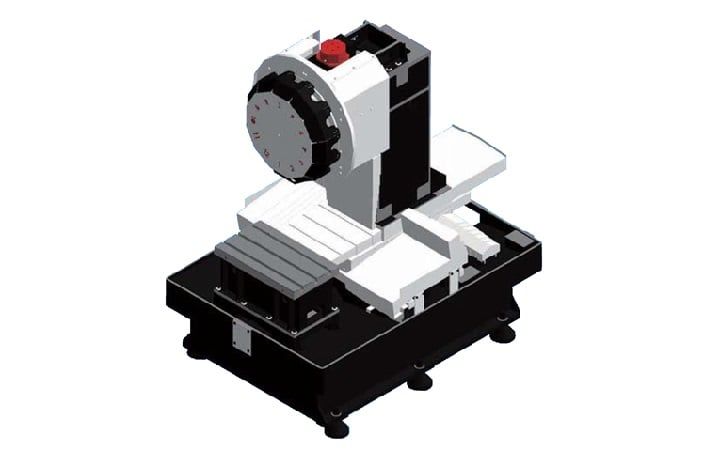

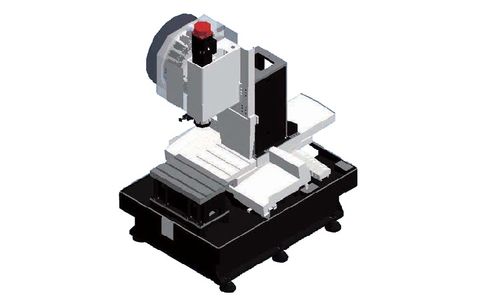

Simple structure
The simple structure of the #40 machine reduces downtime of production line.
ATC double arm system ensures high reliability and easy maintenance.
【Various options】
Fixed table
Standard fixed table specification with X-axis stroke of 500 mm. The table can be removed to install a large fixture.

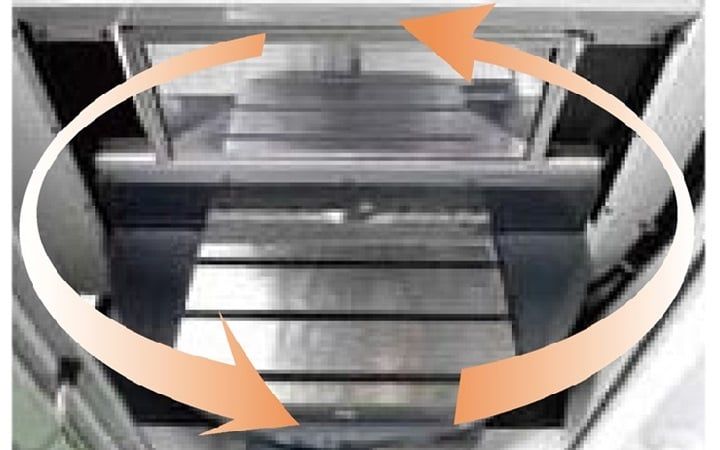

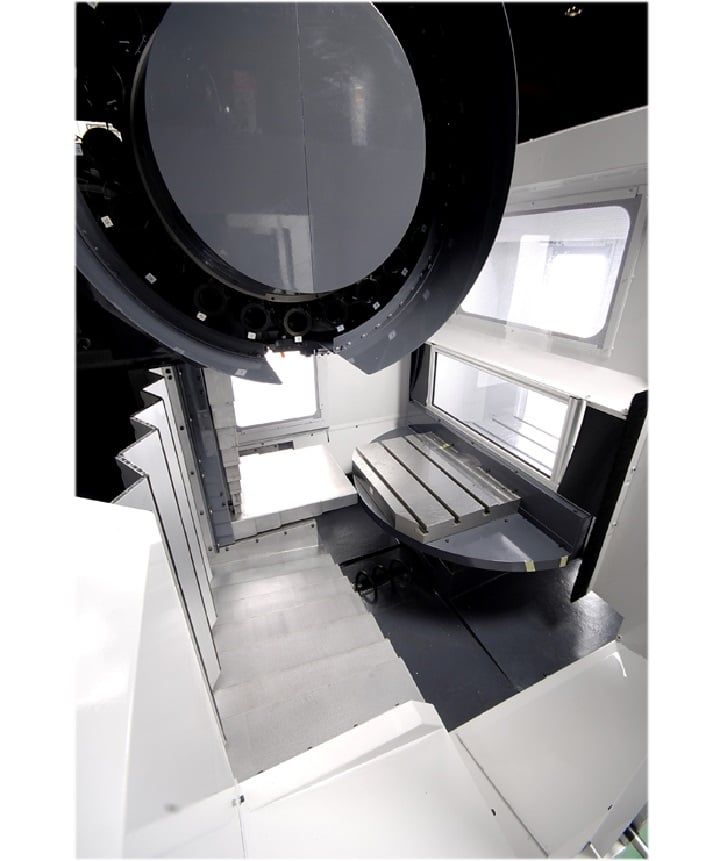

Pallet changer
Curvic coupling type pallet changer (2API) is available as an option for highly productivity.

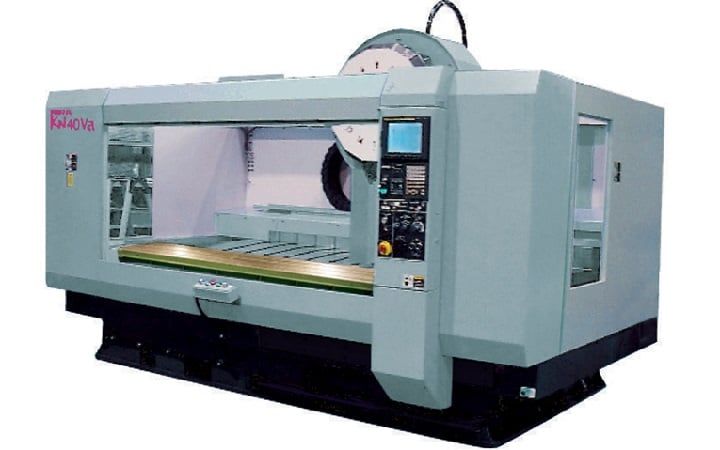

X-axis long stroke
Also, we can offer X-axis long stroke specification suitable for machining long workpieces, etc., as an option.
【Specifications】 | ||
Capacity | X-axis stroke | 500mm |
Y-axis stroke | 350mm | |
Z-axis stroke | 400mm | |
Table | Table size | Standard：700mm x 400mm |
2API type：600mm x 350mm | ||
Max. load capacity | Standard：500kg (uniform load) | |
2API type：100kg + 100kg (uniform load) | ||
Spindle | Spindle speed | BB1 type： 160-8000min-1 (5.5/3.7kW) |
CB1 type： 240-12000min-1 (5.5/3.7kW) | ||
10HP type： 160-8000min-1 (7.5/5.5kW) | ||
10CB type： 160-12000min-1 (7.5/5.5kW) | ||
15HP type： 160-8000min-1 (11/7.5kW) | ||
Taper | 7/24 taper No.40 | |
Feed rate | Rapid traverse (X,Y,Z) | 48m/min |
ATC | Tool shank | BT40 |
No. of tools | 20 tools | |
Machine dimension | Machine height | 2774mm |
Floor space | Standard：1750mm x 3000mm | |
2API type：1750mm x 3500mm | ||
Mass of machine | Standard：約3800kg | |
2API type：約4000kg | ||
