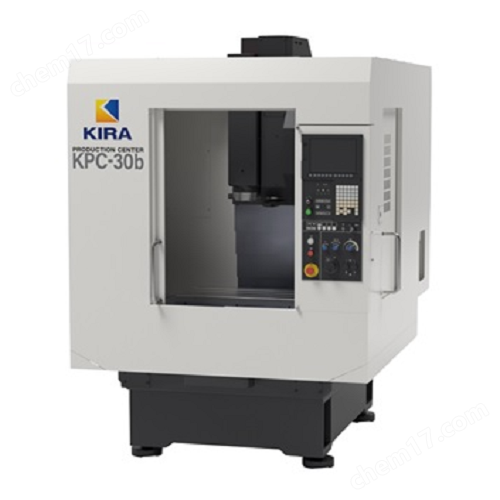

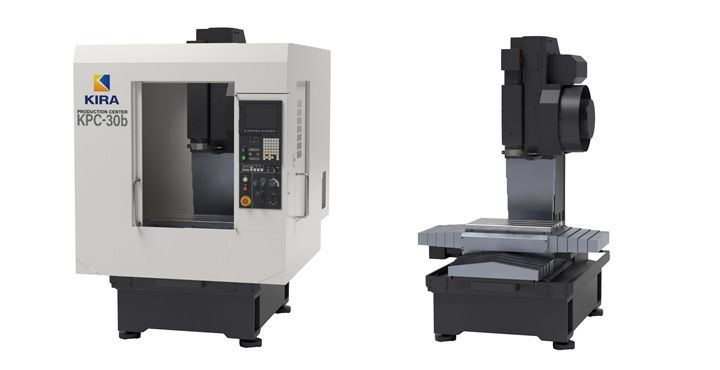

- Storing a large number of tools enables best process integration
- High-speed machine with rapid traverse 56m/min
【Double arm type ATC】

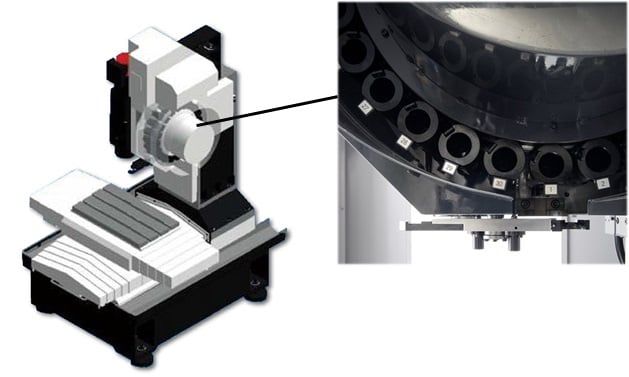

ATC storing a large number of tools
The number of stored tools is available in 20 (standard), 30 and 36 (optional) to provide the required quantity for process integration.
【Productivity】

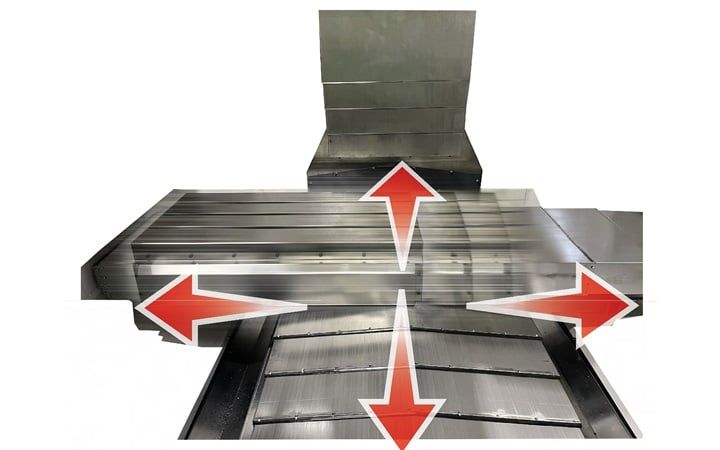

Rapid traverse 56m/min
Reduction of cycle time improves productivity with rapid traverse rate 56m/min.

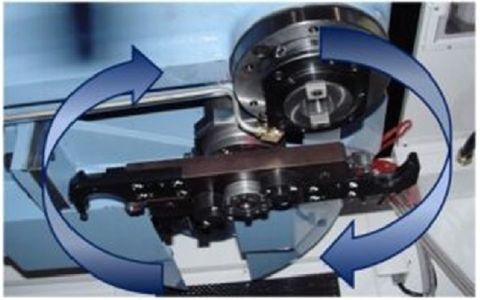

High-speed ATC
High-speed ATC with T-T 0.7s / C-C 1.7s reduces non-cutting time.
【Specifications】 | ||
Capacity | X-axis stroke | 500mm（standard） |
700mm（option） | ||
Y-axis stroke | 380mm (standard) | |
400mm (X700mmST type) | ||
Z-axis stroke | 300mm | |
Table | Table size | 650mm x 380mm（standard） |
800mm x 400mm（X700mmST type） | ||
Max. load capacity | 200kg (standard / uniform load) | |
250kg (X700mmST type / uniform load) | ||
Spindle | Spindle speed | BB type： 50-8000min-1 (standard) |
CB type： 50-15000min-1 (high speed) | ||
Taper | 7/24 taper No.30 | |
Feed rate | Rapid traverse (X,Y,Z) | 56m/min（standard） |
48m/min（X700mmST type） | ||
ATC | Tool shank | BT30 |
No. of tools | 20 tools (standard) | |
30 tools (option) | ||
36 tools (option) | ||
Machine dimension | Machine height | 2227mm |
Floor space | 1500mm x 2315mm（standard） | |
1800mm x 2328mm（X700mmST type） | ||
Mass of machine | Apporox. 2500kg（standard） | |
Apporox. 2800kg（X700mmST type） | ||
