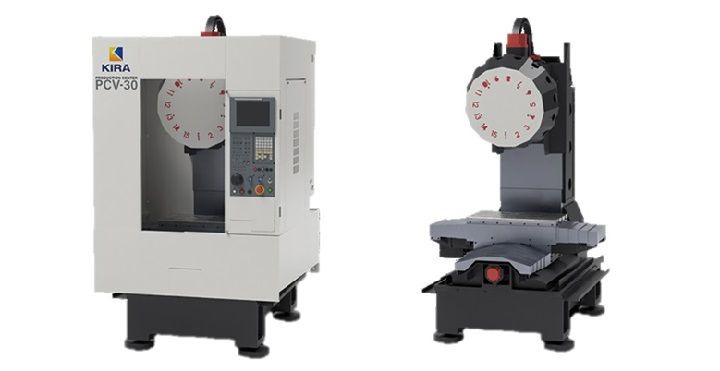

- Pursued machine rigidity despite small mode
- Suitable for production line, Machine width minimum 1250mm
- Easy loading and unloading of workpieces in automation
【High rigidity】
Roller guide

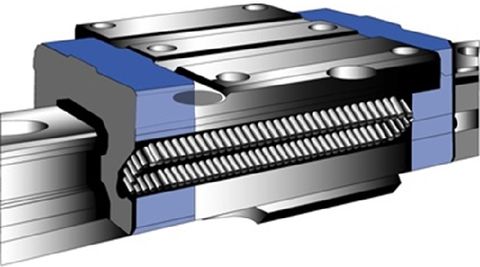

Roller guides equipped with all axes enable heavy cutting.
Large diameter ball screw

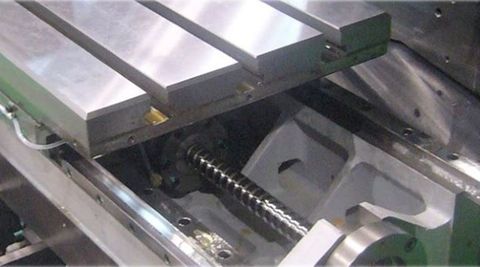

Large diameter ball screw realizes high rigidity.
Structural analysis technology
The state-of-the-art structural analysis technology achieves an optimal structure.
【Compact design】
Space-saving type

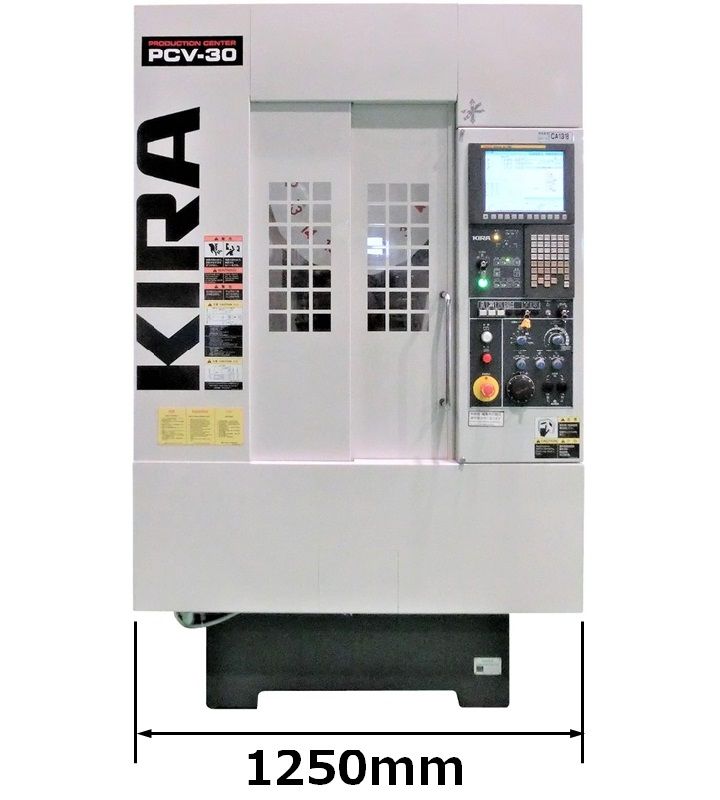

The compact design with a machine width of 1250 mm, which allows efficient use of factory space, enables construction of production lines with high flexibility.
Standard type

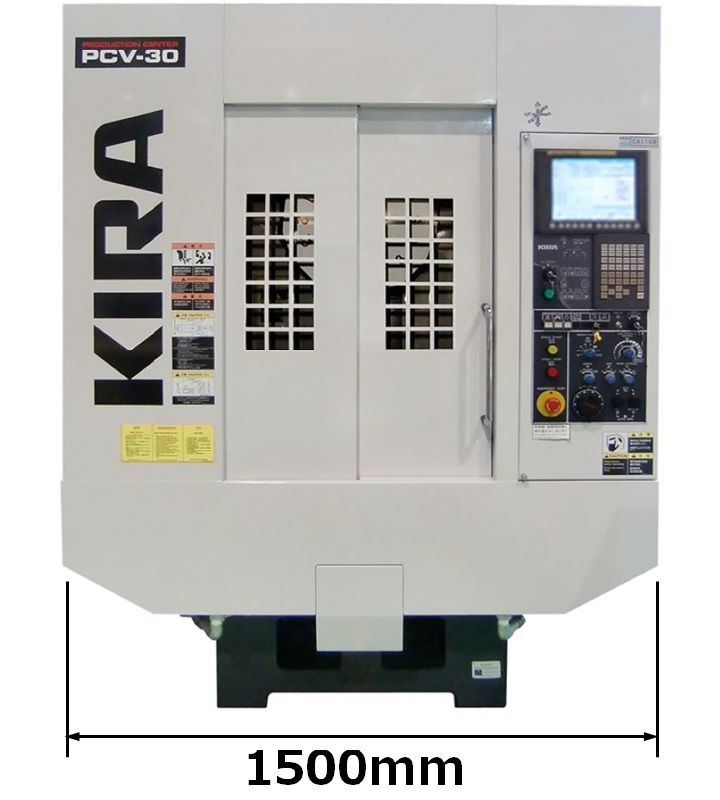

Wide machine width of 1500mm enables mounting of wide fixture.
【Y axis +200mm stroke for automation】
Extended Y axis stroke for gantry loader

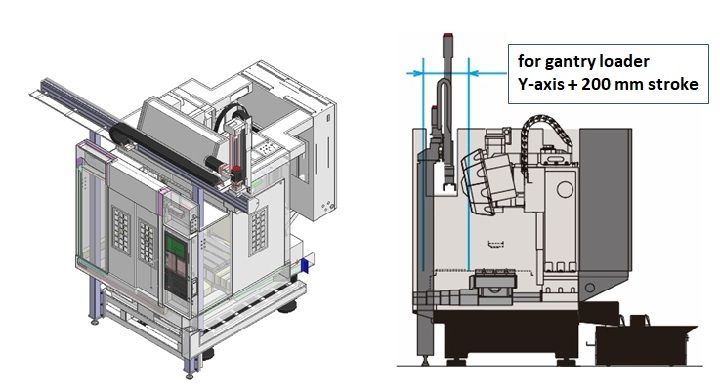

The Y-axis + 200 mm stroke version dedicated to gantry loader loading/unloading enables installation of the gantry loader without interference from the ATC magazine. Also, a large space can be secured when using a robot, etc., facilitating highly flexible loading/unloading operations.
【Specifications】 | ||
Capacity | X-axis stroke | 500mm |
Y-axis stroke | Standard：300mm | |
Automation type：300mm (machining area) +200mm (loading area) | ||
Z-axis stroke | 300mm | |
Table | Table size | 660mm x 350mm |
Max. load capacity | 150kg (uniform load) | |
Spindle | Spindle speed | BB type： 50-10000min-1 (standard) |
CB type： 50-15000min-1 (high speed) | ||
DB type： 50-24000min-1 (ultra high speed) | ||
AB type： 50-10000min-1 (high rigidity) | ||
Taper | 7/24 taper No.30 | |
Feed rate | Rapid traverse (X,Y,Z) | 48m/min |
ATC | Tool shank | BT30 |
No. of tools | 15 tools (standard) | |
21 tools (option) | ||
Machine dimension | Machine height | 2128mm |
Floor space | Compact type： 1250mm x 2450mm | |
Standard type： 1500mm x 2450mm | ||
Compact automation type： 1250mm x 2560mm | ||
Automation type： 1500mm x 2560mm | ||
Mass of machine | Standard：Apporox. 2200kg | |
