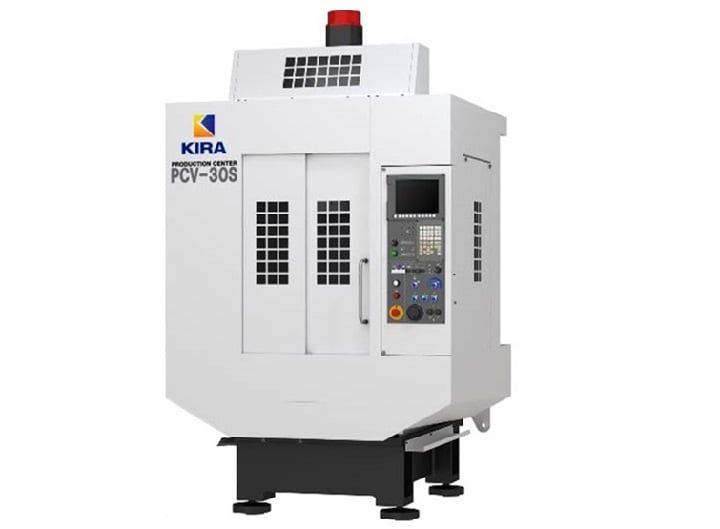

- Achieved high rigidity for heavy cutting
- Compact base machine for production line
- Perfect base machine for automation
【High rigidity】

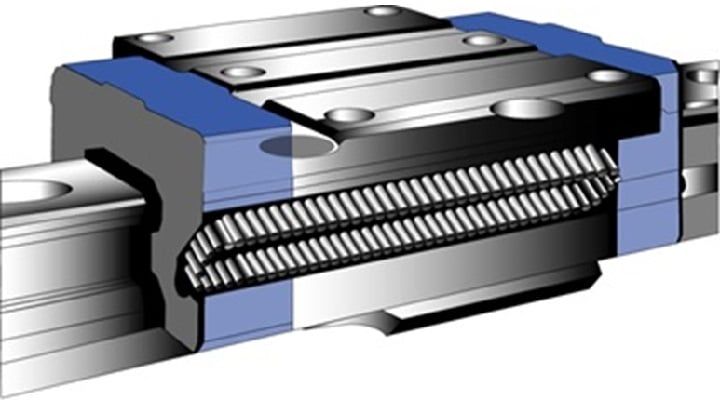

Roller guide
Roller guides equipped with all axes enable heavy cutting.

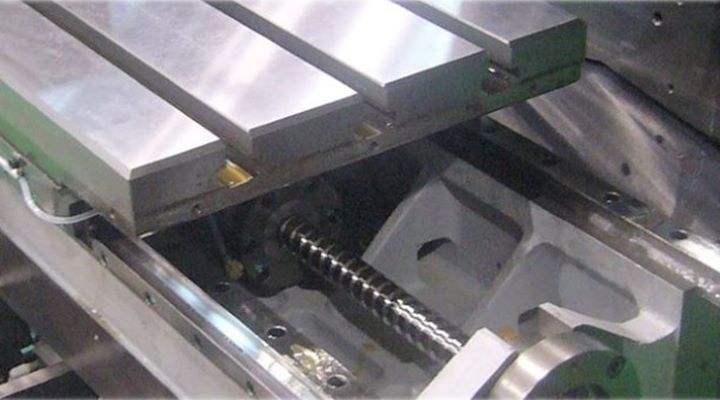

Large diameter ball screw
Large diameter ball screw realizes high rigidity.

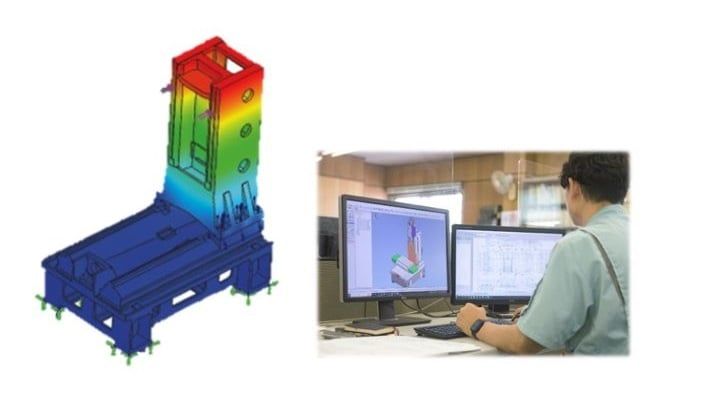

Structural analysis technology
The state-of-the-art structural analysis technology achieves an optimal structure.
【Suitable for production line, Wide fixture area】

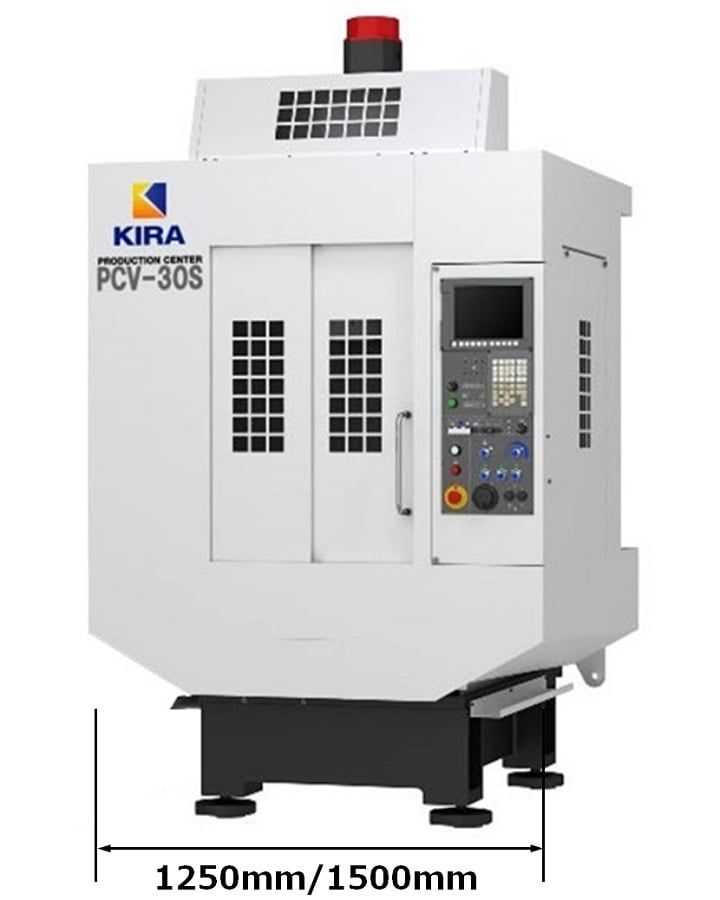

Compact design
Two machine widths, 1250mm or 1500mm, are available to save space and enable the construction of highly flexible production line layouts.

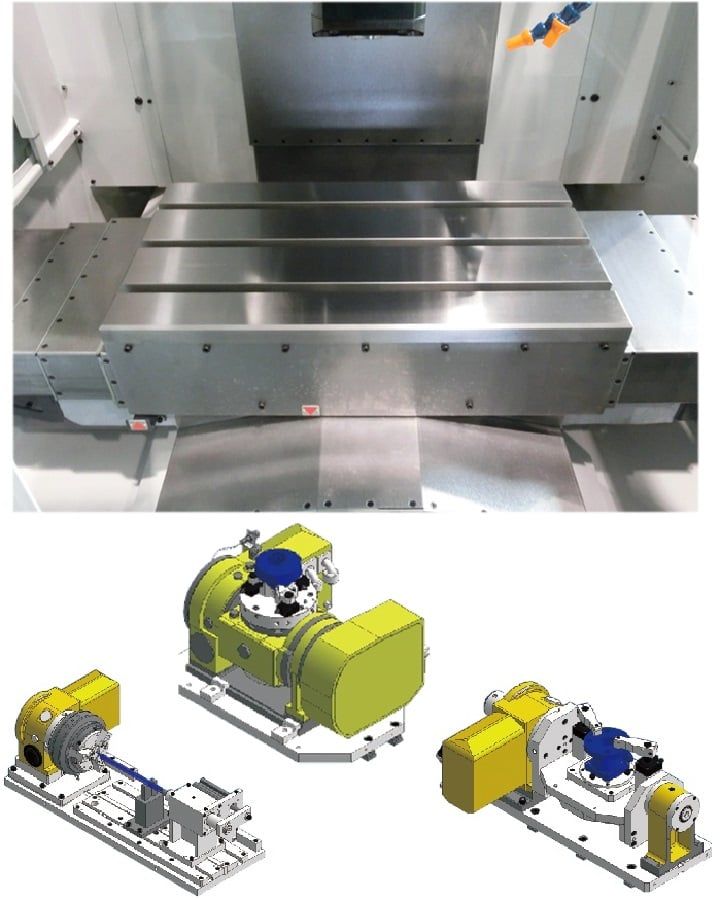

Wide fixture area
Wide fixture mounting area facilitates support for large fixtures.

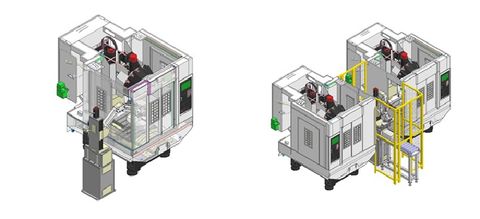

【Optimal automation package】
We offer two types of automation packages: gantry loaders and robots. We propose to easily introduce the most suitable automation to meet your needs. Furthermore, both can be controlled by CNC systems on the machine itself.

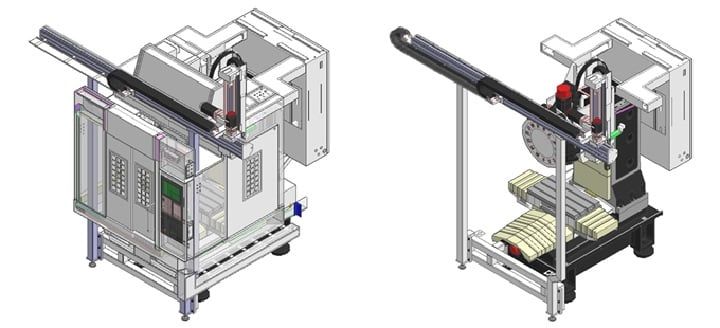

Pillarless gantry loader
Pillarless gantry loader is integrated with the main unit, making efficient use of installation space.
3-axis robot system
The 3-axis robot system enables easy teaching with the minimum number of axes required and a highly flexible automation layout.
【Specifications】 | ||
Capacity | X-axis stroke | 500mm |
Y-axis stroke | Automation type：400mm (machining area) +100mm (loading area) | |
Z-axis stroke | 300mm | |
Table | Table size | 660mm x 350mm |
Max. load capacity | 200kg (uniform load) | |
Spindle | Spindle speed | BB1 type： 50-10000min-1 (standard) |
CB type： 50-15000min-1 (high speed) | ||
DB type： 50-24000min-1 (ultra high speed) | ||
BB2 type： 50-10000min-1 (high rigidity) | ||
Taper | 7/24 taper No.30 | |
Feed rate | Rapid traverse (X,Y,Z) | 48m/min |
ATC | Tool shank | BT30 |
No. of tools | 15 tools (standard) | |
21 tools (option) | ||
Machine dimension | Machine height | 2320mm |
Floor space | Compact type： 1380mm x 2710mm | |
Standard type： 1500mm x 2710mm | ||
Mass of machine | Standard：Apporox. 2300kg | |
