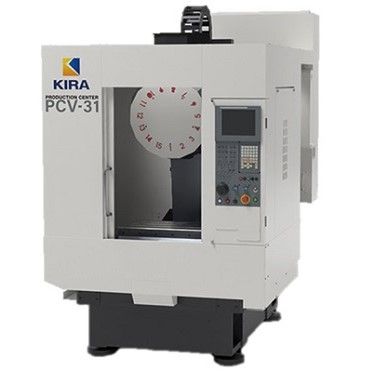

- #30 machine for cutting with extreme pursuit of high rigidity
- High-speed specification of rapid traverse 60m/min
- Perfect compact machine for automation line
【High rigidity】

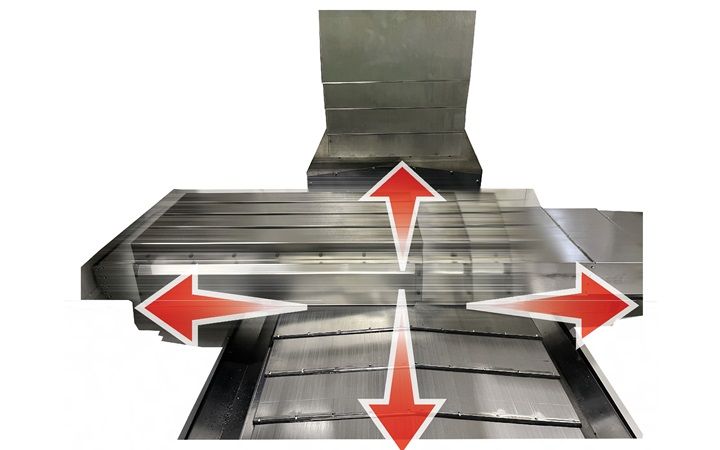

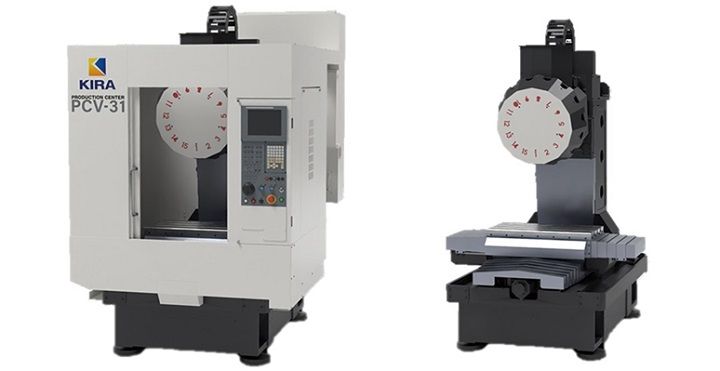

Machine frame
The highest level of rigidity has been secured against machining loads in all directions through structural analysis technology. In particular, the rigidity against lateral load has been improved by 50% compared to our own products.

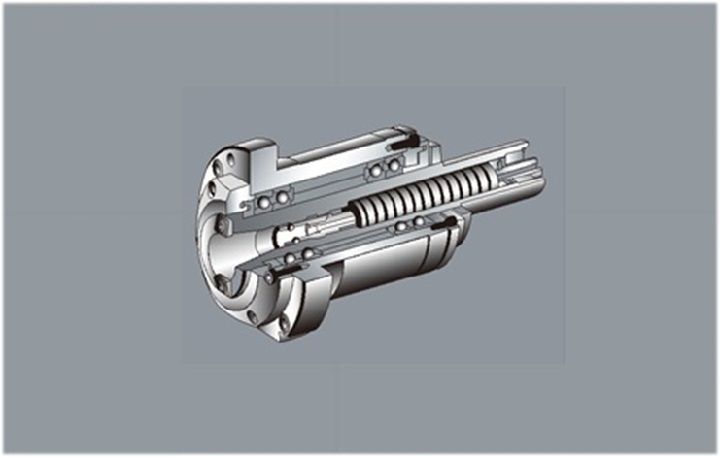

Spindle
Four types of spindles are available, from highly rigid types to ultra-high-speed types, allowing the selection of a spindle that best suits the machining needs.

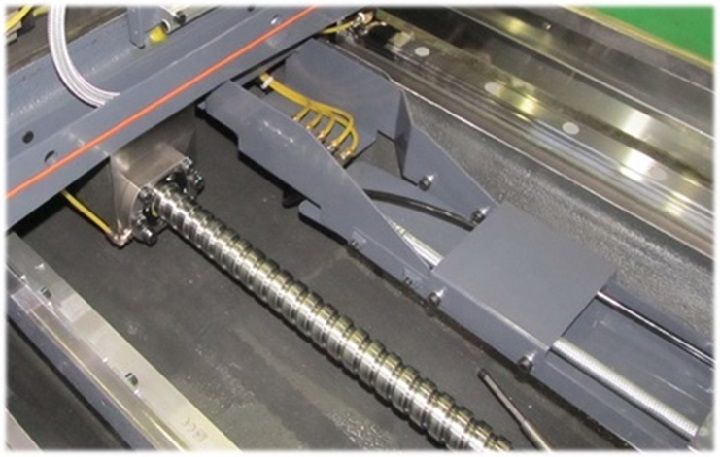

Axis structure
Further high rigidity is pursued by increasing the size of the linear guide and optimizing the support bearing configuration.
【Productivity】
Rapid traverse 60m/min
High-speed specification of 60m/min rapid traverse on each axis contributes to cycle time reduction.

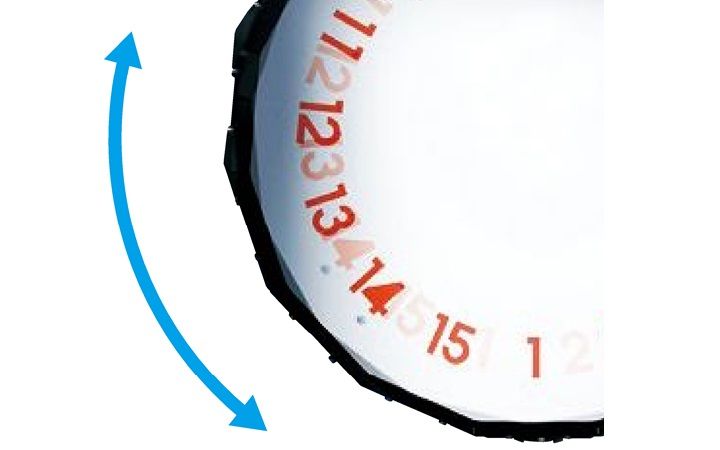

High-speed ATC
High-speed ATC device with a servo motor-driven reduces non-cutting time.
【Compact type, Suitable for production line】
Machine width 1500mm
Compact design contributes to save space.

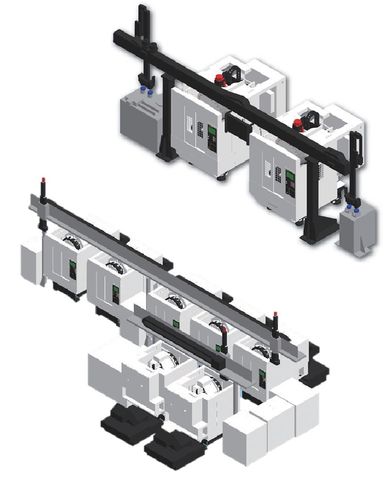

Compatible with automation
The line-compatible type is also fully compatible with automation.
【Specifications】 |
| |
Capacity | X-axis stroke | Standard：500mm |
Option：700mm | ||
Y-axis stroke | Standard：400mm | |
Automation type：400mm (machining area) +200mm (loading area) | ||
Z-axis stroke | 350mm | |
Table | Table size | 800mm x 400mm |
Max. load capacity | 330kg (standard / uniform load) | |
500kg (X700mmST type / uniform load) | ||
Spindle | Spindle speed | Standard： 10000min-1 (13/7.5/5.5/3.7kW) |
Middle speed： 12000min-1 (13/7.5/5.5/3.7kW) | ||
High speed： 15000min-1 (15/11/7.5/5.5kW) | ||
Ultra high speed： 24000min-1 (11/5.5/3.7/2.2kW) | ||
High rigidity： 8000min-1 (13/7.5/5.5/3.7kW) | ||
Taper | 7/24 taper No.30 | |
Feed rate | Rapid traverse (X,Y,Z) | 60m/min（Standard） |
56m/min（X700mmST type） | ||
ATC | Tool shank | BT30 |
No. of tools | 15 tools (standard) | |
21 tools (option) | ||
Machine dimension | Machine height | 2424mm |
Floor space | 1500mm x 2640mm（standard） | |
1800mm x 2640mm（X700mmST type） | ||
Mass of machine | Apporox. 2800kg（standard） | |
Apporox. 3000kg（X700mmST type） | ||
