- Uncompromising speeding up achieves high performance
- Compact base machine for production line
- Perfect base machine for automation
【Productivity】
Increased speed of each axis
Rapid traverse 56m/min
Axis acceleration
0.86G(X),0.73G(Y),0.7G(Z)
High-speed tool change system
T-T 1.8s / C-C 2.5s
【High performance】
Spindle
Direct drive
Spindle speed
Standard 10000min-1 (15/11/7.5/5.5kW)
High speed 15000min-1 (7.5kW/5.5kW)
Ultra high speed 20000min-1 (9/5.5/3.7kW)
High rigidity 6000min-1 (18.5/15/11/7.5kW)
Spindle diameter Φ70mm
Clamp force 8.8KN
Increased load rating of ball screws and linear guides
Table
Table size 800mm x 400mm
Capacity 500kg
【Compact design, Suitable for production line】

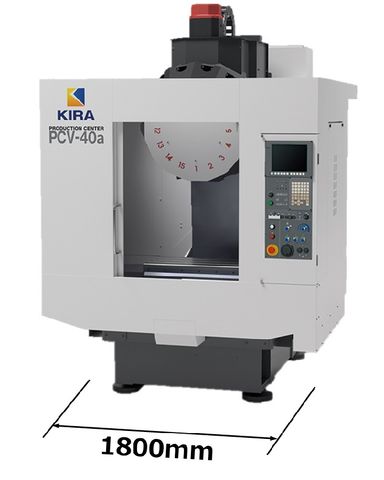

Machine width 1800mm
This #40 machine has a compact design that makes efficient use of factory space.
【Specifications】 | ||
Capacity | X-axis stroke | 700mm |
Y-axis stroke | standard：400mm | |
Automation type：400mm (machining area) +200mm (loading area) | ||
Z-axis stroke | 400mm | |
Table | Table size | 800mm x 400mm |
Max. load capacity | 500kg (uniform load) | |
Spindle | Spindle speed | Standard type： 160-10000min-1 (15/11/7.5/5.5kW) |
HIgh speed type： 160-15000min-1 (7.5/5.5kW) | ||
Ultra high speed type： 160-20000min-1 (9/5.5/3.7kW) | ||
High rigidity type： 160-6000min-1 (18.5/15/11/7.5kW) | ||
Taper | 7/24 taper No.40 | |
Feed rate | Rapid traverse (X,Y,Z) | 56m/min |
ATC | Tool shank | BT40 |
No. of tools | 15 tools | |
Machine dimension | Machine height | 2680mm |
Floor space | 1800mm x 2768mm | |
Mass of machine | Standard：Apporox. 3700kg | |
