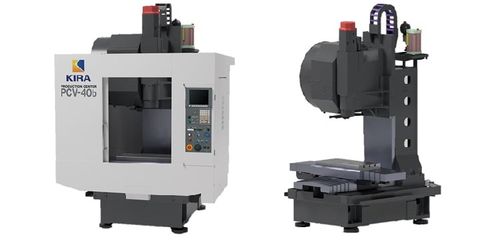

- Uncompromising speeding up achieves high performance
- Compact base machine for production line
- Perfect base machine for automation
【Productivity】
Increased speed of each axis
Rapid traverse 56m/min
Axis acceleration
0.86G(X),0.73G(Y),0.7G(Z)

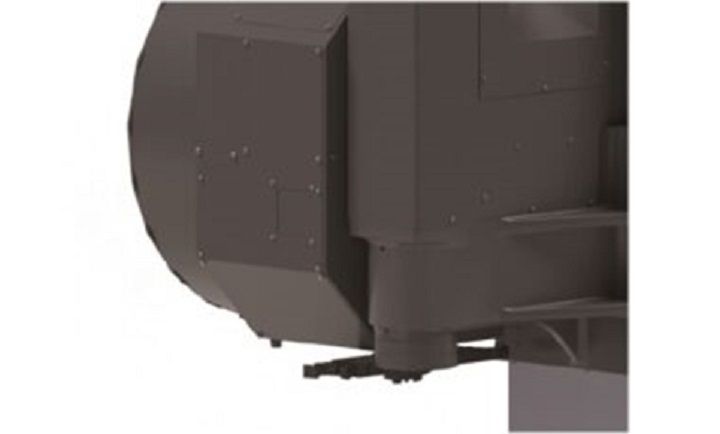

High-speed tool change system
T-T 1.2s / C-C 2.8s
【High performance】
Spindle
Direct drive
Spindle speed
Standard 10000min-1 (15/11/7.5/5.5kW)
High speed 15000min-1 (7.5kW/5.5kW)
Ultra high speed 20000min-1 (9/5.5/3.7kW)
High rigidity 6000min-1 (18.5/15/11/7.5kW)

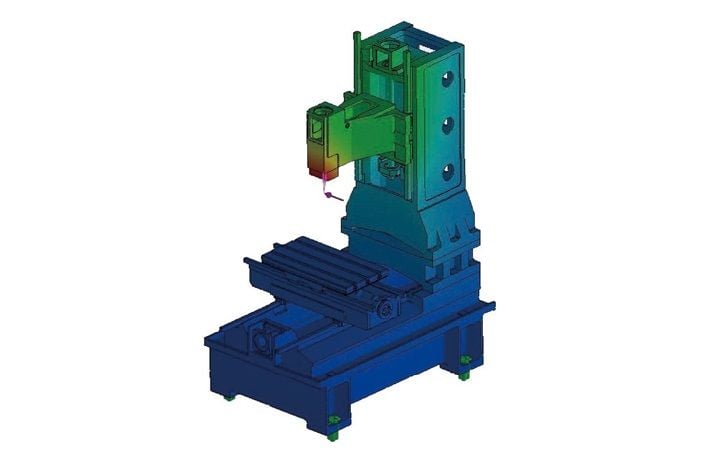

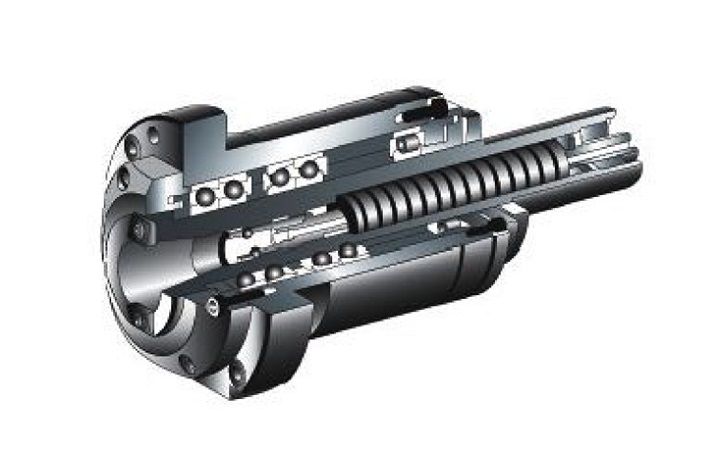

Rigidity
Spindle diameter Φ70mm
Clamp force 8.8KN
Increased load rating of ball screws and linear guides
Table
Table size 800mm x 400mm

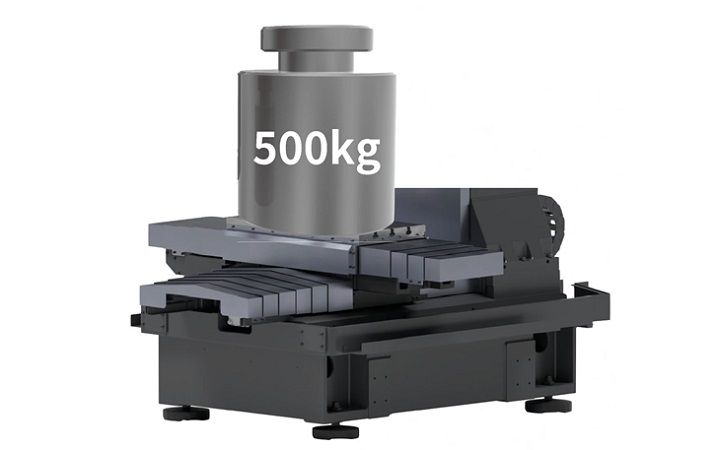

Capacity 500kg
【Hige Rigidity Type Spindle 1/4 reduction specification】

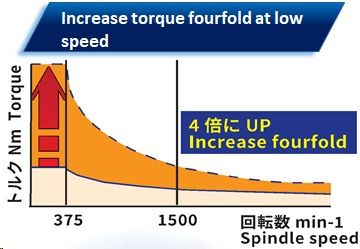

High rigidity and high torque specification installed 1/4 reduct ion gear to spindle.
Achieves heavy-duty cutting at low speed even with small machin ing center.

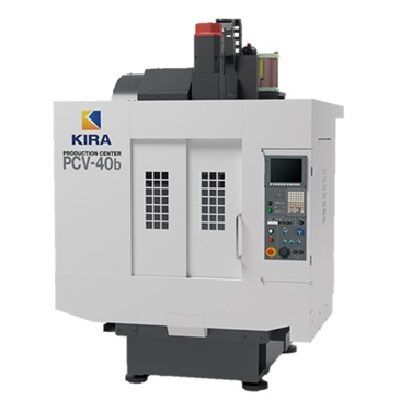

【Compact design, Suitable for production line】

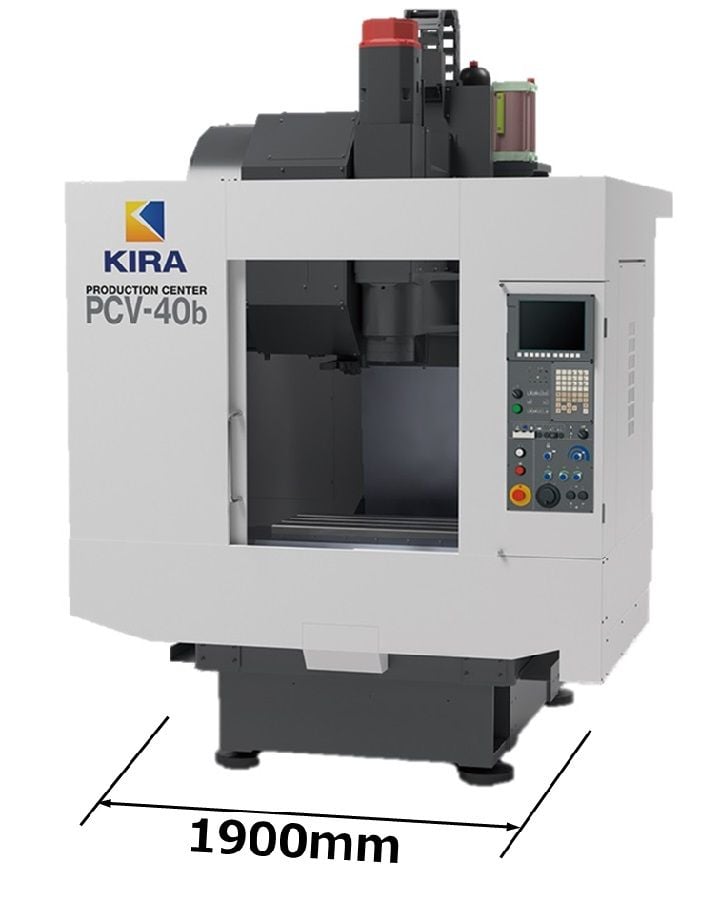

Machine width 1900mm
This #40 machine has a compact design that makes efficient use of factory space.
【Specifications】 | ||
Capacity | X-axis stroke | 700mm |
Y-axis stroke | Standard：400mm | |
Automation type：400mm (machining area) +200mm (loading area) | ||
Z-axis stroke | 400mm | |
Table | Table size | 800mm x 400mm |
Max. load capacity | 500kg (uniform load) | |
Spindle | Spindle speed | Standard： 160-10000min-1 (15/11/7.5/5.5kW) |
High speed： 160-15000min-1 (7.5/5.5kW) | ||
Ultra high speed： 160-20000min-1 (9/5.5/3.7kW) | ||
High rigidity： 160-6000min-1 (18.5/15/11/7.5kW) | ||
Taper | 7/24 taper No.40 | |
Feed rate | Rapid traverse (X,Y,Z) | 56m/min |
ATC | Tool shank | BT40 |
No. of tools | 24 tools (standard) | |
40 tools (option) | ||
Machine dimension | Machine height | 2680mm |
Floor space | 1900mm x 2768mm | |
Mass of machine | Standard：Apporox. 3700kg | |
