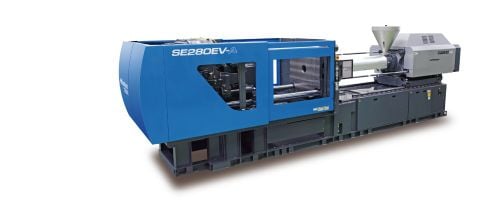

Increased specifications and modified and/or advanced design features can be found from end to end on the SE-EV-AHD:
ahdmoldareaTie bar spacing was increased by an average of 8% in the traverse direction and 15% in the longitudinal direction compared with the predecessor SE-HDZ Series, and is the highest among machines of the same class. The square configuration of the tie bar spacing also allows molds to be loaded from the side.
Bushing-free tie bars keep the mold area clean and free of grease
The mold opening stroke is 25 mm wider than the SE-HDZ and the mold thickness range can be optionally extended by 100 mm for all model sizes and 200 mm for some model sizes
The ejector stroke is 220 mm for all model sizes, and is the largest among all machines of the same class
A stronger, more rigid frame construction has increased the allowable maximum mold weight by an average of 22% compared with the SE-HDZ
The new linear guidance system is supplied as a standard feature to ensure that even heavy molds open and close smoothly and parallelism is maintained
The improved Double Center Press Platen (DCPP) design further reduces surface pressure inconsistencies inside the mold by 15%
The Clamp Force Feedback Control system automatically compensates for any thermal expansion of the mold
The series is available with larger injection units with higher duty motors and drives capable of higher and longer peak injection pressures. Hold pressures, up to 33,359 psi (2345 kgf/cm2) exactly match injection pressures, and all models are equipped to deliver full power for up to 40% of the cycle.
For added application flexibility, an optional high-duty filling specification for thin-wall products raises the maximum injection speed to 220 mm/s
NC10A greater choice of screw diameters is provided including large diameter screws up to 90 mm (dependent on injection unit size)
The high-contact-force (nozzle touch) system, with selectable settings of 4.5, 5.6 and 6.7 tons, is equal to a hydraulic or hybrid machine and ensures compatibility with various mold types (hot runner, cold runner, floating sprue bushings, etc.)
NC-10 control improved with wider viewing angle and increased touchscreen sensitivity
