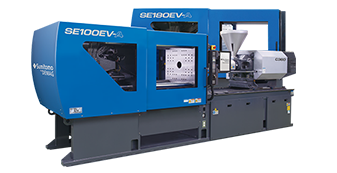

The SE-EV-A delivers high performance across a wide range of applications with specifications and design features that include:
Sumitomo’s advanced motor technology for high injection power (torque) and velocity, with injection speeds up to 500 mm/s and injection and matching hold pressures up to 41,191 psi (2897 kgf/cm2)linguide2
The new linear guidance system is supplied as a standard feature to ensure that even heavy molds open and close smoothly and parallelism is maintained
A high-contact-force (nozzle touch) system, with selectable settings of 4.5, 5.6 and 6.7 tons, that is equal to a hydraulic or hybrid machine and ensures compatibility with various mold types (hot runner, cold runner, floating sprue bushings, etc.)
Bushing-free tie bars that keep the mold area clean and free of grease, making the SE-EV-A ideally suited for medical molding applications
The Center Press Platen design reduces surface pressure inconsistencies inside the mold
The Clamp Force Feedback Control system automatically compensates for any thermal expansion of the mold
