Mô tả sản phẩm
- 2 turret / 2 spindle configuration for significantly reduced cycle time
- Easy programing of balance cutting and simultaneous left and right machining with the conversational MAZATROL program
- Long-term automatic operation enabled by optional bar feeders, work loaders, and other automation options

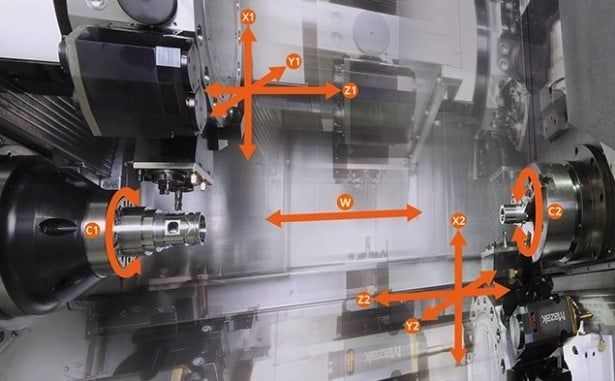

- Simultaneous machining with upper and lower turret to significantly reduce cycle time

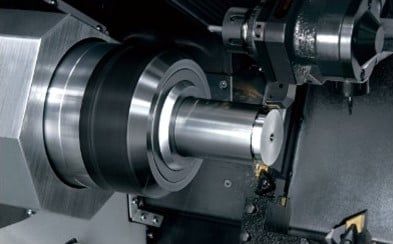

- Balanced turning on main spindle

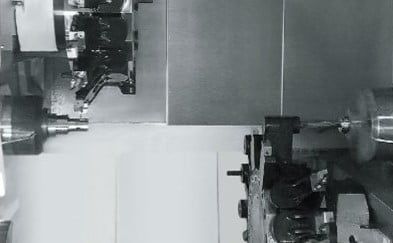

- Simultaneous machining of two workpieces

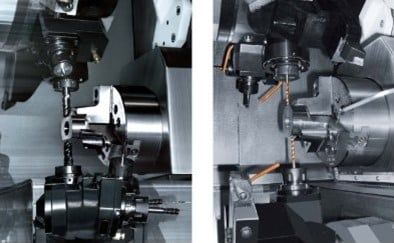

- Balanced milling on second spindle
- Cut-off

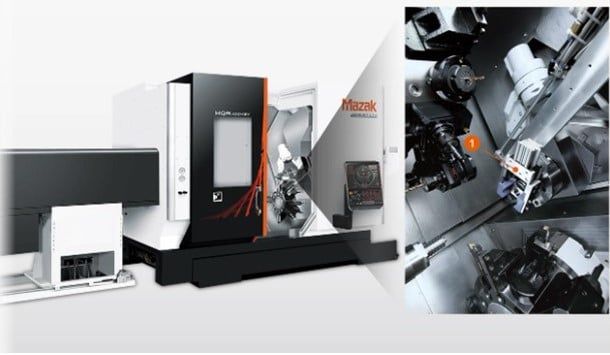

- Bar feeder and workpiece unloader

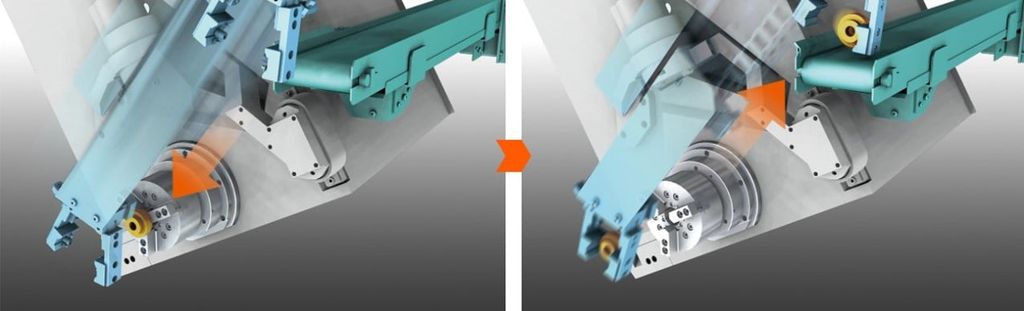

Effective operation from bar material to finished workpiece. By using a workpiece unloader instead of the auto parts catcher, the workpiece is removed from the machine without damaging the high-quality finished surface.
| Category | Item | HQR-100MSY |
| Capacity | Max. swing | ø320 mm/ø270 mm |
| Max. machining diameter | ø300 mm/ø172 mm | |
| Distance between chuck jaw faces (both spindles) | 620 mm | |
| ø51 mm | |
| Travel | X axis | 175 mm/111 mm |
| Y axis | 100 (±50) mm/100 (±50) mm | |
| Z axis | 520 mm/580 mm | |
| Main spindle | Chuck size | 6 inch |
| Max. spindle speed | 6000 rpm | |
| Second spindle | Chuck size | 6 inch |
| Max. spindle speed | 6000 rpm | |
| Upper/lower turret | Number of tools | 12 |
| Turning tool shank | 20 mm | |
| Boring bar shank diameter | ø32 mm | |
| Turret indexing time | 0.2 s/step | |
| Rotary tool spindle | Spindle speed | 6000 rpm |
| Feedrate (upper/lower turret) | Rapid traverse rate: X axis | 30000 mm/min/24000 mm/min |
| Rapid traverse rate: Y axis | 26000 mm/min/20000 mm/min | |
| Rapid traverse rate: Z axis | 40000 mm/min/40000 mm/min |
