Mô tả sản phẩm

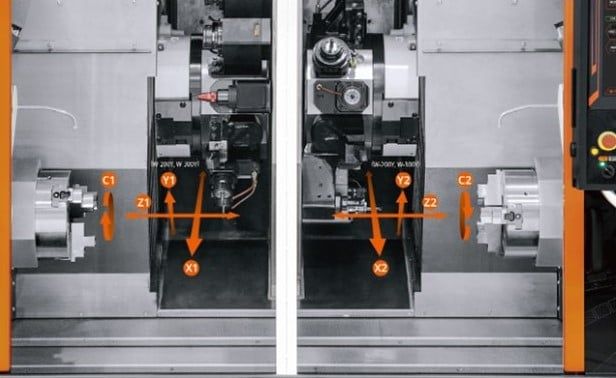

- Symmetrical spindle and turret

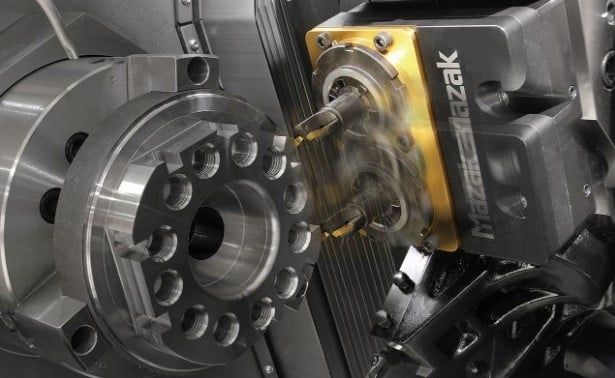

- Y-axis ideal for multi-tasking

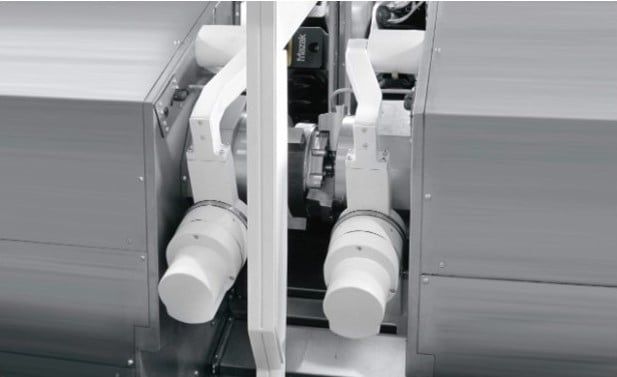

- Continuous machining with automatic workpiece transfer
- Automatic partition for independent machining in both areas

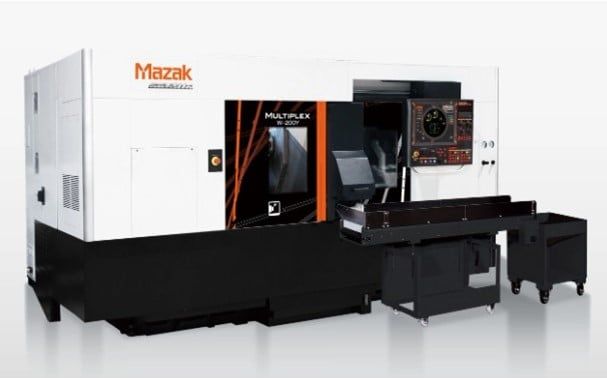

- Automatic unload system

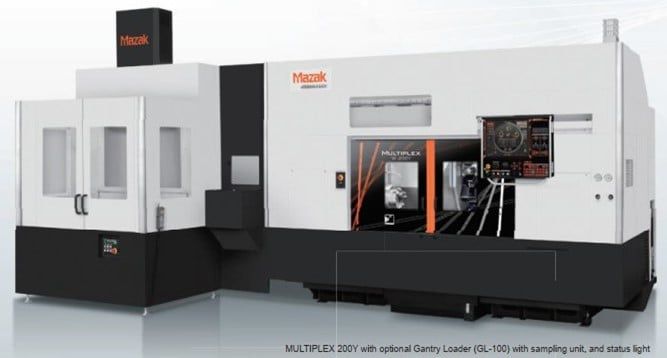

- Gantry Loader system
| Machine | W-200, W-200Y | ||
| Type of Gantry loader |
| GL-150 | |
| Workpiece dia. | 20 ~ 200 mm | 20 ~ 200 mm | |
| Max. load weight | 10 kg x 2 | 15 kg x 2 | |
*SPECIFICATIONS:
| Category | Item | MULTIPLEX W-200 | MULTIPLEX W-200Y |
|---|---|---|---|
| Capacity | Max. swing | Φ320 mm | Φ320 mm |
| Max. machining diameter | Φ320 mm | Φ320 mm | |
| Max. machining length | 180 mm | 180 mm | |
| Bar work capacity | Φ65 mm | Φ65 mm | |
| Travel | X-axis | 275 mm | 275 mm |
| Z-axis | Z1: 490 mm Z2: 525 mm | Z1: 490 mm Z2: 525 mm | |
| Y-axis | – | ±50 | |
| C-axis | 360° | 360° | |
| Spindle | Chuck size | 8" | 8" |
| Number of spindles | 2 | 2 | |
| Speed*2 | 5000 rpm | 5000 rpm | |
| Spindle nose / spindle bore | A2-6 / Φ76 mm | A2-6 / Φ76 mm | |
| Turret | Number of turrets | 2 | 2 |
| Number of tools | 12 position drum turret × 2 | 12 position drum turret × 2 | |
| Tool shank height | 25 mm | 25 mm | |
| Boring bar shank diameter | 40 mm | 40 mm | |
| Turret indexing time | 0.23 sec / 1step | 0.23 sec / 1step | |
| Rotary tool spindle | Speed | 5000 rpm | 5000 rpm |
| Feedrate | Rapid traverse rate : X-axis | 35000 mm/min | 35000 mm/min |
| Rapid traverse rate : Y-axis | – | 15000 mm/min | |
| Rapid traverse rate : Z-axis | 42000 mm/min | 42000 mm/min | |
| Rapid traverse rate : C-axis | 555 rpm | 555 rpm |
