Mô tả sản phẩm
- Symmetrical spindle and turret

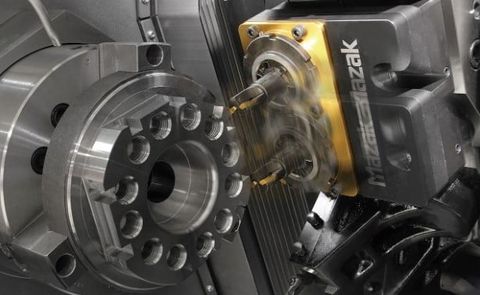

- Y-axis ideal for multi-tasking
- Continuous machining with automatic workpiece transfer

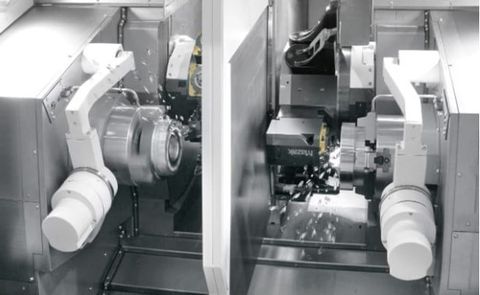

- Automatic partition for independent machining in both areas
- Automatic unload system
- Gantry Loader system
| Machine | W-300, W-300Y | ||
| Type of gantry loader | GL-200 | GL-300 | GL-400 |
| Workpeice dia. | 50 ~ 300 mm | 50 ~ 300 mm | 50 ~ 350 mm |
| Max. load weight | 20 kg x 2 | 30 kg x 2 | 40 kg x 2 |
*SPECIFICATIONS:
| Category | Item | MULTIPLEX W-300 | MULTIPLEX W-300Y |
|---|---|---|---|
| Capacity | Max. swing | Φ430 mm | Φ430 mm |
| Max. machining diameter | Φ430 mm | Φ430 mm | |
| Max. machining length | 225 mm | 225 mm | |
| Bar work capacity | Φ80 mm | Φ80 mm | |
| Travel | X-axis | 310 mm | 310 mm |
| Z-axis | Z1: 615 mm Z2: 615 mm | Z1: 615 mm Z2: 615 mm | |
| Y-axis | – | ±77 | |
| C-axis | 360° | 360° | |
| Spindle | Chuck size | 10" | 10" |
| Number of spindles | 2 | 2 | |
| Speed*2 | 4000 rpm | 4000 rpm | |
| Spindle nose / spindle bore | A2-8 / Φ91 mm | A2-8 / Φ91 mm | |
| Turret | Number of turrets | 2 | 2 |
| Number of tools | 12 position drum turret × 2 | 12 position drum turret × 2 | |
| Tool shank height | 25 mm | 25 mm | |
| Boring bar shank diameter | 50 mm | 50 mm | |
| Turret indexing time | 0.24 sec / 1step | 0.24 sec / 1step | |
| Rotary tool spindle | Speed | 5000 rpm | 5000 rpm |
| Feedrate | Rapid traverse rate : X-axis | 30000 mm/min | 30000 mm/min |
| Rapid traverse rate : Y-axis | – | 14000 mm/min | |
| Rapid traverse rate : Z-axis | 28000 mm/min | 28000 mm/min | |
| Rapid traverse rate : C-axis | 555 rpm | 555 rpm |
