MAZAK - CNC TURNING CENTER - POWER MASTER SERIES

Increase manufacturing efficiency with machines capable of heavy duty machining for large-diameter, long shaft workpieces

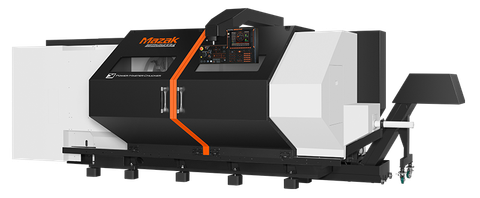

• POWER MASTER Chucker

Maximum machining diameter: Φ1000 mm

Octagonal disc turret for heavy duty machining

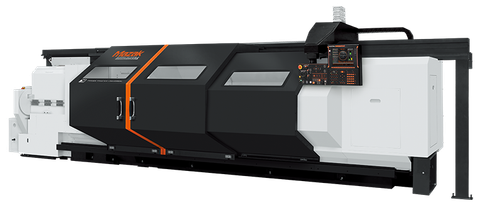

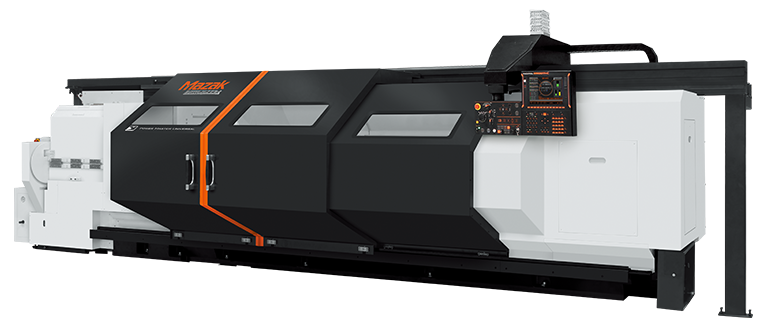

• POWER MASTER Universal

High efficiency machining of long shaft workpieces

Octagonal disc turret + 6-tool hexagonal boring turret for exceptional versatility

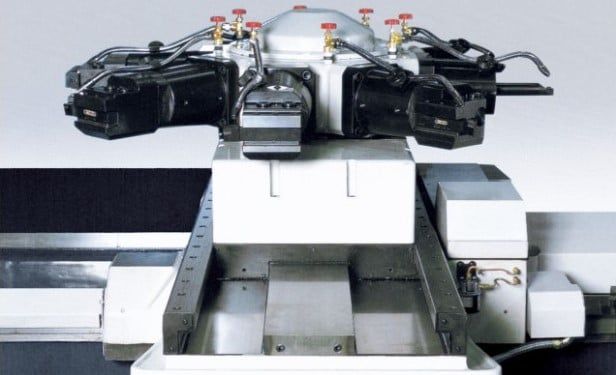

• Octagonal boring turret (POWER MASTER Chucker)

This turret design boasts a maximum machining diameter of Φ1000 mm. This machining diameter of Φ1000 mm for the standard indexing tooling is the largest in this class. Turret indexing speed is only 3.2 seconds per step, which can contribute in significantly reducing your machining time

• Octagonal disc turret + 6-tool hexagonal boring turret (POWER MASTER Universal)

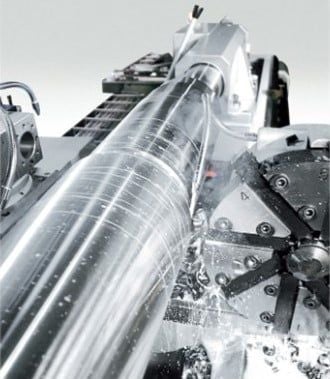

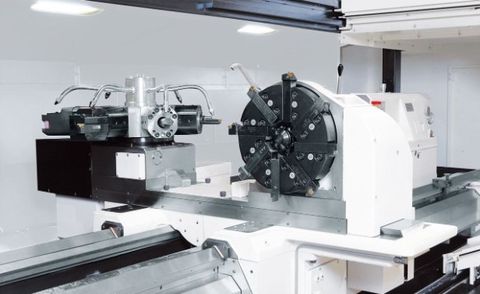

The front 8-station disc turret can mount 8 tools of 32 mm × 32 mm × 160 mm and the rear turret can mount 6 tools (Inside / outside diameters and facing tool holders)

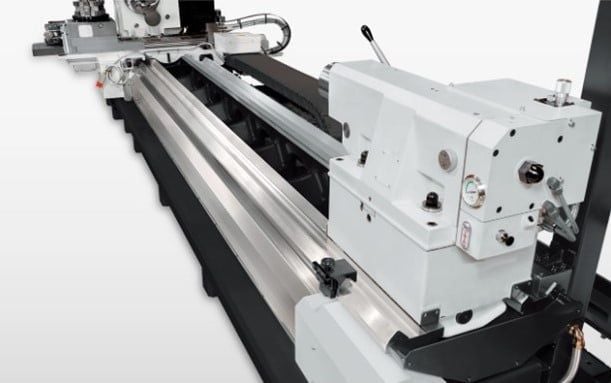

• High rigidity bed

The wide machine base is a rigid foundation for heavy duty machining due to the reinforced ribs. The slide way is a equal angle V-shape with high, long-lasting rigidity that is created with heat treatment and precise grinding finish.
Additionally, machined chips are smoothly removed from the machining area by the inclined chutes in the machine bed.

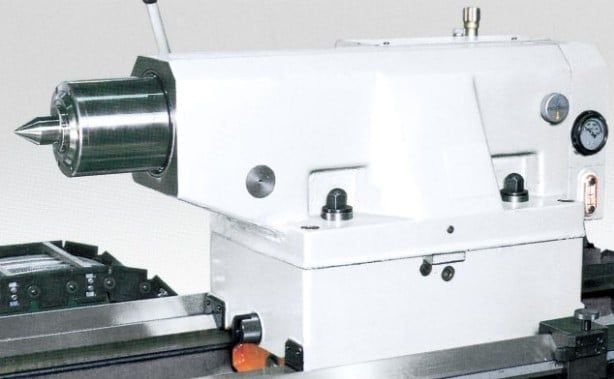

• Highly rigidity tailstock. Compatible with POWER MASTER Universal only

The tailstock has a large 150 mm diameter quill with built-in MT No.5 center. The tailstock is clamped to the bed with 12-tons of force and can support workpieces up to 3-tons.

*SPECIFICATIONS:

Category	Item	Chucker	Universal 3000U	Universal 4000U
Capacities	Swing over bed	Φ870 mm	Φ870 mm	Φ870 mm
	Swing over carriage	Φ920 mm	Φ840 mm	Φ840 mm
	Max. machining diameter	Φ1000 mm	Φ840 mm	Φ840 mm
	Max. machining length	1055 mm	2985 mm	4005 mm
	Swing over gap	Φ1070 mm	–	–
Travel	X-axis stroke	635 mm	670 mm	670 mm
	Z-axis stroke	1170 mm	3075 mm	4095 mm
Turret	Type of turret	8-tool turret	8-tool disk turret & 6-tool turret	8-tool disk turret & 6-tool turret
Traverse rate	Rapid traverse rate	X: 12000 mm/min Z: 12000 mm/min	X: 12000 mm/min Z: 12000 mm/min	X: 12000 mm/min Z: 12000 mm/min
Tailstock	Diameter of tailstock quill	–	Φ150 mm	Φ150 mm
	Tailstock center	–	MT. No.5	MT. No.5

Spindle (Chucker and Universal)

Spindle speed	1200 rpm	750 rpm*	500 rpm*
Spindle nose	A2-11	A2-15*	A2-20*
Spindle bore	Φ118 mm	Φ260 mm*	Φ320 mm*, Φ375 mm*

*Option
