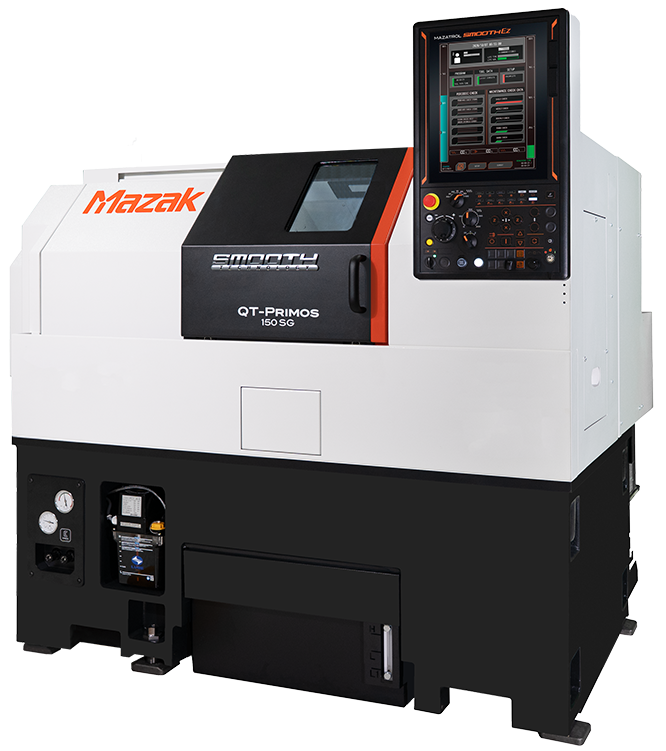

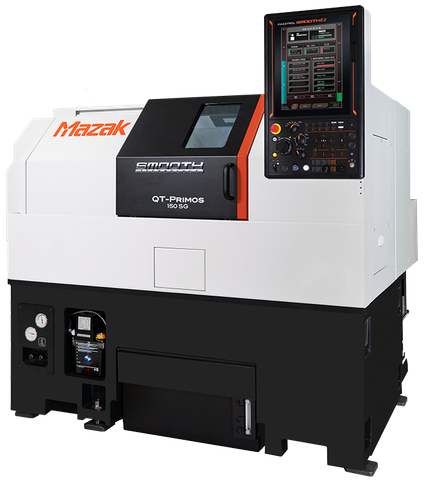

Mô tả sản phẩm

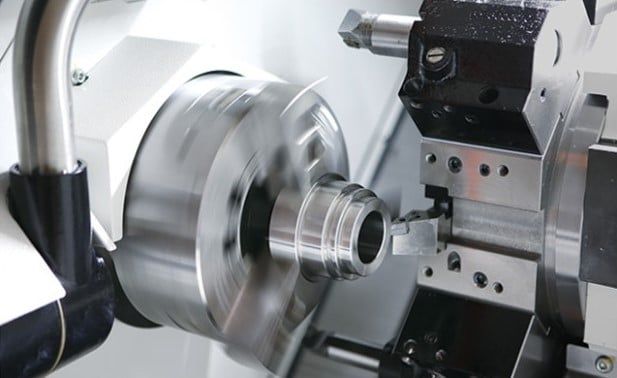

- Built-in motor spindle for high-accuracy, high-speed machining

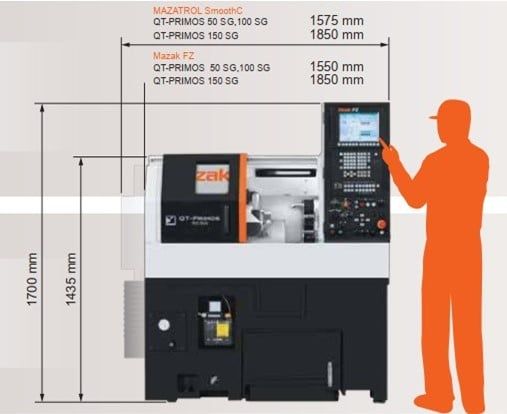

- Less floor space
Compact automation options to suit your production style

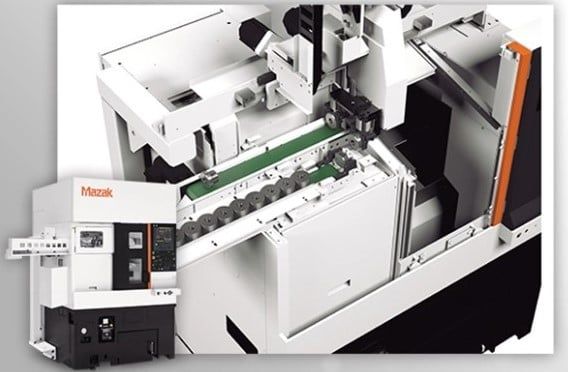

Quick Loader (Compact floor space automation system)

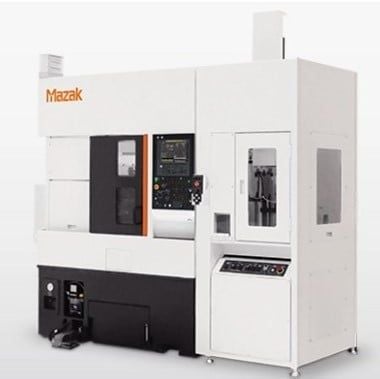

Gantry Loader
| Category | Item | 50 SG | 100 SG | 150 SG |
|---|---|---|---|---|
| Capacity | Universal | 200U | 200U | 250U |
| Max. swing | Φ444 mm | Φ444 mm | Φ580 mm | |
| Max. machining diameter | Φ180 mm | Φ180 mm | Φ250 mm | |
| Machining diameter | Φ180 mm | Φ180 mm | Φ250 mm | |
| Max. machining length | 204 mm | 200 mm | 264 mm | |
| Bar work capacity | Φ32 mm | Φ36 mm | Φ51 mm | |
| Travel | X-axis | 110 mm | 110 mm | 140 mm |
| Z-axis | 240 mm | 240 mm | 305 mm | |
| Spindle | Chuck size | 5" | 6" | 8" |
| Spindle speed | 5000 rpm | 5000 rpm | 4000 rpm | |
| Spindle nose | Φ140 mm | Φ140 mm | Φ170 mm | |
| Spindle bore | Φ45 mm | Φ45 mm | Φ61 mm | |
| Turret | Turret type | 8 position drum turret | 8 position drum turret | 8 position drum turret |
| Number of tools | 8 | 8 | 8 | |
| Tool shank height | 20 mm | 20 mm | 25 mm | |
| Boring bar shank diameter | Φ20 mm | Φ25 mm | Φ32 mm | |
| Turret indexing time (one position) | 0.2 sec | 0.2 sec | 0.2 sec | |
| Feedrate | Rapid traverse rate: X-axis | 30000 mm/min | 30000 mm/min | 30000 mm/min |
| Rapid traverse rate: Z-axis | 30000 mm/min | 30000 mm/min | 30000 mm/min | |
| Tailstock (Option) | Positioning | Manual | Manual | Manual |
| Tailstock center | MT-No.3 (dead centre) | MT-No.3 (dead centre) | MT-No.4 (dead centre) |
