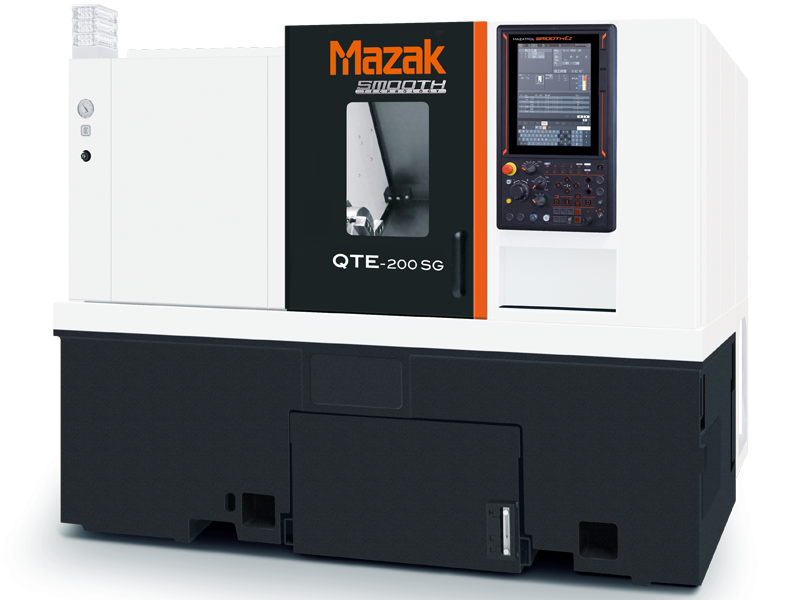

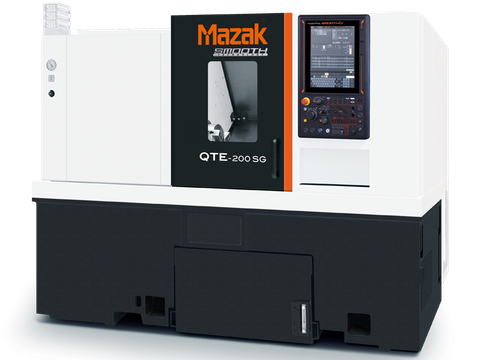

Mô tả sản phẩm

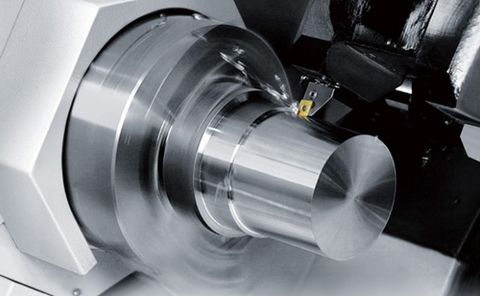

- Built-in motor for high cutting capacity
- Support of a wide range of specifications allows selection of models per production
Milling specification: High-accuracy milling available

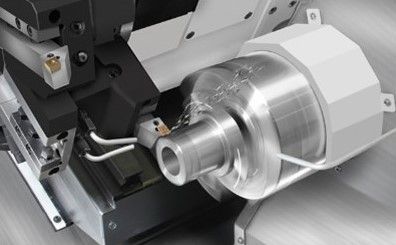

Second spindle: Continuous machining from workpiece delivery to the 2nd process is possible

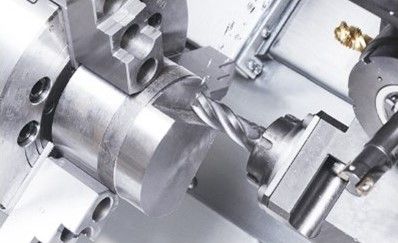

Y-axis specification: Can enable multi-task machining
- A variety of optional automation equipment can be chosen to increase productivity
Ez LOADER
Ez LOADER, which uses a dedicated software, eliminates the need for complicated robot teaching tasks. It can be easily set up by anyone and also flexibly adapts to any changes in the floor layout. Only MAZATROL SmoothEz is supported.
Gantry Loader
This system will easily make long-hour automatic operation possible with high speed / high accuracy workpiece loading/unloading. Different specification work loader hands and work conveyors are available to meet a wide range of production requirements.
*SPECIFICATIONS:
| Specifications | QTE-200 SG | QTE-200M SG | QTE-200MY SG | QTE-200MS SG | QTE-200MSY SG | |
|---|---|---|---|---|---|---|
| Capacity | Maximum swing | 580 mm | 695 mm 728 mm | 695 mm 728 mm | 695 mm | 695 mm |
| Maximum machining diameter | 350 mm | 340 mm | 340 mm | 340 mm | 340 mm | |
| Maximum bar work capacity | 51 mm | 65 mm | 65 mm | 65 mm | 65 mm | |
| Maximum machining length | 285 mm 520 mm | 535 mm 1085 mm | 535 mm 1085 mm | – | – | |
| Distance between chuck top jaw faces | – | – | – | 575 mm | 575 mm | |
| Main spindle | Chuck size | 8 inch | 8 inch | 8 inch | 8 inch | 8 inch |
| Maximum speed | 5000 rpm | 5000 rpm | 5000 rpm | 5000 rpm | 5000 rpm | |
| Second spindle | Chuck size | – | – | – | 6 inch | 6 inch |
| Maximum speed | – | – | – | 6000 rpm | 6000 rpm | |
| Turret (Upper) | Number of tools | 8 | 12 | 12 | 12 | 12 |
| Maximum speed | – | 4500 rpm | 4500 rpm | 4500 rpm | 4500 rpm | |
| Feed axes | Travel (X axis) | 195 mm | 215 mm | 215 mm | 215 mm | 215 mm |
| Travel (Y axis) | – | – | 100 mm | – | 100 mm | |
| Travel (Z axis) | 325 mm 560 mm | 605 mm 1155 mm | 605 mm 1155 mm | 605 mm | 605 mm |
