Mô tả sản phẩm

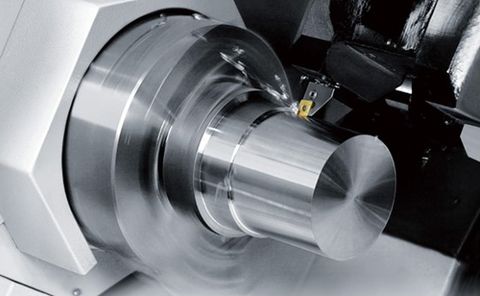

- Built-in motor for high cutting capacity
- Support of a wide range of specifications allows selection of models per production
Milling specification: High-accuracy milling available
Second spindle: Continuous machining from workpiece delivery to the 2nd process is possible
Y-axis specification: Can enable multi-task machining
*SPECIFICATIONS:
| Specifications | QTE-300 SG | QTE-300M SG | QTE-300MY SG | QTE-300MS SG | QTE-300MSY SG | |
|---|---|---|---|---|---|---|
| Capacity | Maximum swing | 695 mm | 695 mm 728 mm | 695 mm 728 mm | 695 mm | 695 mm |
| Maximum machining diameter | 390 mm | 340 mm | 340 mm | 340 mm | 340 mm | |
| Maximum bar work capacity | 77 mm | 80 mm | 80 mm | 80 mm | 80 mm | |
| Maximum machining length | 554 mm 1064 mm | 505 mm 1055 mm | 505 mm 1055 mm | – | – | |
| Distance between chuck top jaw faces | – | – | – | 540 mm | 540 mm | |
| Main spindle | Chuck size | 10 inch | 10 inch | 10 inch | 10 inch | 10 inch |
| Maximum speed | 4000 rpm | 4000 rpm | 4000 rpm | 4000 rpm | 4000 rpm | |
| Second spindle | Chuck size | – | – | – | 6 inch | 6 inch |
| Maximum speed | – | – | – | 6000 rpm | 6000 rpm | |
| Turret (Upper) | Number of tools | 8 | 12 | 12 | 12 | 12 |
| Maximum speed | – | 4500 rpm | 4500 rpm | 4500 rpm | 4500 rpm | |
| Feed axes | Travel (X axis) | 215 mm | 215 mm | 215 mm | 215 mm | 215 mm |
| Travel (Y axis) | – | – | 100 mm | – | 100 mm | |
| Travel (Z axis) | 605 mm 1120 mm | 605 mm 1155 mm | 605 mm 1155 mm | 605 mm | 605 mm |
