Mô tả sản phẩm

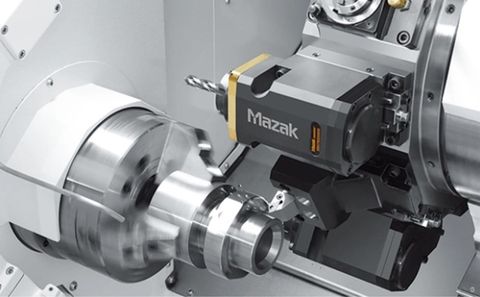

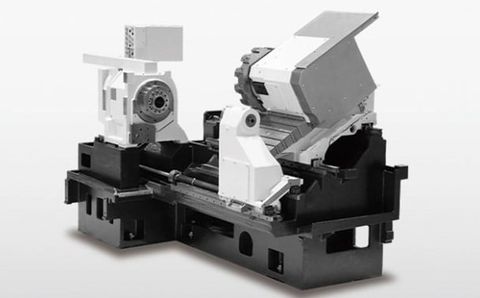

- Built-in motor spindle and high rigidity machine construction provide unsurpassed performance
- Turning, milling, Y-axis and second spindle specifications designed to meet your production requirements
A variety of optional automation equipment to increase productivity

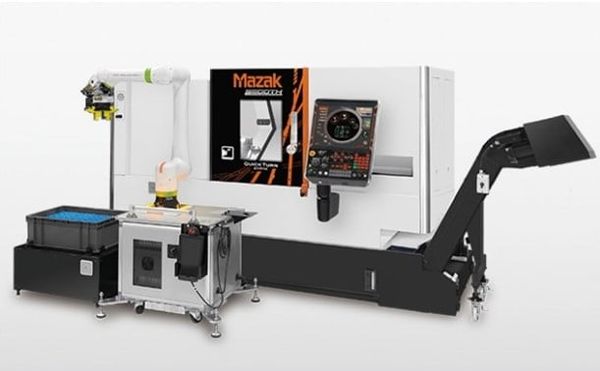

Ez LOADER
Ez LOADER is a space-saving automation system with collaborative robots. With the specialized software, Ez LOADER eliminates tedious robot teaching tasks and can be easily set up by anyone.
Gantry Loader System
The unique structure of the gantry loader system provides unparalleled flexibility, enabling positioning conveyors on its left and right, adding measuring instruments, and connecting two machines. By adding automatic door and robot interfaces, the gantry loader can be retrofit on already installed machines.

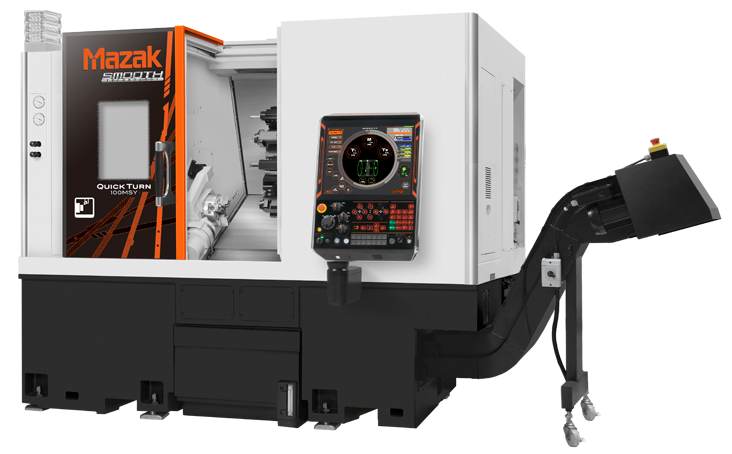

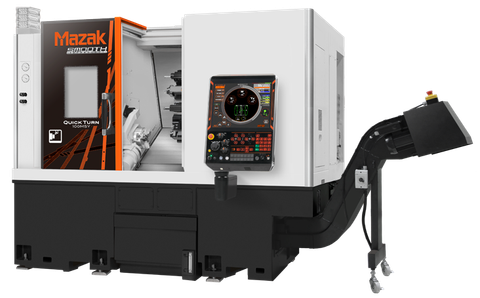

*SPECIFICATIONS:
| Specifications | QUICK TURN 100 SG | QUICK TURN 100M SG | QUICK TURN 100MS | QUICK TURN 100MY | QUICK TURN 100MSY | |
|---|---|---|---|---|---|---|
| Capacity | Maximum swing | 580 mm | 580 mm | 550 mm | 550 mm | 550 mm |
| Maximum machining diameter | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm | |
| Maximum bar work capacity | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | |
| Maximum machining length | 309 mm | 430 mm | 409 mm | 340 mm | 409 mm | |
| Main spindle | Chuck size | 6 inch | 6 inch | 6 inch | 6 inch | 6 inch |
| Maximum speed | 6000 rpm | 6000 rpm | 6000 rpm | 6000 rpm | 6000 rpm | |
| Second spindle | Chuck size | – | – | 5 inch | – | 5 inch |
| Maximum speed | – | – | 6000 rpm | – | 6000 rpm | |
| Turret (Upper) | Number of tools | 12 | 12 | 12 | 12 | 12 |
| Maximum speed | – | 4500 rpm | 5000 rpm | 5000 rpm | 5000 rpm | |
| Feed axes | Travel (X axis) | 200 mm | 190 mm | 187 mm | 187 mm | 187 mm |
| Travel (Y axis) | – | – | – | 100 mm | 100 mm | |
| Travel (Z axis) | 340 mm | 515 mm | 510 mm | 440 mm | 510 mm | |
| Travel (W axis) | – | – | 460 mm | – | 460 mm |
