Mô tả sản phẩm

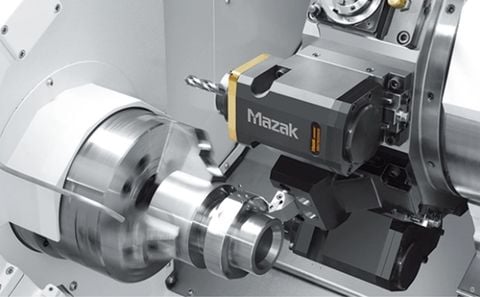

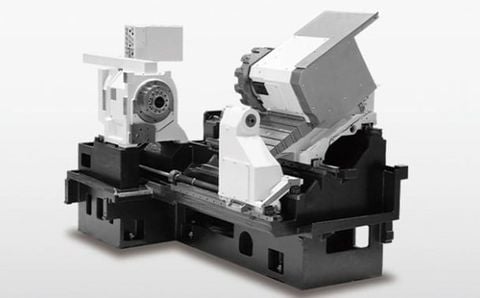

- Built-in motor spindle and high rigidity machine construction provide unsurpassed performance
- Turning, milling, Y-axis and second spindle specifications designed to meet your production requirements
*SPECIFICATIONS:
| Specifications | QUICK TURN 300 | QUICK TURN 300MA | QUICK TURN 300MB | QUICK TURN 300MY | QUICK TURN 300MSY | |
|---|---|---|---|---|---|---|
| Capacity | Maximum swing | 720 mm | 720 mm | 830 mm | 830 mm | 830 mm |
| Maximum machining diameter | 420 mm | 420 mm | 420 mm | 430 mm | 430 mm | |
| Maximum bar work capacity | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | |
| Maximum machining length | 662 mm 1282 mm 1597 mm | 662 mm 1282 mm 1597 mm | 652 mm 1247 mm 1587 mm | 658 mm 1253 mm 1593 mm | – | |
| Main spindle | Chuck size | 10 inch | 10 inch | 10 inch | 10 inch | 10 inch |
| Maximum speed | 4000 rpm | 4000 rpm | 4000 rpm | 4000 rpm | 4000 rpm | |
| Second spindle | Chuck size | – | – | – | – | 8 inch |
| Maximum speed | – | – | – | – | 5000 rpm | |
| Turret (Upper) | Number of tools | 12 | 12 | 12 | 12 | 12 |
| Maximum speed | – | 5000 rpm | 5000 rpm | 5000 rpm | 5000 rpm | |
| Feed axes | Travel (X axis) | 240 mm | 265 mm | 270 mm | 270 mm | 270 mm |
| Travel (Y axis) | – | – | – | 150 mm | 150 mm | |
| Travel (Z axis) | 710 mm 1314 mm 1640 mm | 730 mm 1350 mm 1660 mm | 680 mm 1280 mm 1620 mm | 680 mm 1280 mm 1620 mm | 680 mm 1280 mm |
