Mô tả sản phẩm

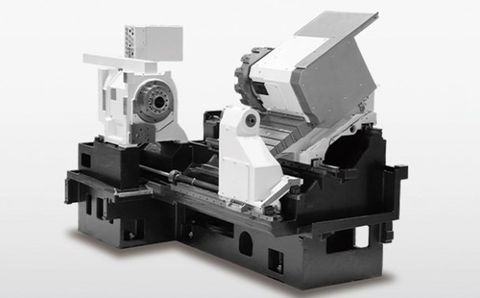

- Built-in motor spindle and high rigidity machine construction provide unsurpassed performance
- Turning, milling specifications designed to meet your production requirements
Roller guides with excellent speed and durability are used on all axes

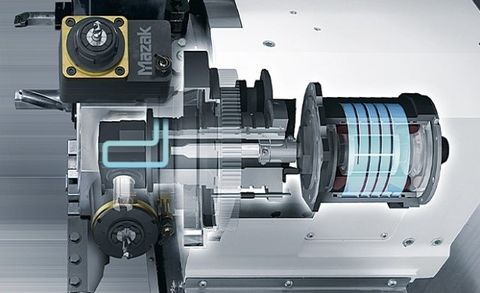

- An integral motor is utilized for the turret milling spindle to minimize vibration for high accuracy. The motor unit is cooled to minimize heat generated during high-speed revolution
*SPECIFICATIONS:
| Specifications | QUICK TURN 400 | QUICK TURN 400M | |||||
|---|---|---|---|---|---|---|---|
| Capacity | Maximum swing | 845 mm | 845 mm | ||||
| Maximum machining diameter | 580 mm | 580 mm | |||||
| Maximum bar work capacity | 103 mm | 103 mm | |||||
| Maximum machining length | 1024 mm 2074 mm 3124 mm | 997 mm 2081 mm 3097 mm | |||||
| Main spindle | Chuck size | 12 inch | 12 inch | ||||
| Maximum speed | 2500 rpm | 2500 rpm | |||||
| Turret (Upper) | Number of tools | 12 | 12 | ||||
| Maximum speed | – | 5000 rpm | |||||
| Tailstock |
| 1025 mm 2075 mm 2950 mm | 1025 mm 2075 mm 2950 mm | ||||
| Feed axes | Travel (X axis) | 320 mm | 350 mm | ||||
| Travel (Z axis) | 1070 mm 2120 mm 3170 mm | 1070 mm 2120 mm 3170 mm |
