Mô tả sản phẩm

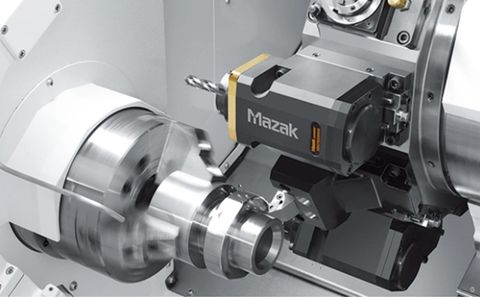

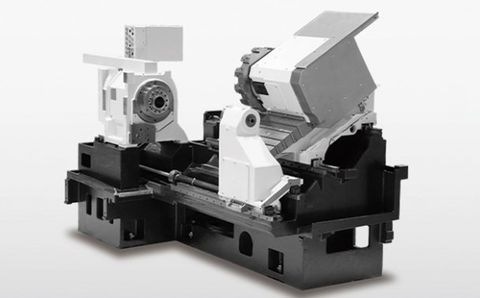

- Built-in motor spindle and high rigidity machine construction provide unsurpassed performance

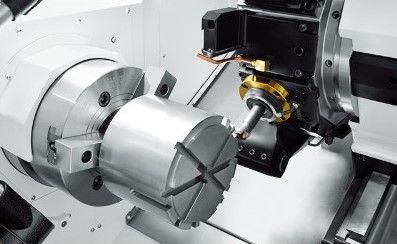

- Turning, milling specifications designed to meet your production requirements
Roller guides with excellent speed and durability are used on all axes

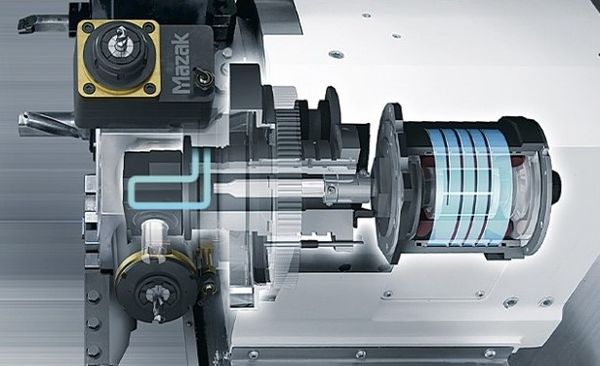

- An integral motor is utilized for the turret milling spindle to minimize vibration for high accuracy. The motor unit is cooled to minimize heat generated during high-speed revolution
*SPECIFICATIONS:
| Specifications | QUICK TURN 450 | QUICK TURN 450M | ||||
|---|---|---|---|---|---|---|
| Capacity | Maximum swing | 845 mm | 845 mm | |||
| Maximum machining diameter | 580 mm | 580 mm | ||||
| Maximum bar work capacity | 165 mm | 165 mm | ||||
| Maximum support weight | Chuck work : 1000 kg / 1500 kg / 1800 kg Shaft work : 1326 kg / 1326 kg / 2038 kg | Chuck work : 1000 kg / 1500 kg / 1800 kg Shaft work : 1326 kg / 1326 kg / 2038 kg | ||||
| Main spindle | Chuck size | 18 inch | 18 inch | |||
| Maximum speed | 2000 rpm | 2000 rpm | ||||
| Turret (Upper) | Number of tools | 12 | 12 | |||
| Maximum speed | – | 5000 rpm | ||||
| Tailstock | Tailstock stroke | 1025 mm / 2075 mm / 2950 mm | 1025 mm / 2075 mm / 2950 mm | |||
| Feed axes | Travel (X axis) | 320 mm | 350 mm | |||
| Travel (Z axis) | 1070 mm 2120 mm 3170 mm | 1070 mm 2120 mm 3170 mm |
