MAZAK - CNC TURNING CENTER - SLANT TURN 500 SERIES

Thương hiệu: MAZAK
Loại: MÁY TIỆN CNC
0₫

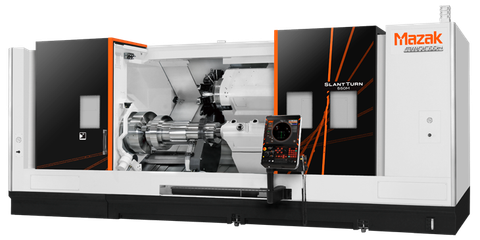

MAZAK - CNC TURNING CENTER

SLANT TURN 500 SERIES

Heavy-duty machining of large, long shaft workpieces



Sản phẩm trước Sản phẩm sau

Mô tả sản phẩm

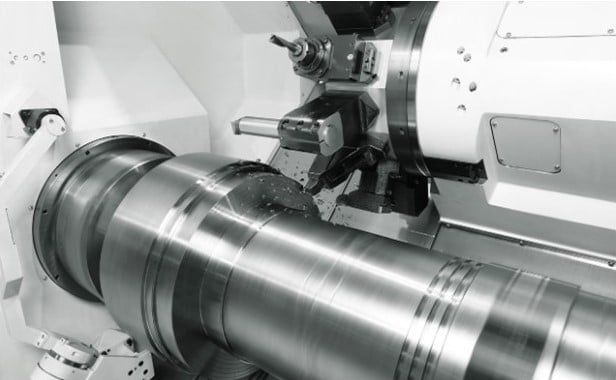

  • Powerful cutting of large-diameter workpieces with high torque spindles

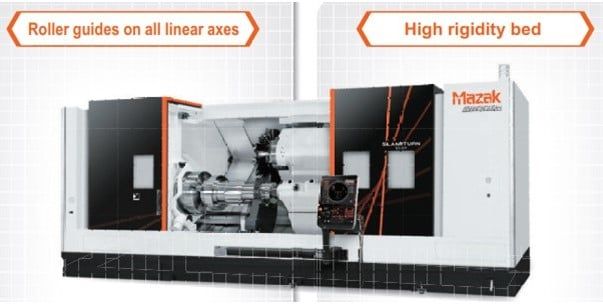

  • Machine construction with high rigidity roller guides

  • High power milling spindle that rival those of small machining centers

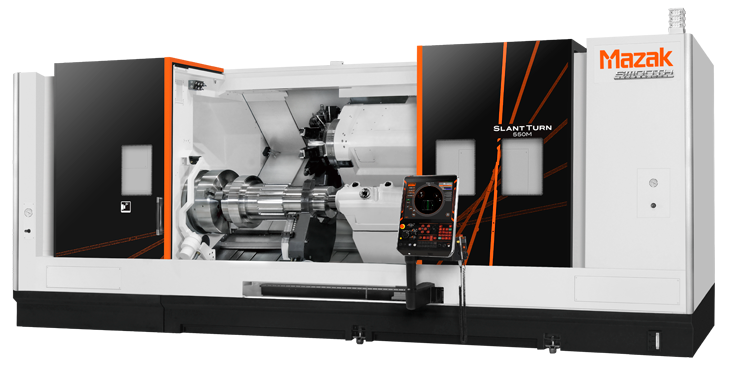

SLANT TURN 500M, 550M, and 600M are capable of highly efficient milling / turning. A high-torque version is also optionally available.

VDI-type Turret (Milling setup)

Bolt-on turret (Standard setup)

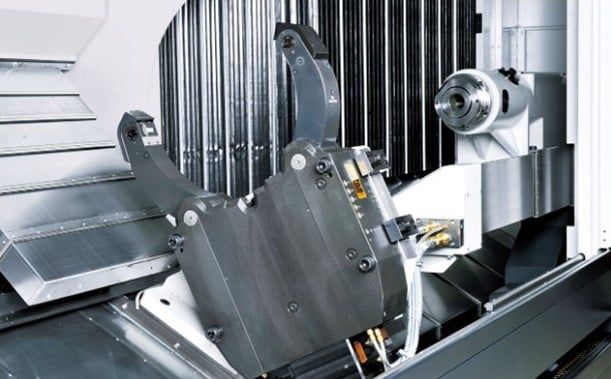

  • Automatic steady rest with significantly reduced travel time

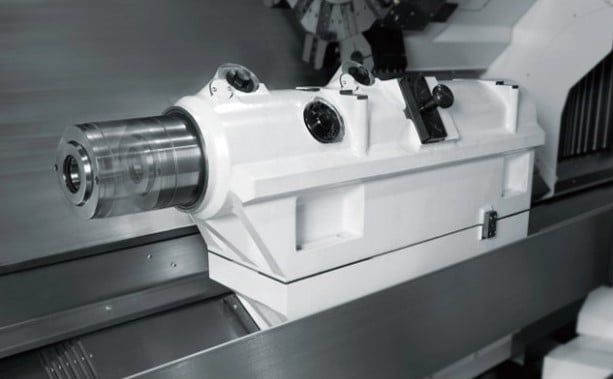

  • Tailstock to handle both long and short shaft workpieces

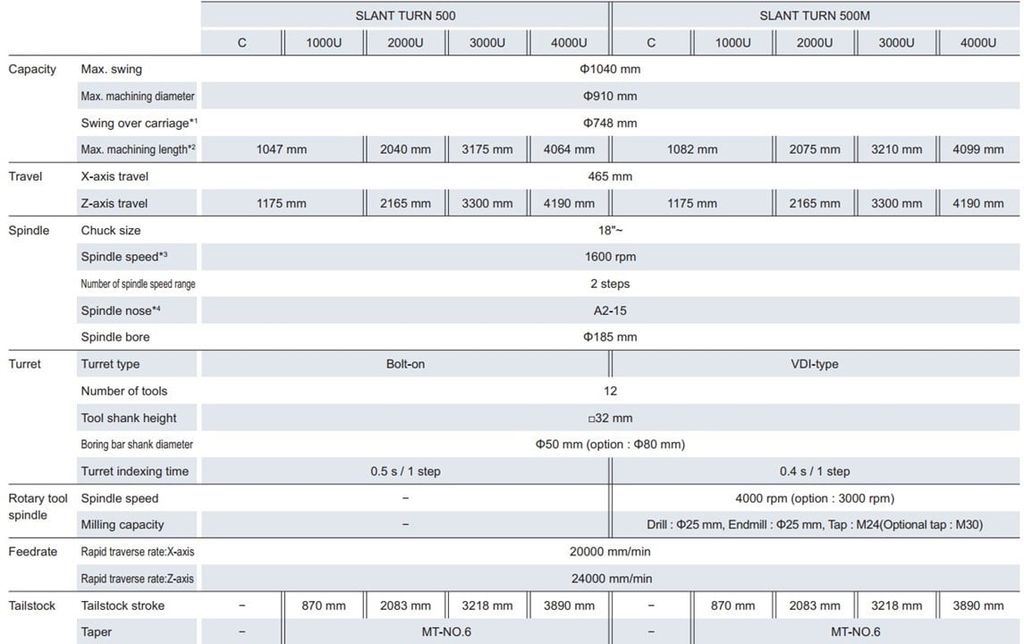

*SPECIFICATIONS:
