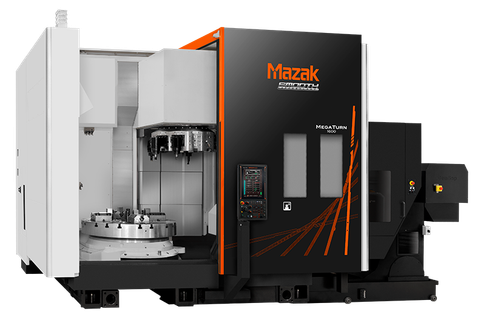

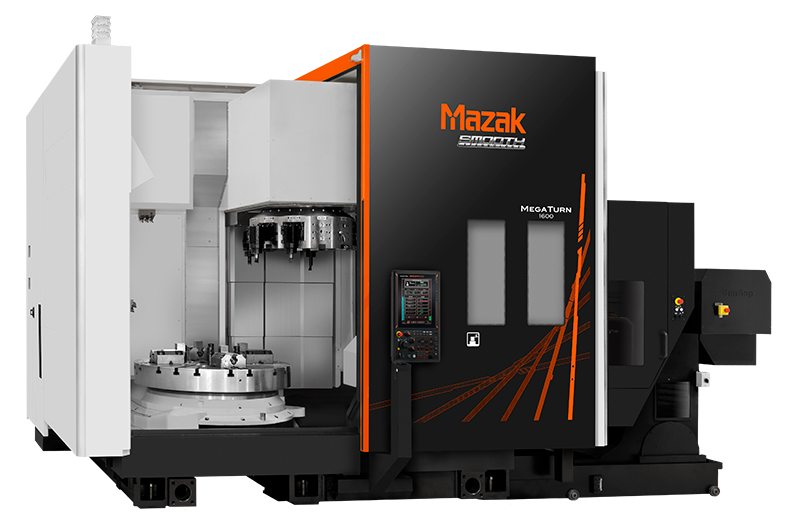

MAZAK - VERTICAL CNC TURNING CENTER - MEGA TURN 1600 SERIES
Thương hiệu: MAZAK
Loại: MÁY TIỆN ĐỨNG CNC
Mô tả sản phẩm
- Outstanding cutting capacity for high productivity
- Automatic tool changer for further improvement of productivity

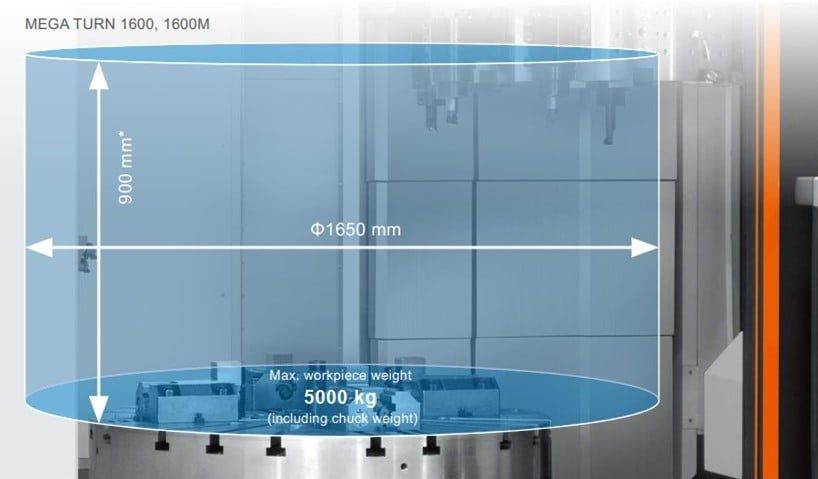

- Large machining area
- Symmetrical machines can be lined up to build an efficient line
- Unique design for large machining area

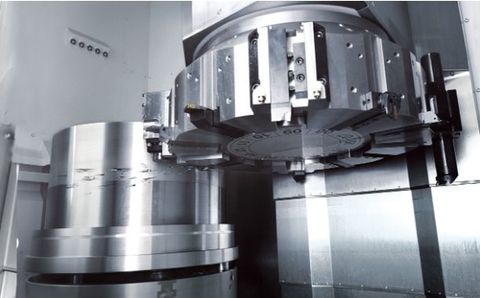

- High rigidity headstock for machining heavy workpieces
- Turret for mounting up to 12 tools
- Milling performance for process integration
*SPWCIFICATIONS:
| Category | Item | MEGA TURN 1600 | MEGA TURN 1600M |
| Capacity | Max. swing | ø1650 mm | |
| Max. machining diameter | ø1650 mm | ||
| Max. machining height | 900 mm | ||
| Max. loading capacity | 5000 kg | ||
| Stroke | X axis | 1140 mm | |
| Z axis | 905 mm | ||
| Spindle | Chuck size | Option : Φ1250 mm, Φ1500 mm | |
| Spindle speed | 350 rpm | ||
| Turret | Number of tools | 12 tools | |
| Tool shank height | 32 mm | ||
| Boring bar shank diameter | ø50 mm | ||
| Turret indexing time | 0.5 s/step | ||
| Rotary tool spindle | Spindle speed | - | 3000 rpm |
| Feedrate | Rapid traverse rate: X axis | 24000 mm/min | |
| Rapid traverse rate: Z axis | 24000 mm/min | ||
| Rapid traverse rate: C axis | - | 20 rpm | |
