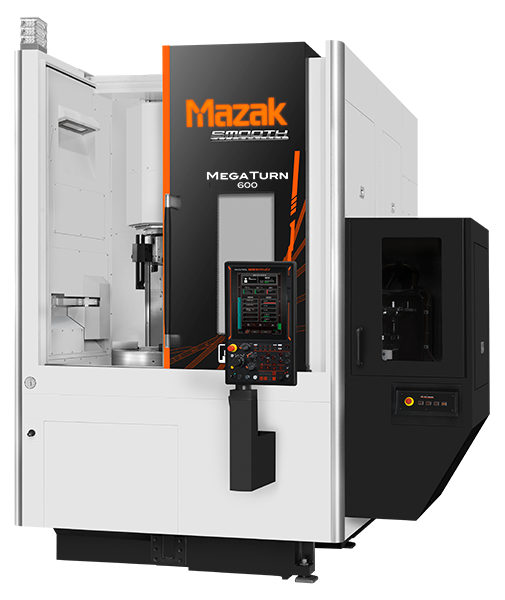

MAZAK - VERTICAL CNC TURNING CENTER - MEGA TURN 600 SERIES
Thương hiệu: MAZAK
Loại: MÁY TIỆN ĐỨNG CNC
Mô tả sản phẩm
- Outstanding cutting capacity for high productivity
- Automatic tool changer for further improvement of productivity

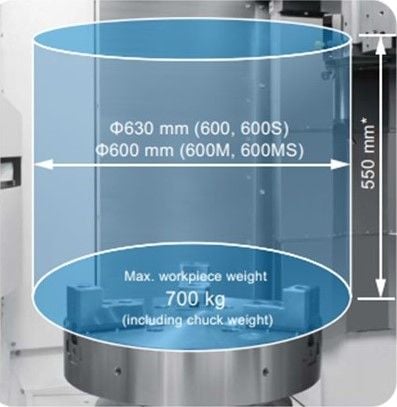

- Large machining area
- Symmetrical machines can be lined up to build an efficient line
- Unique design for large machining area

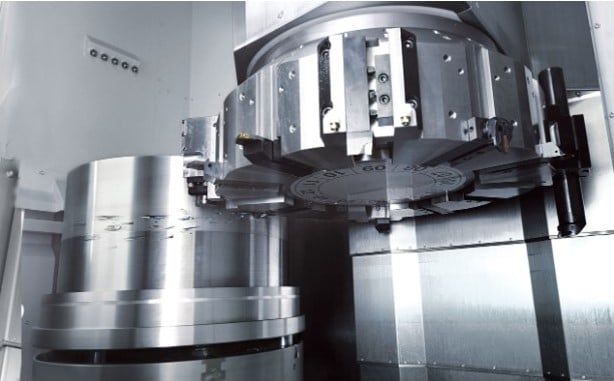

- High rigidity headstock for machining heavy workpieces

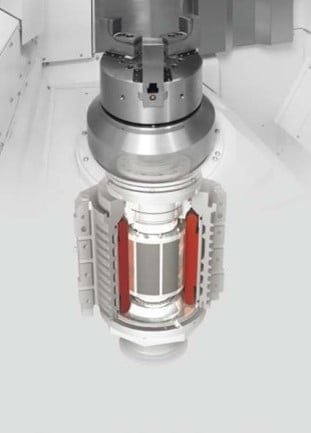

- Rigid integral spindle / motor for unsurpassed machining performance

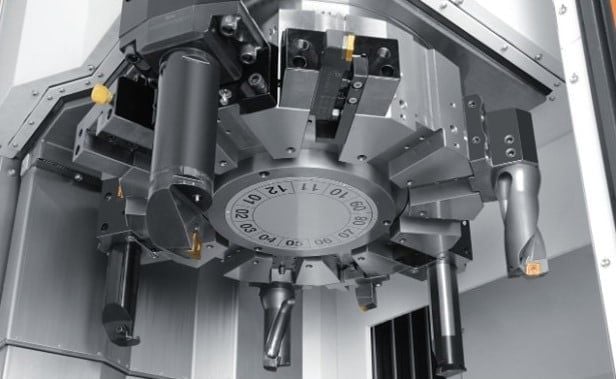

- Turret for mounting up to 12 tools

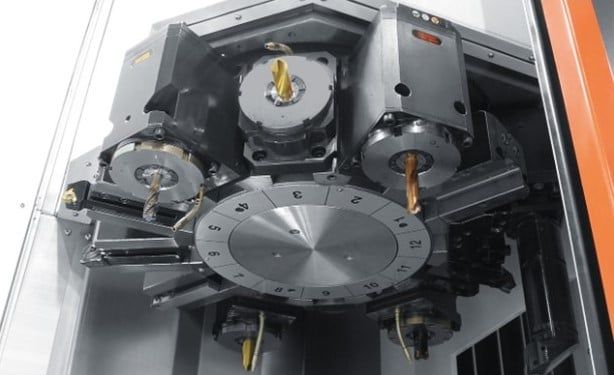

- Milling performance for process integration
Mirror-image versions available to solve placement problems (except for 1600, 1600M)
Two machines can be operated by a single operator.
By combining mirror-image versions with standard version machines, the machine layout can be set up with a shorter traveling distance between machines, when only one operator is available for production (compared to installing two standard version machines).
Floor space can also be reduced.

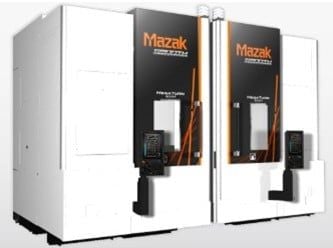

Adjacent layout

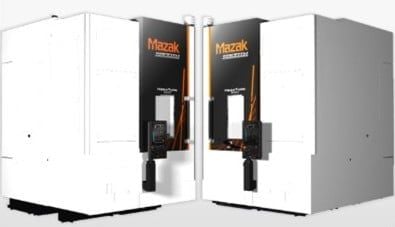

L-shape layout

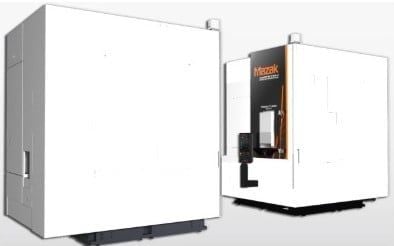

Face-to-face layout
*SPWCIFICATIONS:
| Category | Item | MEGA TURN 600, 600S | MEGA TURN 600M, 600MS |
| Capacity | Max. swing | ø700 mm | |
| Max. machining diameter | ø630 mm | ø600 mm | |
| Max. machining height | 550 mm | ||
| Max. loading capacity | 700 kg | ||
| Stroke | X axis | 345 mm | |
| Z axis | 520 mm | ||
| Spindle | Chuck size | Option : 18”,21”,24” | |
| Spindle speed | 2200 rpm | ||
| Turret | Number of tools | 12 tools | |
| Tool shank height | 25 mm (32 mm Option) | ||
| Boring bar shank diameter | ø50 mm | ||
| Turret indexing time | 0.3 s/step | ||
| Rotary tool spindle | Spindle speed | - | 4000 rpm |
| Feedrate | Rapid traverse rate: X axis | 30000 mm/min | |
| Rapid traverse rate: Z axis | 30000 mm/min | ||
| Rapid traverse rate: C axis | - | 50 rpm | |
