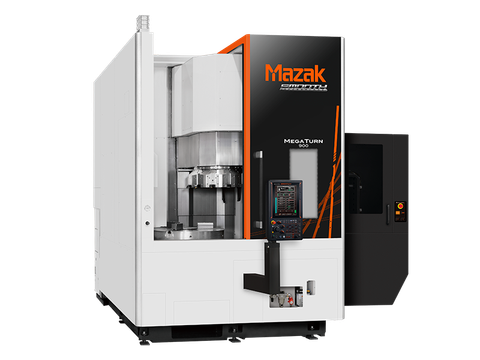

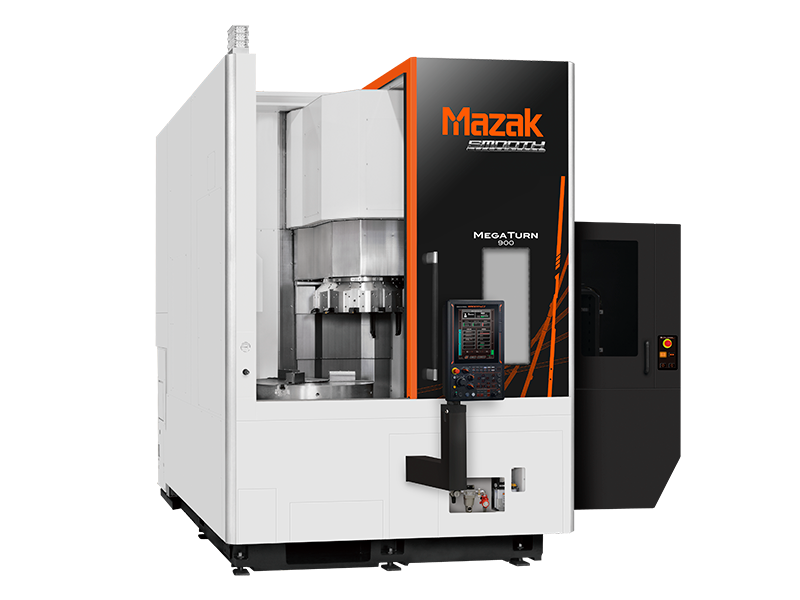

MAZAK - VERTICAL CNC TURNING CENTER - MEGA TURN 900 SERIES
Thương hiệu: MAZAK
Loại: MÁY TIỆN ĐỨNG CNC
Mô tả sản phẩm
- Outstanding cutting capacity for high productivity
- Automatic tool changer for further improvement of productivity

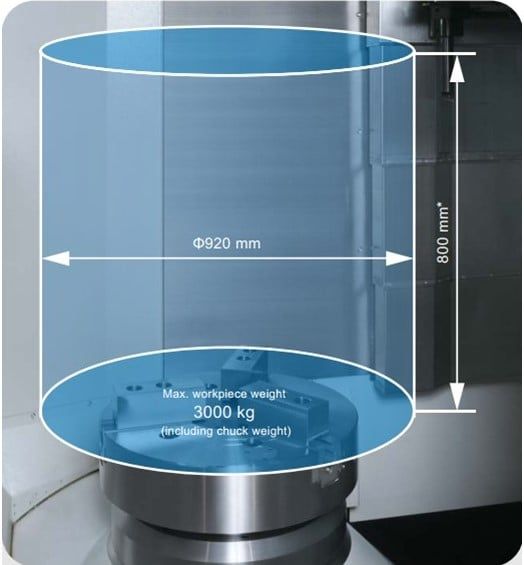

- Large machining area
- Symmetrical machines can be lined up to build an efficient line
- Unique design for large machining area
- High rigidity headstock for machining heavy workpieces
- Turret for mounting up to 12 tools
- Milling performance for process integration

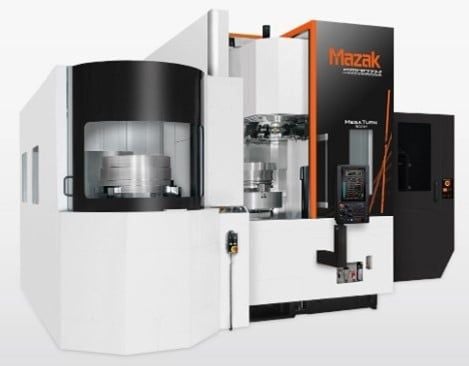

2-pallet changer (900, 900M) (option)
Mirror-image versions available to solve placement problems (except for 1600, 1600M)
Two machines can be operated by a single operator.
By combining mirror-image versions with standard version machines, the machine layout can be set up with a shorter traveling distance between machines, when only one operator is available for production (compared to installing two standard version machines).
Floor space can also be reduced.

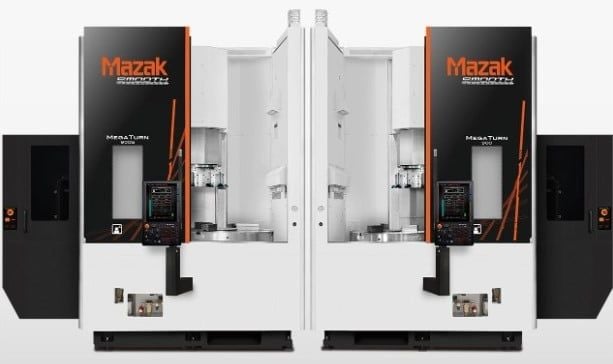

MEGA TURN 900S (mirror-image version), MEGA TURN 900 (standard version)
Adjacent layout
L-shape layout
Face-to-face layout
*SPWCIFICATIONS:
| Category | Item | MEGA TURN 900, 900S | MEGA TURN 900M, 900MS |
| Capacity | Max. swing | ø1000 mm | |
| Max. machining diameter | ø920 mm | ||
| Max. machining height | 800 mm | ||
| Max. loading capacity | 3000 kg | ||
| Stroke | X axis | 470 mm | |
| Z axis | 876 mm | ||
| Spindle | Chuck size | Option : 21”, 24”, 28", 32", 36" | |
| Spindle speed | 1250 rpm | ||
| Turret | Number of tools | 12 tools | |
| Tool shank height | 32 mm | ||
| Boring bar shank diameter | ø50 mm | ||
| Turret indexing time | 0.4 s/step | ||
| Rotary tool spindle | Spindle speed | - | 4000 rpm |
| Feedrate | Rapid traverse rate: X axis | 24000 mm/min | |
| Rapid traverse rate: Z axis | 24000 mm/min | ||
| Rapid traverse rate: C axis | - | 20 rpm | |
