Mô tả sản phẩm

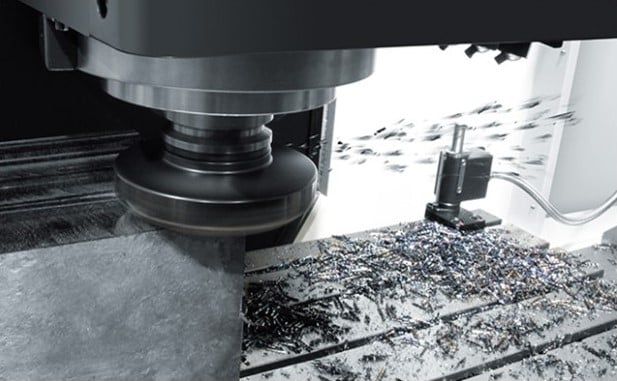

- BT50 high-torque spindle for hard materials
Equipped with BT50 high-torque spindle. Demonstrates high productivity from heavy-duty cutting of long and heavy workpieces to machining of difficult-to-machine materials.

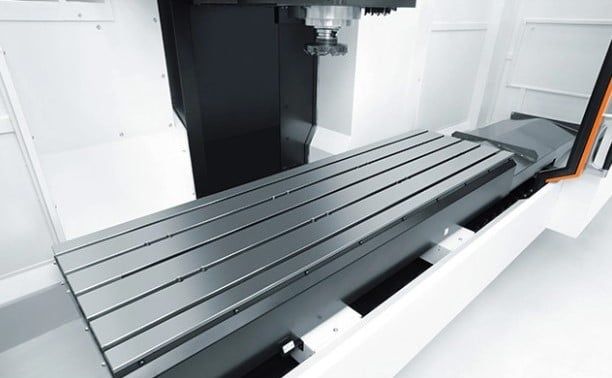

- Tables with a wide machining area and outstanding load capacity

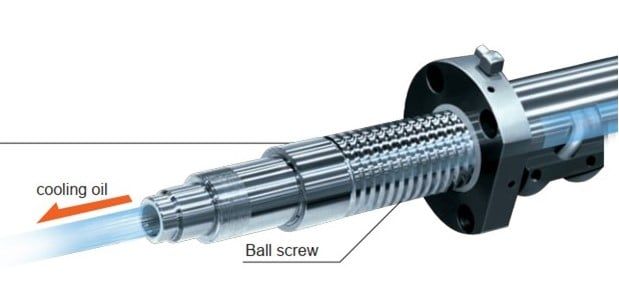

- Ball screw core cooling for all axes
Machine design for ease of operation and maintenance
*SPECIFICATIONS:

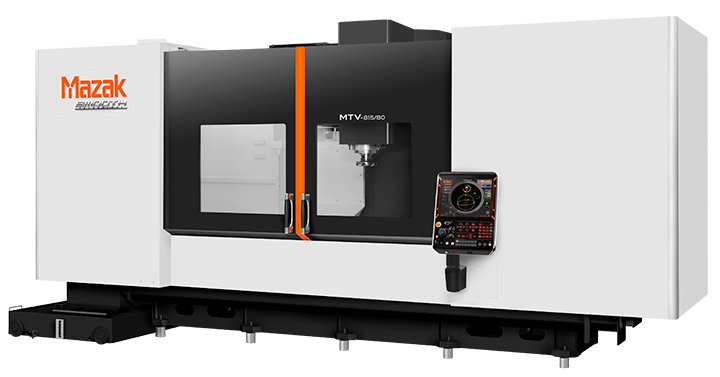

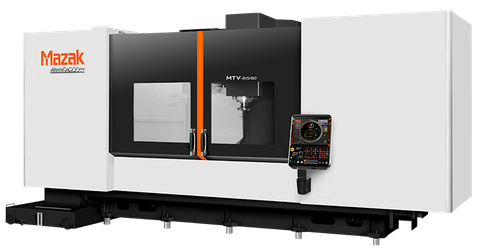

| Category | Item | MTV-815/80 |
| Stroke | X-axis | 2032 mm |
| Y-axis | 810 mm | |
| Z-axis | 750 mm | |
| Distance from table top to spindle nose | 200 - 950 mm | |
| Table | Table size | 2240 mm x 810 mm |
| Max. load capacity | 3000 kg | |
| Spindle | Max. spindle speed | 6000 rpm |
| Spindle taper | No.50 | |
| Feedrate | Rapid traverse rate (X, Y, Z axis) | 24000/24000/18000 mm/min |
| Cutting feedrate (X, Y, Z axis) | 1 - 8000 mm/min | |
| Automatic tool changer | Tool shank | BT50 |
| Tool storage capacity | 30 | |
| Max. tool diameter / length (from gauge line) / weight | Φ125 mm / 400 mm / 20 kg | |
| Max. tool diameter with adjacent tool pockets empty | 260 mm | |
| Tool change time (chip-to-chip) | 6.5 sec |
