Mô tả sản phẩm

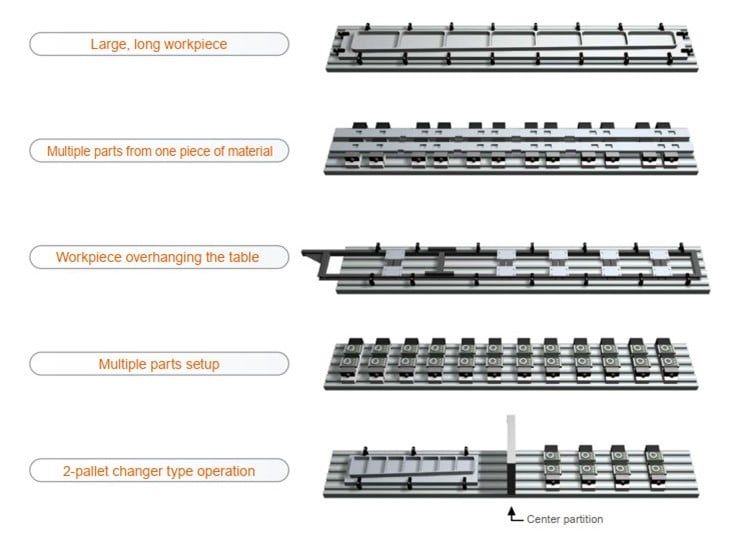

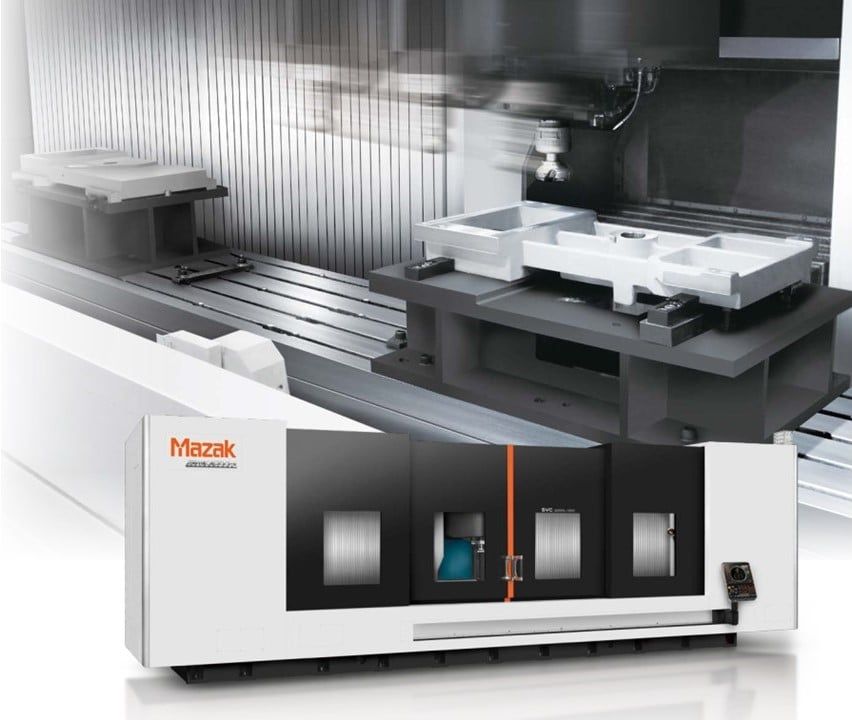

- Fixed long table provides exceptional versatility, such as long workpiece machining, multiple workpiece setups

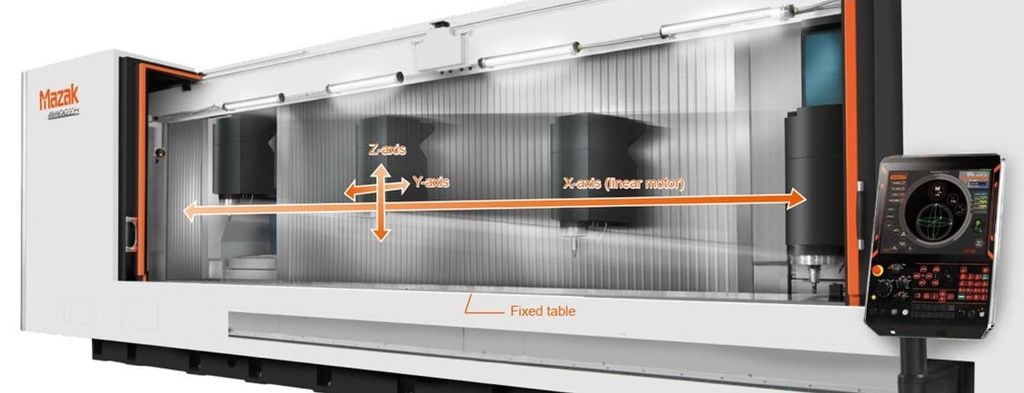

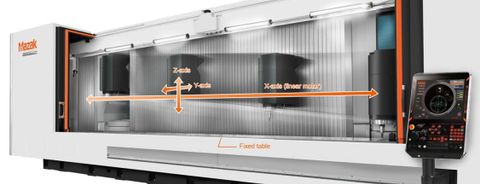

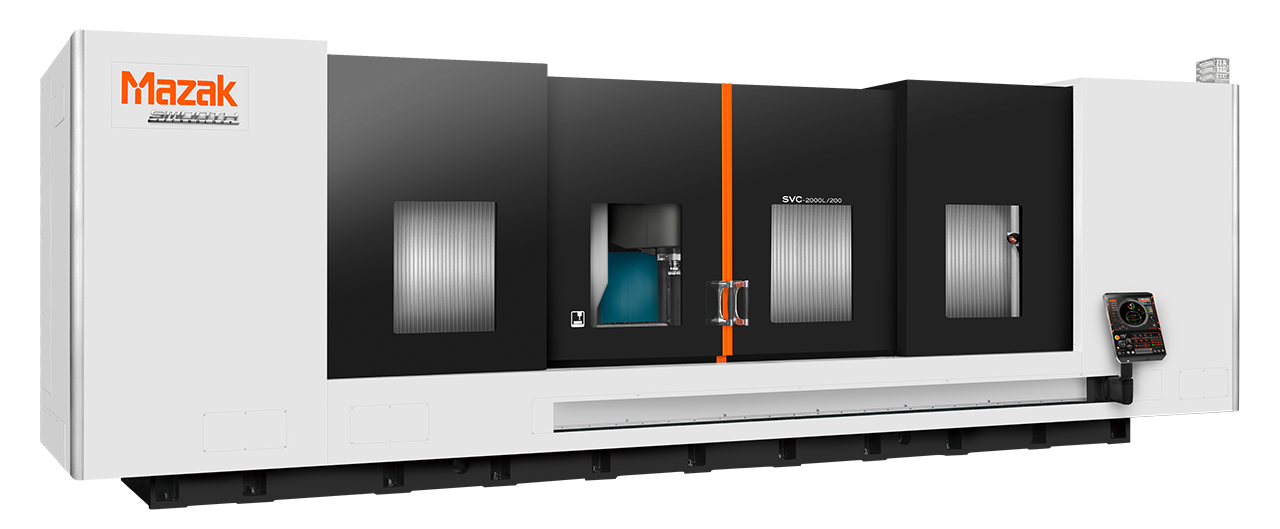

- X-axis linear motor driven traveling column Vertical machining centers
- Fixed long table provides exceptional versatility

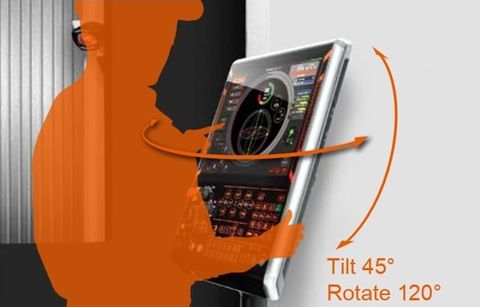

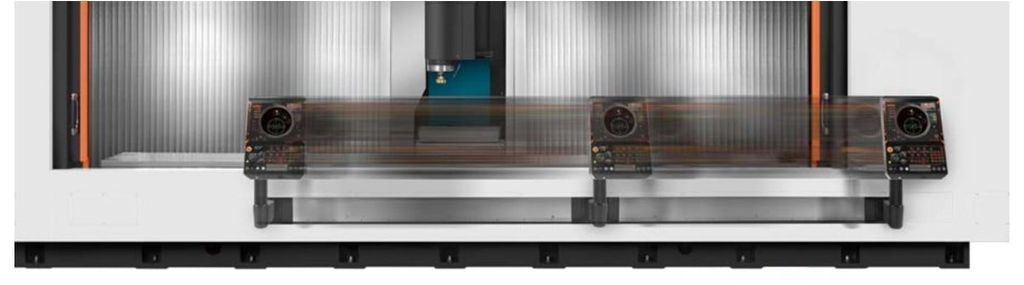

- Designed for convenient operation

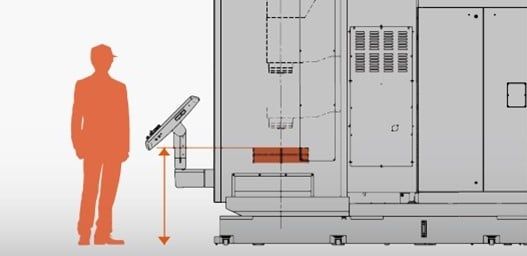

Excellent accessibility to table
| Table top height | 800 mm (120) / 890 mm (200) |

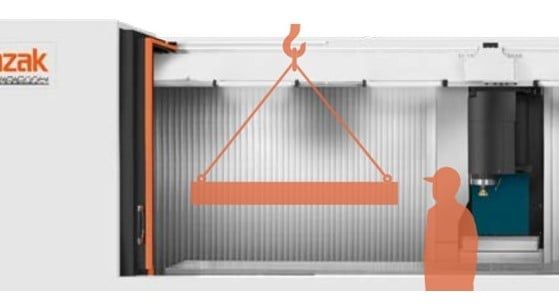

Wide door opening and convenient access for overhead crane
| Door opening | 3401 mm (120) / 5402 mm (200) |

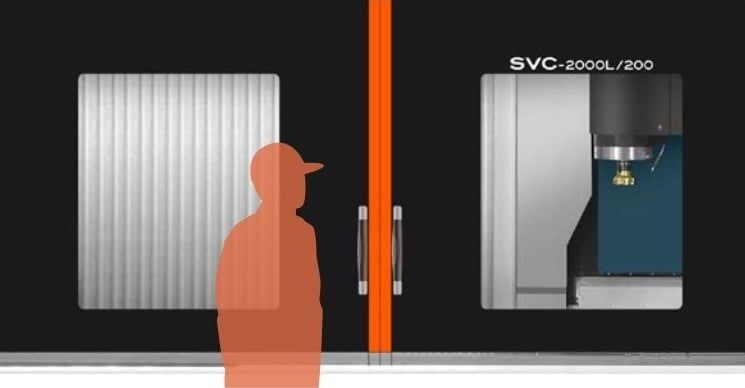

Large windows
*SPECIFICATIONS:
| Category | Item | SVC-2000L/120 | SVC-2000L/200 |
| Stroke | X-axis | 3048 mm | 5080 mm |
| Y-axis | 510 mm | ||
| Z-axis | 510 mm | ||
| Distance from table top to spindle nose | 180 - 690 mm | ||
| Table | Table size | 3400 mm x 510 mm | 5400 mm x 510 mm |
| Max. load capacity | 2400 kg | 3400 kg | |
| Spindle | Max. spindle speed | 15000 rpm | |
| Spindle taper | 7/24 taper No.40 | ||
| Feedrate | Rapid traverse rate (X, Y, Z axis) | 120.000/50.000/50.000 mm/min | |
| Cutting feedrate (X, Y, Z axis) | 1 - 30.000 mm/min | ||
| Automatic tool changer | Tool shank | No.40 | |
| Tool storage capacity | 30 | ||
| Max. tool diameter / length (from gauge line) / weight | Φ80 mm / 350 mm / 8 kg | ||
| Max. tool diameter with adjacent tool pockets empty | 110 mm | ||
| Tool change time (chip-to-chip) | 4.0 sec | ||
