Mô tả sản phẩm

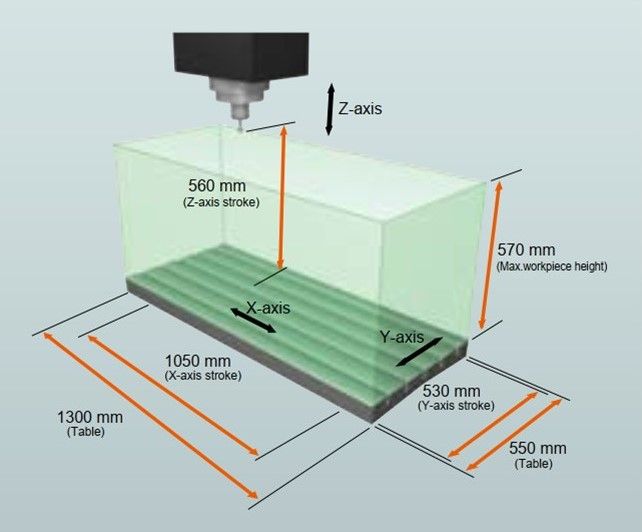

- Largest table and machining area for this class of vertical machining center
- High-speed automatic tool changer
Tool change time (Tool-to-tool): 2.0 sec

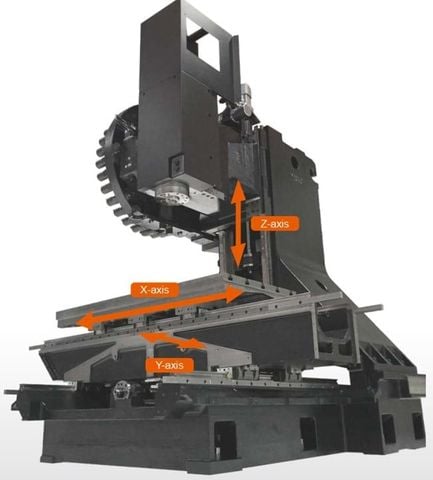

- Highly rigid machine construction with the best rigidity balance between spindle
- Standard equipment for high accuracy machining

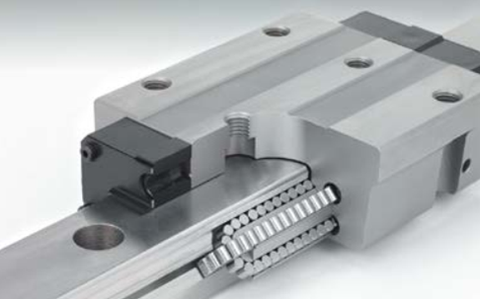

The rigid linear roller guides utilized on all linear axes provide improved
positioning accuracy compared to slideways. Stable machining accuracy is ensured over extend periods of time.
*SPECIFICATIONS:
| Category | Item | VCN-535C |
| Stroke | X-axis | 1050 mm |
| Y-axis | 530 mm | |
| Z-axis | 560 mm | |
| Distance from table top to spindle nose | 150 - 710 mm | |
| Distance from column surface to spindle center | 571 mm | |
| Table | Table size | 1300 mm x 550 mm |
| Max. load capacity | 1200 kg | |
| Spindle | Max. spindle speed | 8000 rpm |
| Spindle taper | 7/21 taper No.50 | |
| Feedrate | Rapid traverse rate | 42000 mm/min |
| Cutting feedrate | 1 - 8000 mm/min | |
| Automatic tool changer | Tool shank | MAS BT50 |
| Tool storage capacity | 24 | |
| Max. tool diameter / length (from gauge line) / weight | Φ105 mm / 350 mm / 20 kg | |
| Max. tool diameter with adjacent tool pockets empty | 210 mm | |
| Tool change time (tool-to-tool) | 2.0 sec |
