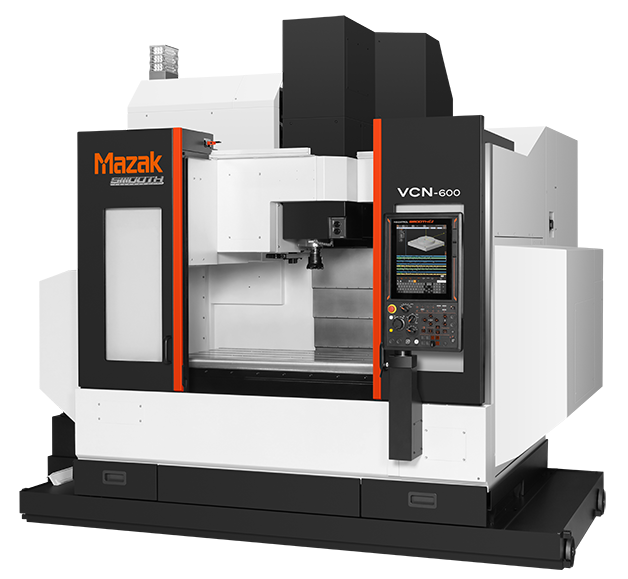

- Compact vertical machining center with BT No.40
- High rigidity construction ensures high accuracy machining
- Designed for unsurpassed ease of operation
- Improved environmental performance

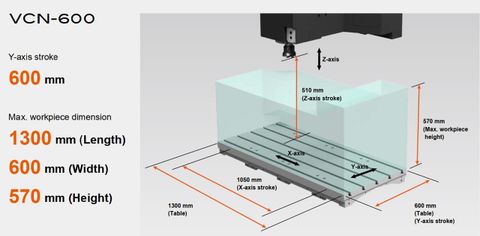

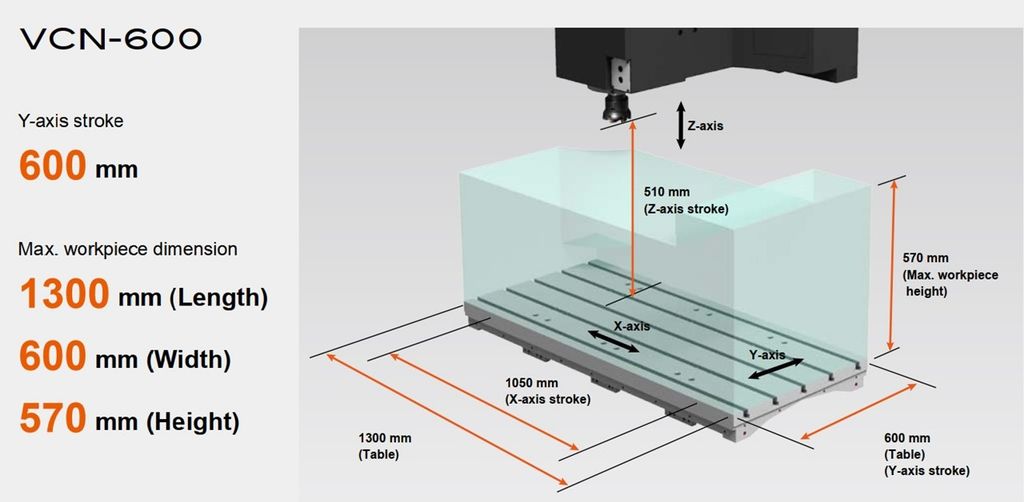

- Largest table and machining area for this class of vertical machining center

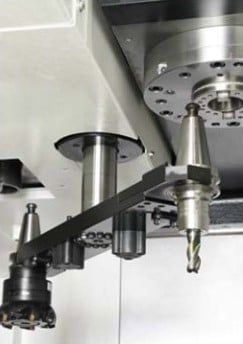

- High-speed automatic tool changer
Tool change time (Tool-to-tool): 1.3 sec

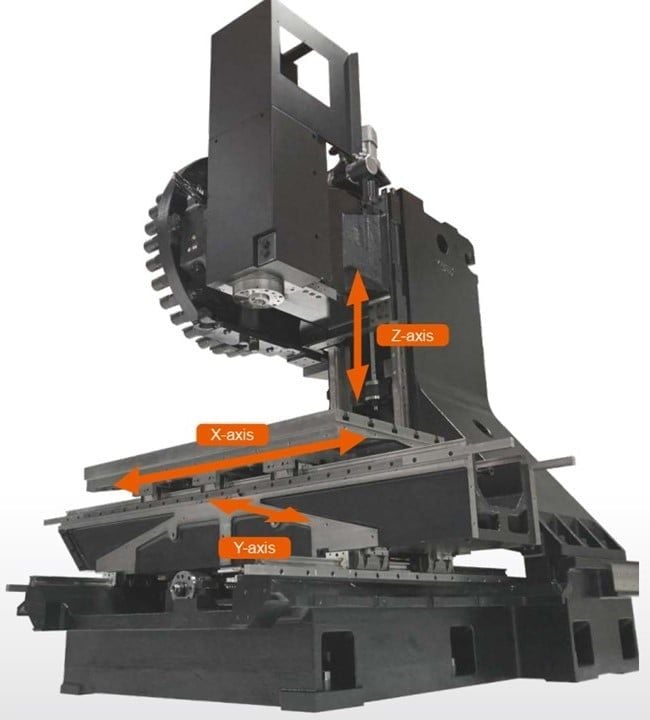

- Highly rigid machine construction with the best rigidity balance between spindle

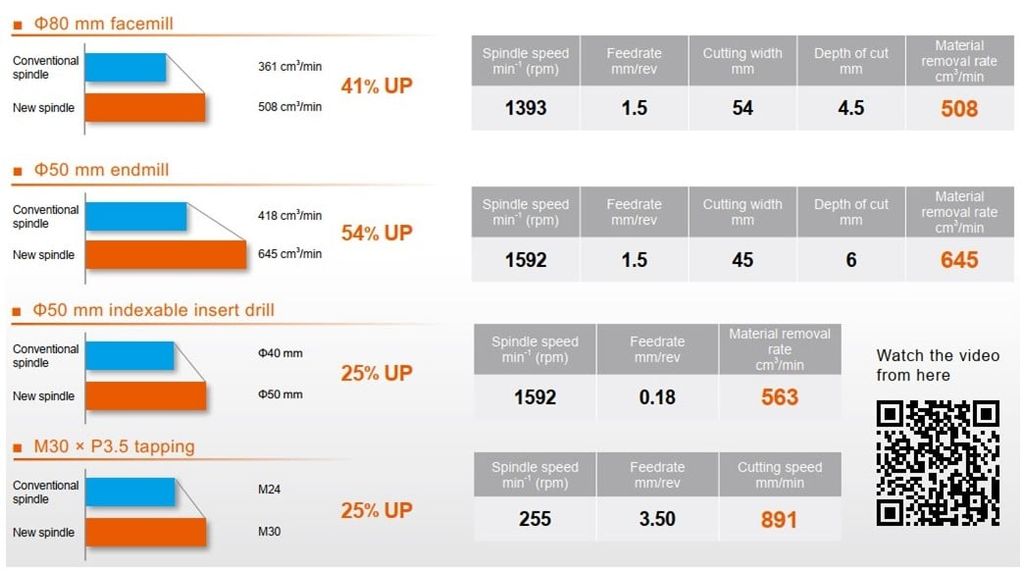

- Powerful, high torque spindle for higher productivity
- Standard equipment for high accuracy machining

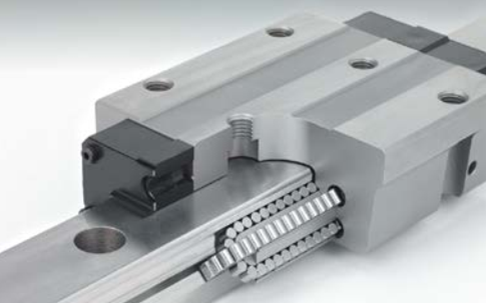

The rigid linear roller guides utilized on all linear axes provide improved
positioning accuracy compared to slideways. Stable machining accuracy is ensured over extend periods of time.

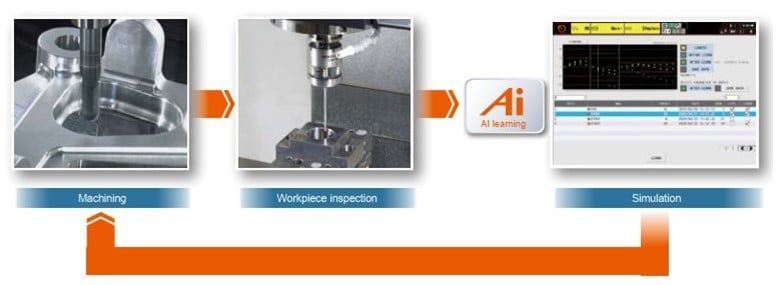

- Ai Thermal Shield
New algorithms automatically determine the amount of compensation to be automatically applied according to changes in the temperature to ensure even higher machining accuracy. Ai Thermal Shield is available with the MAZATROL SmoothG CNC control.
- High-precision finishing for die and mold machining

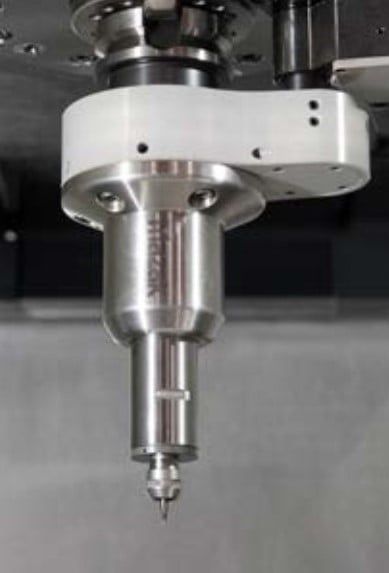

ULTRA SPINDLE (OPTION)

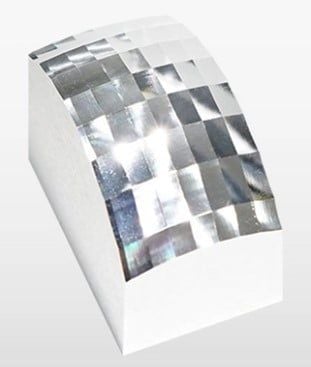

Enables high-precision finishing with small diameter tools required for die and mold machining. Mirror machining can be performed by attaching compact electric motor spindle that can be changed tools automatically to a standard spindle.
Spindle speed： 60000 min-1 (rpm) / 80000 min-1 (rpm)
*SPECIFICATIONS:
| Category | Item | VCN-600 |
| Stroke | X-axis | 1050 mm |
| Y-axis | 600 mm | |
| Z-axis | 510 mm | |
| Distance from table top to spindle nose | 150 - 660 mm | |
| Distance from column surface to spindle center | 616 mm | |
| Table | Table size | 1300 mm x 600 mm |
| Max. load capacity | 1200 kg | |
| Spindle | Max. spindle speed | 12000 rpm |
| Spindle taper | 7/24 taper No.40 | |
| Feedrate | Rapid traverse rate | 42000 mm/min |
| Cutting feedrate | 1 - 8000 mm/min | |
| Automatic tool changer | Tool shank | MAS BT40 |
| Tool storage capacity | 30 | |
| Max. tool diameter / length (from gauge line) / weight | Φ80 mm / 350 mm / 8 kg | |
| Max. tool diameter with adjacent tool pockets empty | 125 mm | |
| Tool change time (tool-to-tool) | 1.3 sec |
