Mô tả sản phẩm

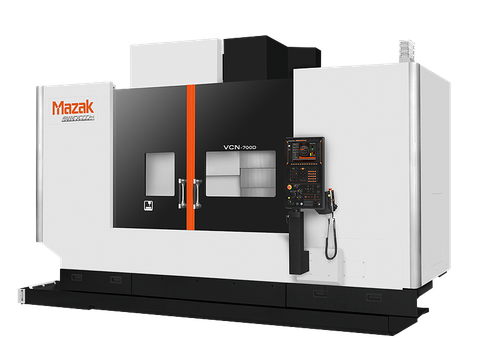

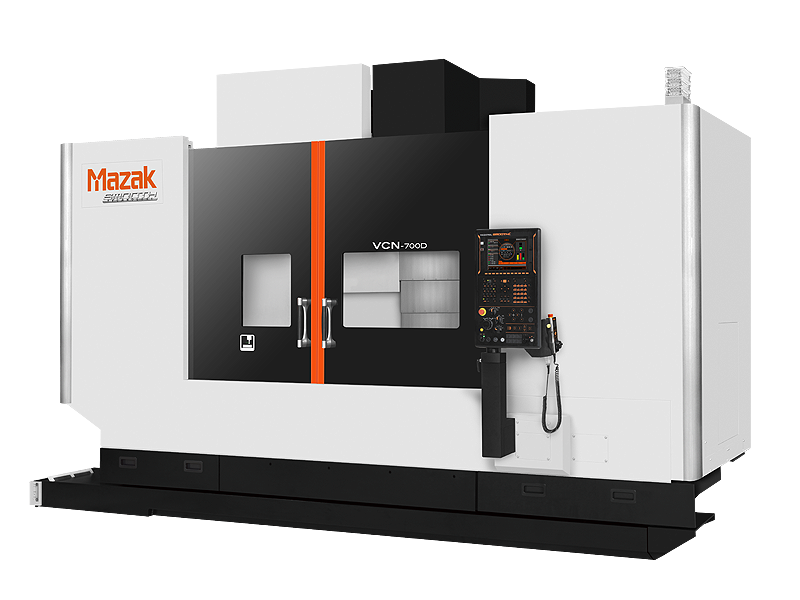

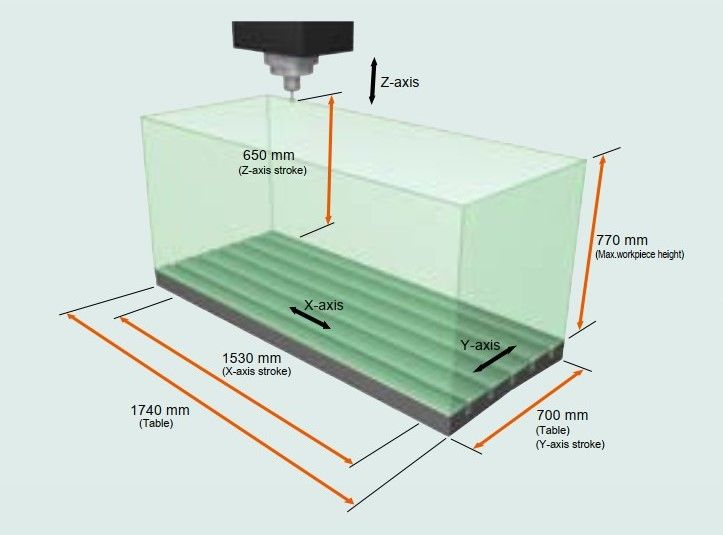

- Largest table and machining area for this class of vertical machining center

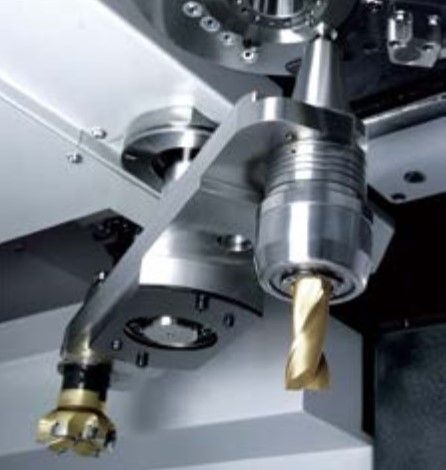

- High-speed automatic tool changer
Tool change time (Tool-to-tool): 2.0 sec

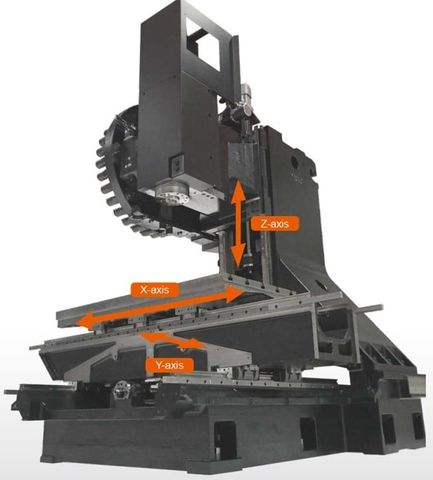

- Highly rigid machine construction with the best rigidity balance between spindle
- Standard equipment for high accuracy machining

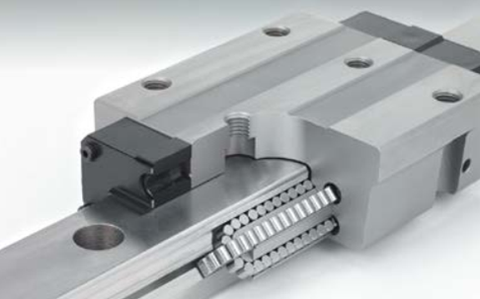

The rigid linear roller guides utilized on all linear axes provide improved
positioning accuracy compared to slideways. Stable machining accuracy is ensured over extend periods of time.
*SPECIFICATIONS:
| Category | Item | VCN-700D |
| Stroke | X-axis | 1530 mm |
| Y-axis | 700 mm | |
| Z-axis | 650 mm | |
| Distance from table top to spindle nose | 200 - 850 mm | |
| Distance from column surface to spindle center | 722 mm | |
| Table | Table size | 1710 mm x 700 mm |
| Max. load capacity | 2000 kg | |
| Spindle | Max. spindle speed | 8000 rpm |
| Spindle taper | 7/21 taper No.50 | |
| Feedrate | Rapid traverse rate | 30000 mm/min |
| Cutting feedrate | 1 - 8000 mm/min | |
| Automatic tool changer | Tool shank | MAS BT50 |
| Tool storage capacity | 24 | |
| Max. tool diameter / length (from gauge line) / weight | Φ105 mm / 400 mm / 20 kg | |
| Max. tool diameter with adjacent tool pockets empty | 210 mm | |
| Tool change time (tool-to-tool) | 2.0 sec |
