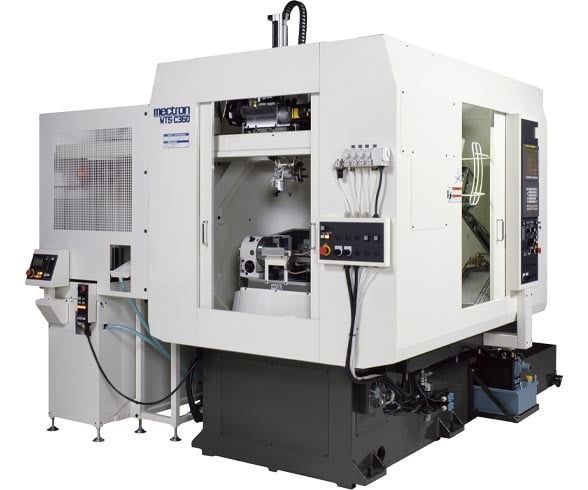

MECTRON - VERTICAL COMPACT MACHINING CENTER - MTS-C360/C420/C360w
Thương hiệu: MECTRON
Loại: MÁY PHAY CNC
Mô tả sản phẩm
- The slant structure with the axis (Y and Z) being slanted at 30° towards the back of the system. With the table on the machining side being slanted at 30°, the elimination of the cutoffs has been improved. By slanting the axis towards the back of machine, the loading space on the table has been broadened thus, improving the flexibility of the conveyer system and made it possible for various line structure. The top of the table on the loading side has been leveled to improve stability for work change.
- By adopting the Double-Arm-System ATC, the loading capacity of tools has expanded to 25. The unused tools can be stored in Tool-Pot to prevent the adhesion of cutoffs to the Tool-Shank.
- Standardized Twin-Turn-Table
- The required time for work change is 2.3 seconds.
- The shortesttime in the industry.
- The work change can be performed on the table while the other table is operating.
- The expanded loading space provides efficiency to the performance of the Loader (Option). The control of standardized loader will be synchronized to the NC.
*SPECIFICATIONS:
| ITEMS | Unit | MTS-C360 / MTS-C420 | MTS-C360w |
|---|---|---|---|
| Table | |||
| Table Size | mm | 480 × 360 | 480 × 360 |
| Table Size | – | 10 mm, 3 T-slots | 10 mm, 3 T-slots |
| Table Max. Load Capacity (one side) | kg | 70 | 70 |
| Table Rotation (APC) & Rotation | sec | APC 180° return / 2.3 sec | APC 180° return / 2.3 sec |
| Slide Travel | |||
| Longitudinal Travel (X-Axis) | mm | 400 | 400 |
| Cross Travel (Y-Axis) | mm | 300 | 300 |
| Vertical Travel (Z-Axis) | mm | 300 | 350 |
| Distance between Table Top and Spindle Nose End | mm | 240 ~ 540 | 240 ~ 590 |
| Spindle | |||
| Max. Spindle Speed | min⁻¹ | 12,000 / 10,000 | 12,000 |
| Max. Speed Rigid Tapping | min⁻¹ | 5,000 | 5,000 |
| Spindle Nose | – | NT No.30¹ / NT No.40¹ | NT No.30*¹ |
| Spindle Motor | kW | 7.5 / 5.5 / 3.7 11 / 7.5 / 5.5 | 7.5 / 5.5 / 3.7 |
| Feed Rate | |||
| Rapid Traverse Rate (X, Y, Z-Axis) | m/min | 48 | 48 |
| Tool Turret / ATC | |||
| Shank of Tool Holders | – | BBT30 + P30T-Ⅱ BBT40 + P40T-Ⅱ | BBT30 + P30T-Ⅱ |
| Tool Change System | – | Magazine direct system | Double arm system |
| Tool Storage Capacity | tools | 12 (Op.15) 10 (Op.12) | 25 |
| Max. Tool Diameter × Tool Length | mm | Ø80 × 200 | Ø80 × 200 |
| Max. Tool Weight (Total) | kg | 2.5 (20) 4.0 (25) | 2.5 (35) |
| Tool Change Time – Tool to Tool | sec | 1.0 / 1.2 | 0.7 |
| Tool Change Time – Chip to Chip | sec | 2.3 / 2.5 | 2.4 |
| Size of Machine | |||
| Max. Height | mm | 2,356 / 2,490 | 2,285 |
| Height in Transportation | mm | 2,185 / 2,200 | 2,185 |
| Size of Machine (Width × Depth) | mm | 1,615 × 2,725 | 1,700 × 2,725 |
| Weight | kg | 3,700 / 3,900 | 3,700 |
| NC Unit | – | FANUC 0i-MF Plus | FANUC 0i-MF Plus |
| Power Supply | V | AC200 ~ 230V, 3-Phase | AC200 ~ 230V, 3-Phase |
| Positioning Accuracy / Repeated Positioning Accuracy | mm | 0.005 / ±0.003 | 0.005 / ±0.003 |
