MTV-C Series
Column traverse type CNC drilling tapping machine with 180°rotating twin turntable.
The work loading is performed while the other table is operating.
It means the work loading time can be omitted.
Indexing time for the twin turntable is only 2.3 seconds. It is suitable for mass production.

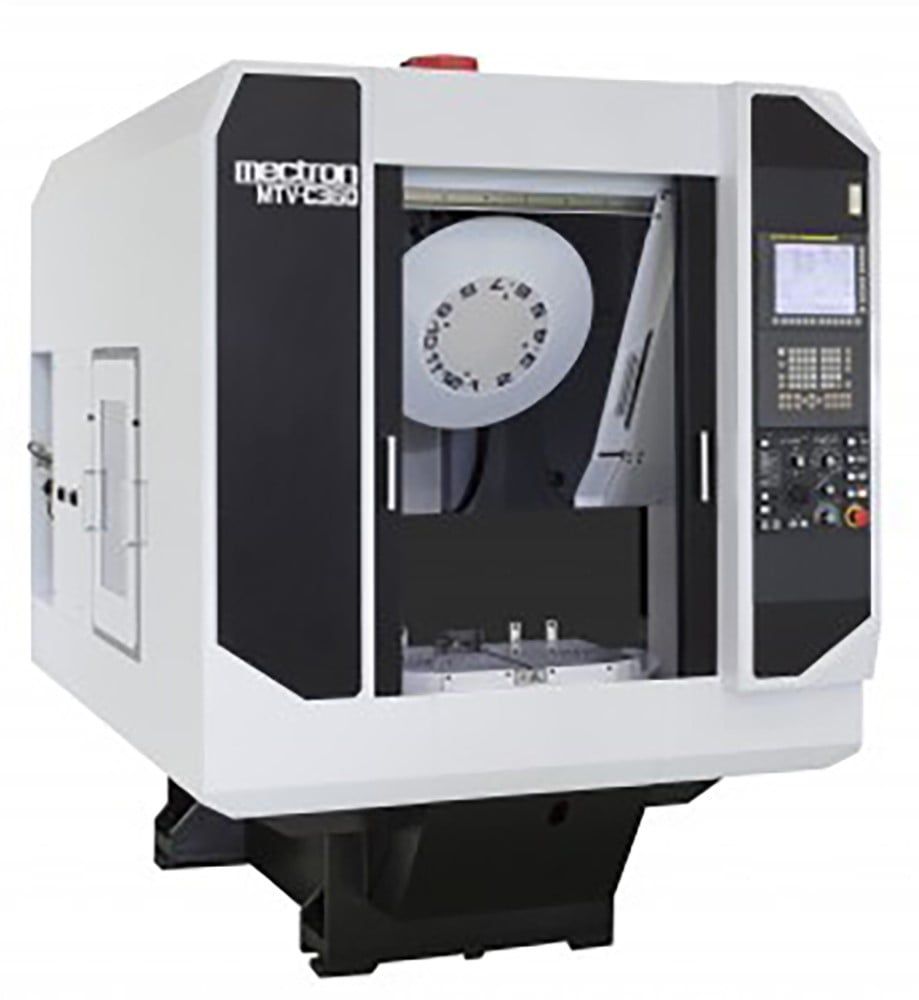

MTV-C360: Spindle speed is 12,000 min-1. All round type and one rank higher machining capability.

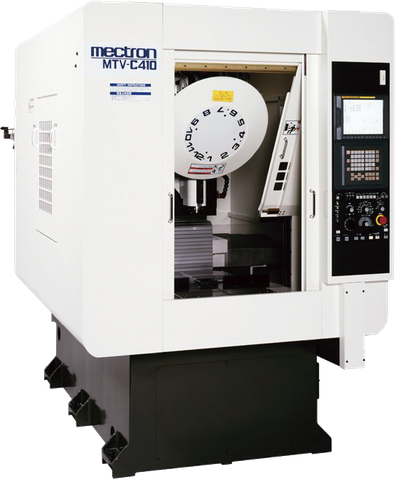

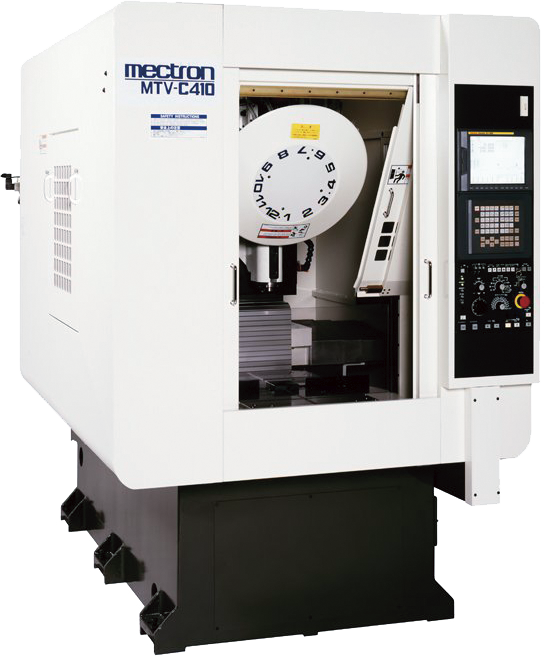

MTV-C410: Spindle speed is 10,000 min-1. BBT-40 tool holder used for heavy cutting.
*SPECIFICATIONS:
| ITEMS | Unit | MTV-C360 | MTV-C410 |
|---|---|---|---|
| Slide Travel (X, Y, Z-Axis) | mm | 500 × 350 × 300 | 400 × 300 × 300 |
| Height of Spindle Nose from Table | mm | 250 ~ 550 | |
| Tables Size | mm | 600 × 400 | 480 × 360 |
| Table T-Slot | mm | 12 | |
| Table Max. Load Capacity | kg | 150 (one side) | 100 (one side) |
| Table Rotation (APC) & Rotation | sec | 180° return – 2.3 sec | 180° return – 2.5 sec |
| Max. Spindle Speed | min⁻¹ | 12,000 (Op. 22,000) | 10,000 |
| Max. Speed Rigid Tapping | min⁻¹ | 6,000 | 5,000 |
| Rapid Traverse Rate (X, Y, Z-Axis) | m/min | 60 × 60 × 60 | 48 × 48 × 36 |
| Shank of Tool Holders | – | BBT30 + P30T-Ⅱ | BBT40 + P40T-Ⅱ |
| Tool Exchange System | – | Magazine direct system | |
| Tool Storage Capacity | tools | 12 (Op. 15) | 10 (Op. 12) |
| Max. Tool Diameter × Tool Length | mm | Ø80 × 200 | |
| Max. Tool Weight (Per 1 Tool) | kg | 2.5 (Total 20) | 4.0 (Total 25) |
| Tool Change Time (Tool to Tool) | sec | 1.0 | 1.2 |
| Tool Change Time (Chip to Chip) | sec | 2.3 | 2.5 |
| Machine Height (Max / Min) | mm | 2,550 / 2,150 | 2,515 / 2,190 |
| Height in Transportation | mm | 2,150 | 2,190 |
| Size of Machine (Width × Depth) | mm | 1,600 × 2,750 | 1,500 × 2,600 |
| Machine Weight | kg | 3,500 | 3,100 |
| NC Unit | – | FANUC 0i-MF Plus | FANUC 0i-MD |
| Spindle Motor | kW | 7.5 / 5.5 / 3.7 | |
| Feed Motor (X / Y / Z-Axis) | kW | 2.7 / 2.7 / 2.7 | 2.5 / 2.5 / 2.7 |
| ATC Magazine Drive Motor | kW | 0.5 | |
| Power Capacity Required | kVA | 17.3 | |
| Power Supply | V | AC200 ~ 230V, 3-Phase | |
| Positioning Accuracy / Repeated Positioning Accuracy | mm | 0.005 / ±0.003 | |
