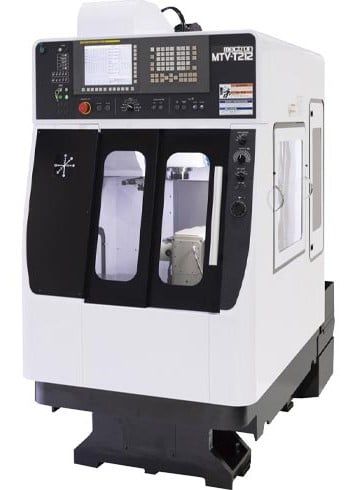

Mô tả sản phẩm
- Spindle speed 30,000 min-1 (Built-In Motor)
- HSK-E32 tooling system (30 tools ATC)
- New SX machine structure considered thermal deformation ensures High Rigidity
- 5 axis simultaneous machining can be achieved with 2 axis NC rotary table
- Linear scale feed back system (opt) can be used for high accurate positioning
*SPECIFICATIONS:
| ITEMS | Unit | MTV-T212 | |
|---|---|---|---|
| Table | Distance Between Table Top and Spindle Nose End | mm | 200 ~ 450 |
| Table Size | mm | 400 × 300 | |
| T-slot Pitch (Width) | mm | 14T slot (3 slots) | |
| Max. Load Capacity | kg | 80 | |
| Slide Travel | X-Axis Slide Travel | mm | 250 |
| Y-Axis Slide Travel | mm | 250 | |
| Z-Axis Slide Travel | mm | 250 | |
| Spindle | Max. Spindle Speed | min⁻¹ | 30,000 |
| Max. Speed Rigid Tapping | min⁻¹ | 8,000 | |
| Spindle Nose | — | HSK E32 | |
| Feed Rate | Rapid Traverse Rate (X, Y, Z) | m/min | 36, 36, 36 |
| Rapid Acceleration Rate (X, Y, Z) | G | 1.0 | |
| Motor | Spindle Motor | kW | 5.5 / 3.7 |
| Feed Axis Motor (X, Y, Z) | kW | 1.0, 2.5, 2.5 | |
| ATC Magazine Rotary Motor | kW | 0.75 | |
| ATC Arm Drive Motor | kW | 0.75 | |
| Tool Turret / ATC | Shank of Tool Holders | — | HSK E32 |
| Tool Change System | — | Double Arm | |
| Tool Storage Capacity | pcs | 30 | |
| Max. Tool Diameter × Max. Tool Length | mm | φ30 × 100 | |
| Tool Weight (Total) | kg / tool | 0.4 (5.0) | |
| Tool Change Time (T to T / C to C) | sec | 1.0 / 2.8 | |
| Size of Machine | Machine Height (Max / Min) | mm | 1,985 / 1,985 |
| Floor Space (Width × Depth) | mm | 1,085 × 1,845 | |
| Machine Weight | kg | 2,800 | |
| NC Unit | CNC Controller | — | FANUC 31i-B5 Plus |
| CNC Controller | — | FANUC 0i-MF Plus | |
| Accuracy | Positioning Accuracy | mm | 0.005 |
| Repeated Positioning Accuracy | mm | ±0.002 | |
| Power | Power Capacity Required | kVA | 12.1 |
| Power Supply | V | AC200 ~ 220, 3 Phase |
