Mô tả sản phẩm
- 12 tools (Op.18) ATC make it possible to perform high quality and complex shape machining.
- Over 1G accel/decel positioning, dual contact spindle nose. Max. 20,000min-1 (Op.22,000) spindle speed suitable for electrode and high precision small parts machining.
- It is possible to mount tilting table.

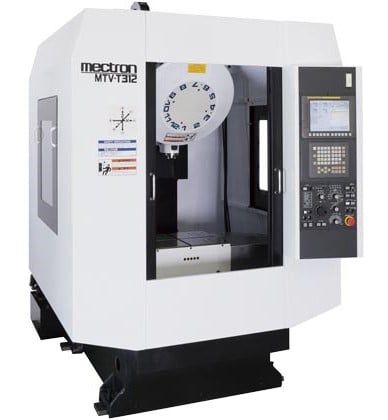

| ITEM | ITEMS | MTV-T312 |
|---|---|---|
| Table | Table size (W × L) | Base table: 500 × 380 mm |
| Max. Load Capacity | 150 kg | |
| Slide Travel | X-Axis Travel | 500 mm |
| Y-Axis Travel | 400 mm | |
| Z-Axis Travel | 280 mm | |
| Distance from Spindle Nose to Table | 300 ~ 580 mm | |
| Spindle | Max. Spindle Speed | 20,000 min⁻¹ (Option: 22,000) |
| Max. Speed Rigid Tapping | 7,000 min⁻¹ | |
| Spindle Nose | NT No.30 | |
| Spindle Motor | 3.7 / 2.2 / 1.1 kW | |
| Feed Rate | Rapid Traverse Rate (X, Y, Z) | 48 m/min |
| Tool Turret / ATC | Shank of Tool Holders | BBT30+P30T-II |
| Tool Change System | Magazine direct system | |
| Tool Storage Capacity | 12 tools (Option: 18) | |
| Max. Tool Diameter × Tool Length | φ65 × 200 mm | |
| Max. Tool Weight (per 1 tool) | 2.0 kg (Total: 15 kg) | |
| Tool Change Time – Tool to Tool | 0.9 sec | |
| Tool Change Time – Chip to Chip | 2.0 sec | |
| Size of Machine | Machine Dimensions (W × D × H) | 1,500 × 2,048 × 2,175 mm |
| Machine Weight | 2,000 kg | |
| NC Unit | CNC Controller | FANUC 0i-MD (Option: MELDAS M80) |
| Power | Power Capacity Required | 10.4 kVA |
| Accuracy | Positioning / Repeated Positioning Accuracy | 0.005 mm / ±0.003 mm |
