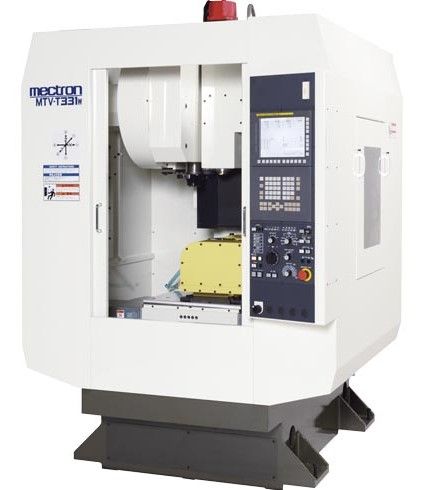

Mô tả sản phẩm
- Additional 2 axis control and 5 axis transformation realize ideal 5 axis simultaneous machining for complicated shape small work piece and mold machining operation.
- High speed spindle motor, ceramic spindle bearing and dual contact spindle nose(BBT)realize high efficiency production and high quality surface finish.
- Double arm ATC system equipped and the tool storage capacity is 25 tools. It allows to machine for complicated shape work piece.
- As for NC unit, the latest CNC FANUC 31i-B5 is equipped. Tilted working plane command, AI contour control （Ⅱ）and high speed smooth TCP(Tool center point control) realize high speed and high quality 5 axis machining.
| ITEMS | Unit | MTV-T331w |
|---|---|---|
| Table | ||
| Table Size – Base Table | mm | 500 × 380 (12 cross key ways) |
| Table Size – Sub Table | mm | 610 × 380 (12, 4 T-slots) |
| Max. Load Capacity | kg | 200 |
| Slide Travel | ||
| Longitudinal Travel (X-Axis) | mm | 500 |
| Cross Travel (Y-Axis) | mm | 380 |
| Vertical Travel (Z-Axis) | mm | 320 |
| Height of Spindle Nose from Table | mm | 325 ~ 645 |
| Spindle | ||
| Max. Spindle Speed | min⁻¹ | 20,000 |
| Max. Speed Rigid Tapping | min⁻¹ | 7,000 |
| Spindle Nose | – | NT No.30 |
| Spindle Motor | kW | 3.7 / 2.2 / 1.1 |
| Feed Rate | ||
| Rapid Traverse Rate (X, Y, Z-Axis) | m/min | 48 |
| Tool Turret / ATC | ||
| Shank of Tool Holders | – | MAS BBT30 (BT30) |
| Tool Change System | – | Double arm system |
| No. of Tool Pot | tools | 25 |
| Max. Tool Diameter × Tool Length | mm | Ø65 × 200 |
| Max. Tool Weight (per 1 Tool) | kg | 2.5 (Total 35) |
| Tool Change Time – Tool to Tool | sec | 0.7 |
| Tool Change Time – Chip to Chip | sec | 2.4 |
| Size of Machine | ||
| Size of Machine (Width × Depth × Height) | mm | 1,500 × 2,075 × 2,100 |
| Machine Weight | kg | 2,600 |
| NC Unit | – | FANUC 31i-B5 |
| Power Capacity Required | kVA | 12.5 kVA, 50A |
