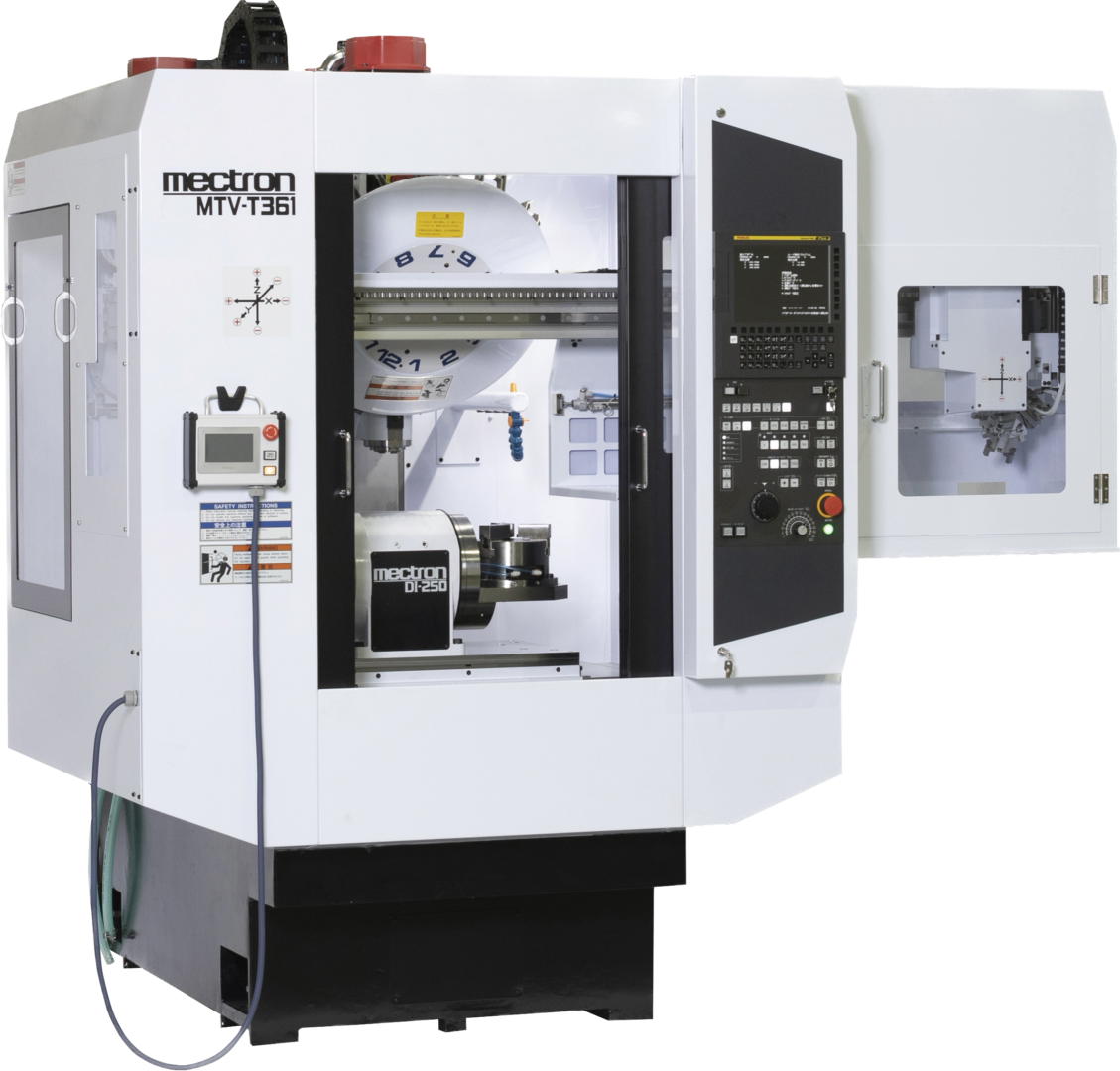

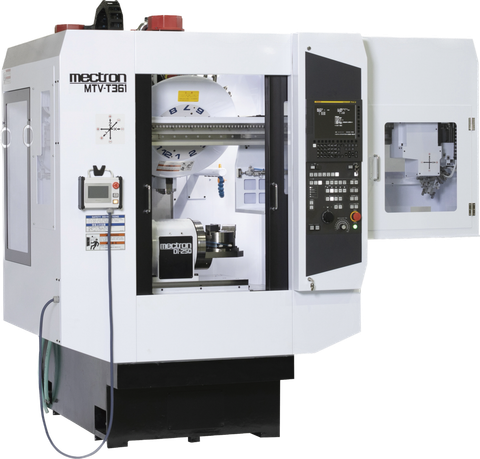

Mô tả sản phẩm
- Machine width 1,500mm (standard type) and 1,250mm (slim type) is available. L type is 1,850mm. (option)
- Machine construction, ball screw and linear guide has been improved for better machine rigidity.
- Y-axis stroke has been extended for multipiece and large size work machining.
- Max. table load capacity is 300kg.
- Heavy duty spindle motor is used. 13kw for MTV-T361, 15kw for MTV-T461.
- New flat column design realize more large tooling area.
- Machine base and column is covered to prevent thermal displacement and chip disposal problem.
- Number of tool has been increased as option. 20 tools for T361, 15 tools for T461
| ITEMS | Unit | MTV-T361 (Std.) | MTV-T361 (S-Type) | MTV-T361 (L-Type) | MTV-T461 (Std.) | MTV-T461 (S-Type) | MTV-T461 (L-Type) |
|---|---|---|---|---|---|---|---|
| Table | |||||||
| Table Size | mm | 500 × 420 | 500 × 420 | 700 × 420 | 500 × 420 | 500 × 420 | 700 × 420 |
| Table Max. Load Capacity | kg | 300 | 300 | 300 | 300 | 300 | 300 |
| Sub Table Size | mm | 610 × 420 | 610 × 420 | 810 × 420 | 610 × 420 | 610 × 420 | 810 × 420 |
| Slide Travel | |||||||
| X-Axis Slide Travel | mm | 500 | 360 | 700 | 500 | 360 | 700 |
| Y-Axis Slide Travel | mm | 420 + 100 | 420 + 100 | 420 + 100 | 420 + 100 | 420 + 100 | 420 + 100 |
| Z-Axis Slide Travel | mm | 300 | 300 | 300 | 350 | 350 | 350 |
| Distance Between Table Top and Spindle Nose End | mm | 250 ~ 550 | 250 ~ 550 | 250 ~ 550 | 250 ~ 600 | 250 ~ 600 | 250 ~ 600 |
| Spindle | |||||||
| Spindle Speed | min⁻¹ | 12,000 | 12,000 | 12,000 | 10,000 | 10,000 | 10,000 |
| Spindle Motor | kW | 13 / 7.5 / 5.5 / 3.7 | 15 / 11 / 7.5 / 5.5 | ||||
| Rigid Tapping Speed | min⁻¹ | 5,000 | 5,000 | 5,000 | 5,000 | 5,000 | 5,000 |
| Feed Rate | |||||||
| Rapid Traverse Rate (All Axes) | m/min | 50 | 50 | 50 | 50 | 50 | 50 |
| Tool Turret / ATC | |||||||
| Shank of Tool Holders | – | BBT30 + P30T-Ⅱ | BBT40 + P40T-Ⅱ | ||||
| Tool Change System | – | Magazine direct system | Magazine direct system | ||||
| Tool Storage Capacity | tools | 12 (Op.15, 20) | 12 (Op.15) | ||||
| Max. Tool Diameter × Tool Length | mm | Ø80 × 200 | Ø80 × 250 | ||||
| Tool Weight (Total) | kg | 2.5 (20) | 4.0 (25) | ||||
| Tool Change Time (T-T / C-C) | sec | 1.0 / 2.3 | 1.2 / 2.5 | ||||
| Size of Machine | |||||||
| Machine Height (Max / Min) | mm | 2,415 / 2,205 | 2,575 / 2,250 | ||||
| Machine Width | mm | 1,500 | 1,250 | 1,850 | 1,500 | 1,250 | 1,850 |
| Machine Depth | mm | 2,255 | 2,255 | ||||
| Machine Weight | kg | 2,800 | 2,800 | 2,900 | 2,800 | 2,800 | 2,900 |
| Power Supply | V | AC200 ~ 220V, 3-Phase | AC200 ~ 220V, 3-Phase | ||||
| NC Unit | – | FANUC 0i-MF Plus | FANUC 0i-MF Plus | ||||
