Mô tả sản phẩm

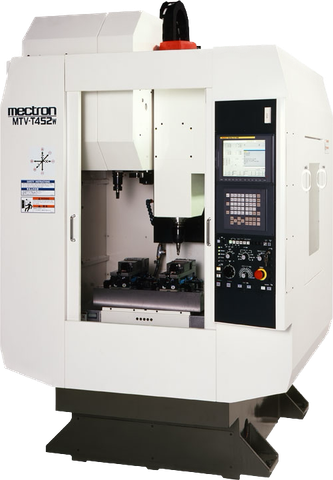

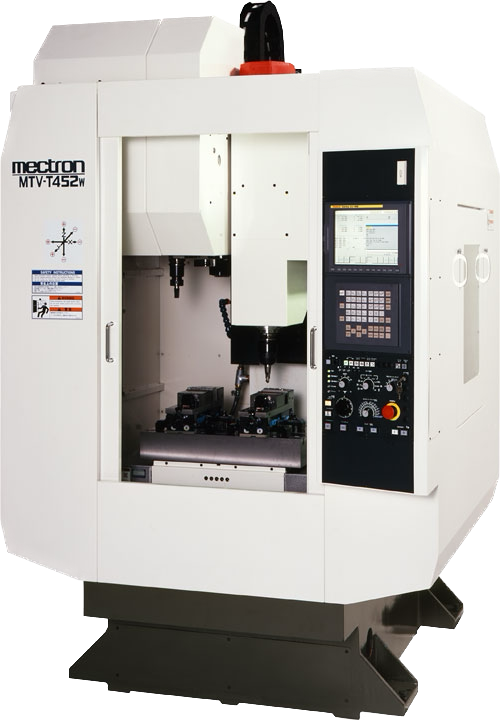

- High performance machine "MTV-T451" has been improved in rigidity by using bigger casting machine frame. Now we introduce as new compact vertical machining center.
- Required floor space is only 1550 x 2075mm.
- Bigger spindle dia.(65mm) and bigger spindle motor (11/7.5/5.5 kw) realize heavy cut machining.
- Double arm ATC system is equipped. The tool storage number is 25 tools. It allows to machine for complicated shape parts. Unused tool is stored in the tool pot area which prevent entrance chips into the tool shank area to avoid machining accuracy problem.
- NC unit FANUC 0i-MD.
| ITEMS | Unit | MTV-T452w |
|---|---|---|
| Table | ||
| Table Size (W × L) – Base Table | mm | 500 × 380 (12 cross key ways) |
| Table Size (W × L) – Sub Table | mm | 610 × 380 (4 T-slots) |
| Max. Load Capacity | kg | 200 |
| Slide Travel | ||
| Longitudinal Travel (X-Axis) | mm | 500 |
| Cross Travel (Y-Axis) | mm | 380 |
| Vertical Travel (Z-Axis) | mm | 470 |
| Height of Spindle Nose from Table | mm | 250 ~ 720 |
| Spindle | ||
| Max. Spindle Speed | min⁻¹ | 10,000 |
| Max. Speed Rigid Tapping | min⁻¹ | 5,000 |
| Spindle Nose | – | NT No.40 |
| Spindle Motor | kW | 11 / 7.5 / 5.5 |
| Feed Rate | ||
| Rapid Traverse Rate (X, Y, Z-Axis) | m/min | 48 |
| Tool Turret / ATC | ||
| Shank of Tool Holders | – | MAS BT40 + P40T-Ⅱ |
| Tool Change System | – | Double arm system |
| No. of Tool Pot | tools | 25 |
| Max. Tool Diameter × Tool Length | mm | Ø80 × 250 |
| Max. Tool Weight (per 1 Tool) | kg | 3.0 (Total 40) |
| Tool Change Time – Tool to Tool | sec | 1.2 |
| Tool Change Time – Chip to Chip | sec | 2.7 |
| Size of Machine | ||
| Size of Machine (Width × Depth × Height) | mm | 1,550 × 2,075 × 2,335 |
| Machine Weight | kg | 2,800 |
| Power Capacity Required | V | AC200 / 220V, 3-Phase |
| NC Unit | – | FANUC 0i-MD |
