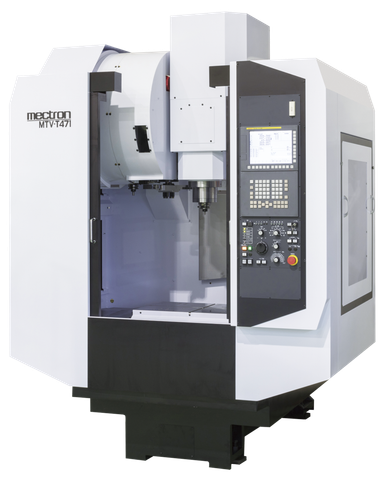

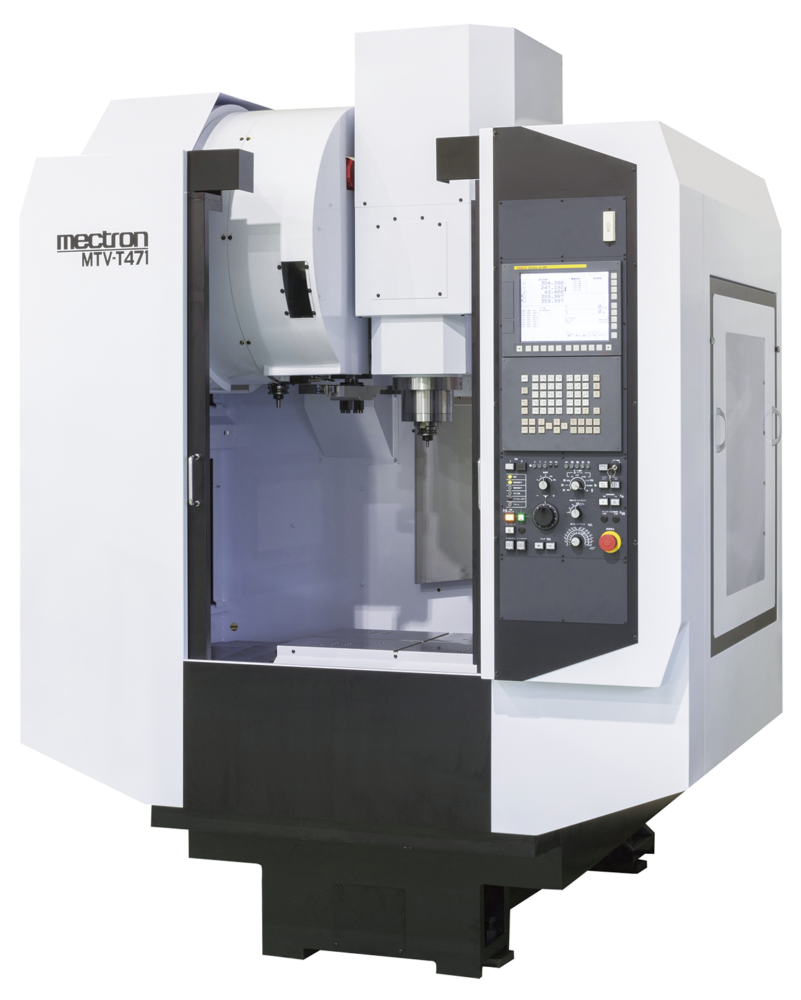

Mô tả sản phẩm
- One size up machining capability.
Compared with current machine, the table size is 1.2 times bigger, slide and Max. load capacity is 1.4 times heavier.
It makes more bigger size machining capability.
- Wide tooling area.
New column design allows more tooling space and can be solved interference problem between jig and work piece.
- High speed accel/ decel time.
High speed accel/ decel time for spindle and slide positioning ensure to shorten idle time.
- High rigidity machine.
New spindle design and new SX machine structure realize high rigidity machine.
| ITEMS | Unit | MTV-T471 | MTV-T471 (L) |
|---|---|---|---|
| Table | |||
| Table Size (W × L) – Base Table | mm | 700 × 450 | 800 × 450 |
| Table Size (W × L) – Sub Table | mm | 700 × 450 × t50 | 900 × 450 × t50 |
| (18, 4 T-slots) | (18, 4 T-slots) | ||
| Max. Load Capacity | kg | 350 (Op. 450) | |
| Slide Travel | |||
| Longitudinal Travel (X-Axis) | mm | 600 | 800 |
| Cross Travel (Y-Axis) | mm | 450 | |
| Vertical Travel (Z-Axis) | mm | 470 | |
| Height of Spindle Nose from Table | mm | 250 ~ 720 | |
| Spindle | |||
| Max. Spindle Speed | min⁻¹ | 8,000 (Op. 12,000) | |
| Max. Speed Rigid Tapping | min⁻¹ | 5,000 (Op. 8,000) | |
| Spindle Nose | – | NT No.40 | |
| Spindle Motor | kW | 18.5 / 15 / 11 | |
| Feed Rate | |||
| Rapid Traverse Rate (X, Y, Z-Axis) | m/min | 48 | |
| Tool Turret / ATC | |||
| Shank of Tool Holders | – | BBT40 + P40T-Ⅱ | |
| Tool Change System | – | Double arm system | |
| No. of Tool Pot | tools | 25 | |
| Max. Tool Diameter × Tool Length | mm | Ø85 × 250 | |
| Max. Tool Weight (per 1 Tool) | kg | 4.0 | |
| Tool Change Time – Tool to Tool | sec | 1.5 | |
| Tool Change Time – Chip to Chip | sec | 3.0 | |
| Size of Machine | |||
| Size of Machine (Width × Depth × Height) | mm | 2,650 × 2,400 × 2,454 | |
| Required Floor Space (Width × Depth) | mm | 1,800 × 2,335 | 2,000 × 2,335 |
| Machine Weight | kg | 4,700 | 4,900 |
| NC Unit | – | FANUC 0i-MF | |
| Motor Capacity | |||
| Spindle Motor | kW | 18.5 / 15 / 11 | |
| Feed Motor (X, Y, Z-Axis) | kW | 2.7 / 2.7 / 2.7 | |
| ATC Magazine Motor | kW | 0.75 | |
| ATC Arm Drive Motor | kW | 0.75 | |
| Power Capacity Required | kVA | 26.3 | |
| Power Supply | V | AC200 ~ 230V, 3-Phase | |
| Positioning Accuracy / Repeated Positioning Accuracy | mm | 0.005 / ±0.003 | |
