Mô tả sản phẩm

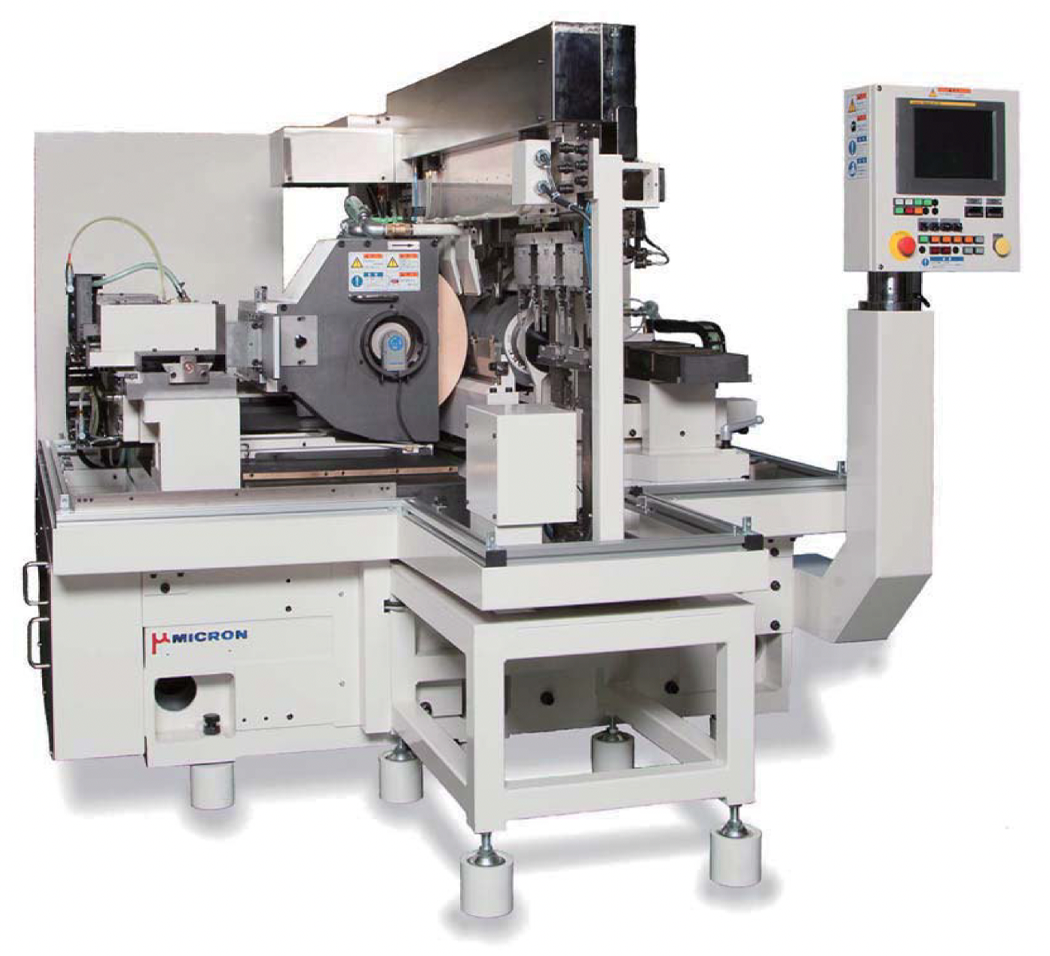

High Speed Grinding Wheel Cross Slide. Ultimate Solution for Cycle Time Optimization with One Second Idle Time. Applicable for Angular Grinding with Interpolating 2-axis. Realization of Micron's Innovation in Grinding.
*SPECIFICATIONS:
| Capacities Part Diameter (mm) | 2 ~ 30 |
| Grinding Wheel Dia. x Width x Bore (mm) | 455 x 120 x 228.6 |
| Regulating Wheel Dia. x Width ｘ Bore (mm) | 260 x 120 x 101.6 |
| Dimentions Floor Space and Height (mm) | 2210 x 2580 x 1560 |
| Weight (kg) | 3000 |
