Mô tả sản phẩm

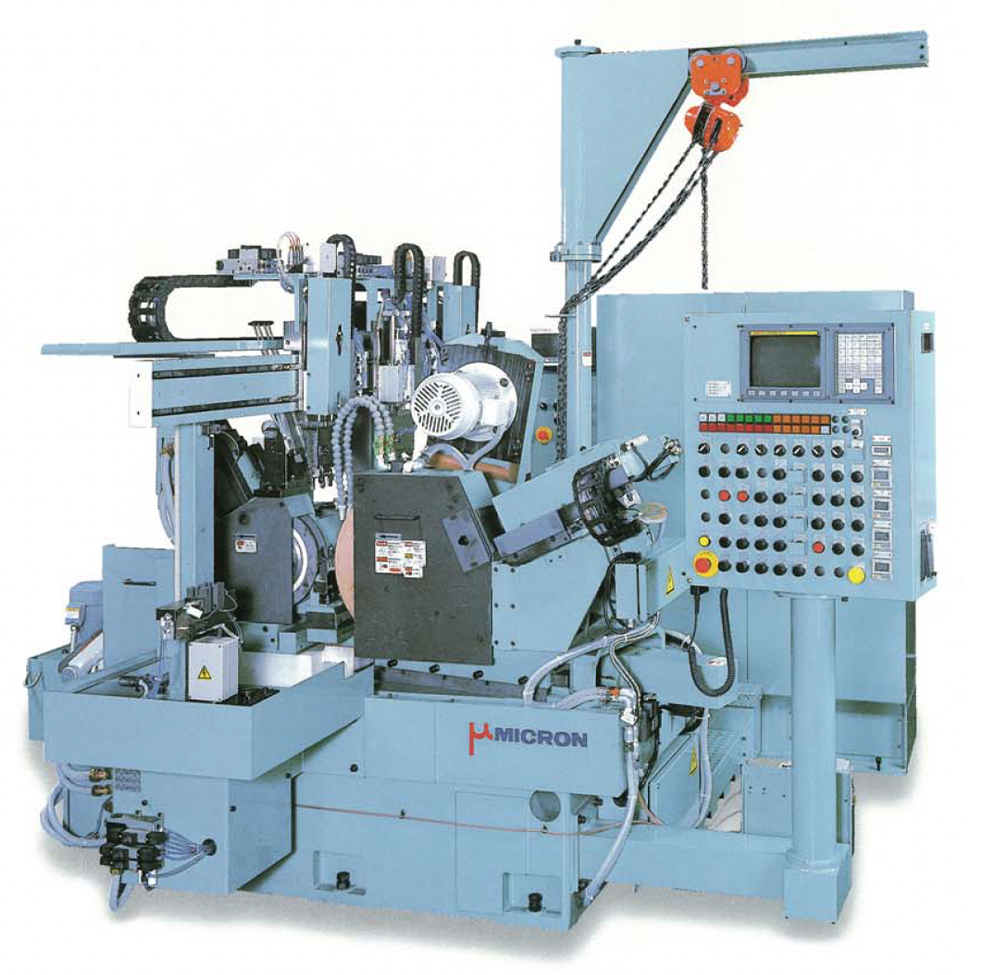

High-Precision Centerless Grinder designed exclusively for lnfeed Grinding applications. Employing a Grinding Wheel Slide to make the workpiece stationary in relation to the load, unload system. It also optimizes the Load, Unload process and simplifies its design.
*SPECIFICATIONS:
| Capacities Part Diameter (mm) | 5 ~ 80 |
| Grinding Wheel Dia. x Width x Bore (mm) | 510 x 75 x 228.6 |
| Regulating Wheel Dia. x Width ｘ Bore (mm) | 305 x 75 x 177.8 |

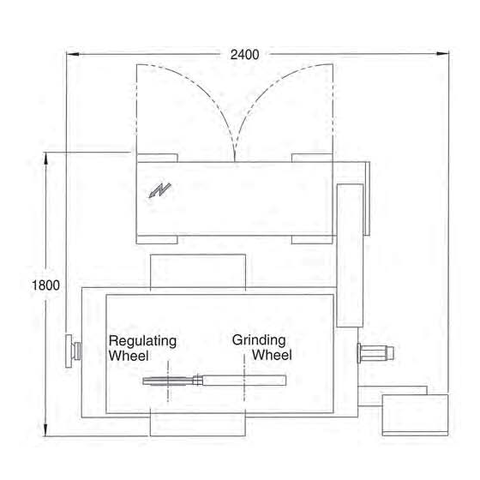

| Dimentions Floor Space and Height (mm) | 2400 x 1800 x 2000 |
| Weight (kg) | 3500 |
