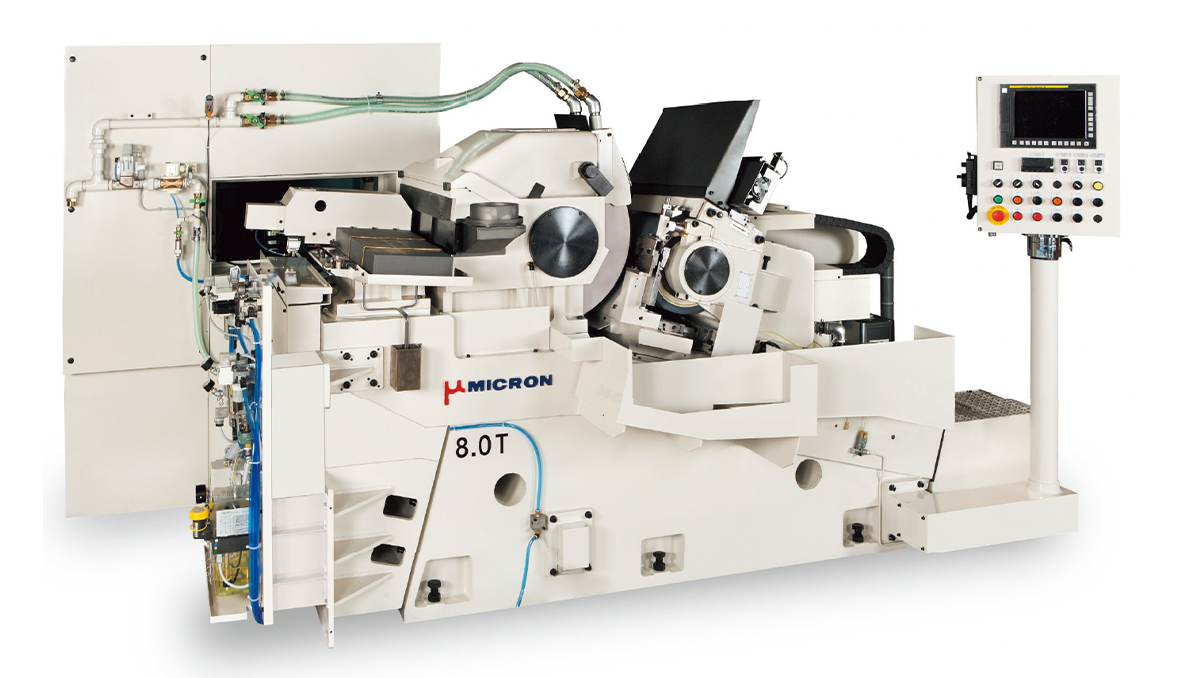

A new model Slant-Bed Twin-Grip Centerless Grinder for grinding distorted or unbalanced workpieces.
Inclining the machine bed allows for smooth rotation of distorted or unbalanced workpieces on the restblade which then allows the workpieces to be ground with High-Precision and High-Efficiency.
*SPECIFICATIONS:
| Capacities Part Diameter (mm) | 10 ~ 180 |
| Grinding Wheel Dia. x Width x Bore (mm) | 610 x 305 x 304.8 |
| Regulating Wheel Dia. x Width ｘ Bore (mm) | 330 x 305 x 203.2 |
| Dimentions Floor Space and Height (mm) | 3100 x 1650 x 1850 |
| Weight (kg) | 8000 |
