Mô tả sản phẩm

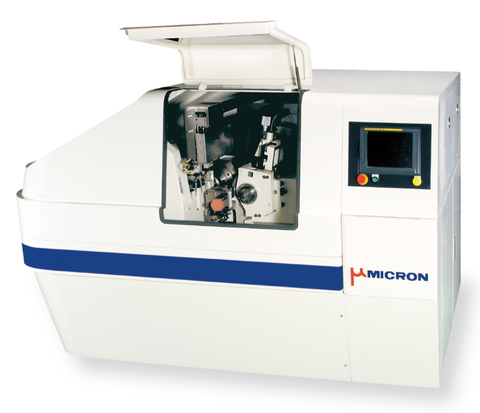

- Centerless Grinder with two independent Grinding Wheels designed exclusively for Family of Small-Lot, Multi-Diameter workpieces.
- With the ability to shift the Grinding Wheels in two directions and arrange the layout of the Wheels for multiple workpieces-the changeover time is dramatically reduced.
*SPECIFICATIONS:
| Capacities Part Diameter (mm) | 0.5 ~ 10 |
| Grinding Wheel Dia. x Width x Bore (mm) | 305 x 50 x 177.8 |
| Regulating Wheel Dia. x Width ｘ Bore (mm) | 230 x 100 x 76.2 |
| Dimentions Floor Space and Height (mm) | 2500 x 1600 x 1650 |
| Weight (kg) | 4000 |
