Mô tả sản phẩm

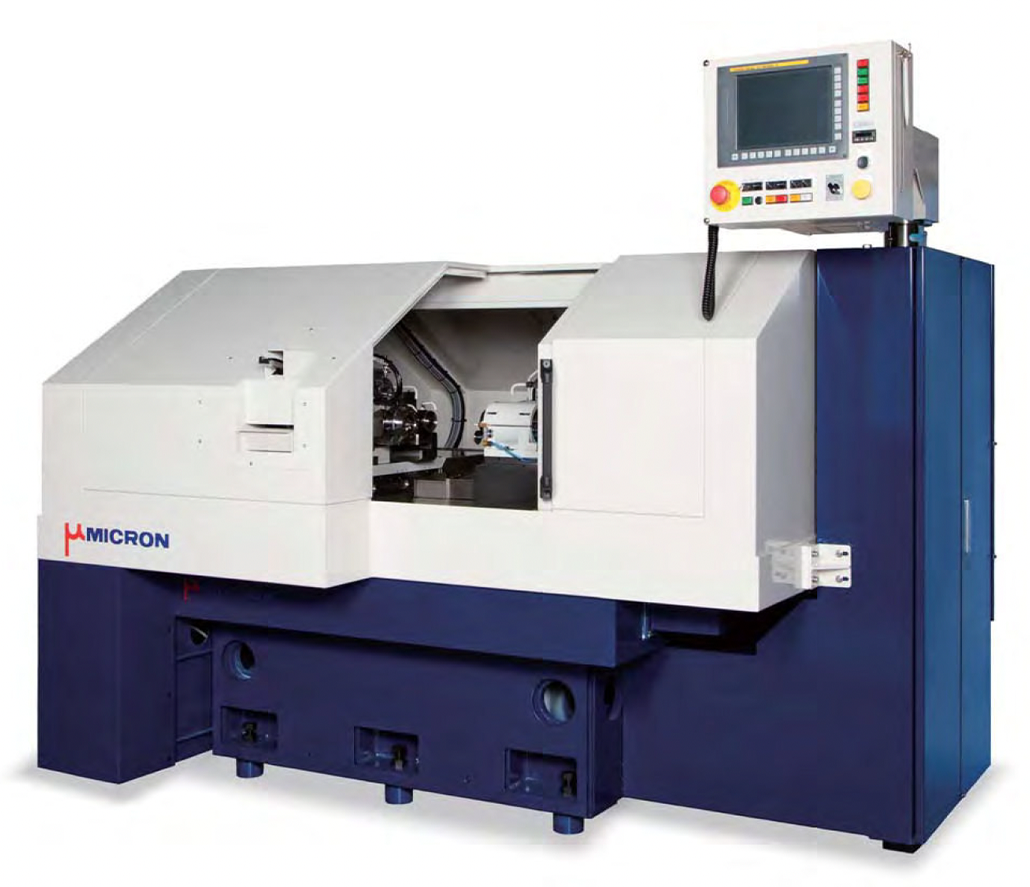

Grinding Bore, Seat, Face, OD by Single Chuck. PerfectSolution to needs for Various Applications.

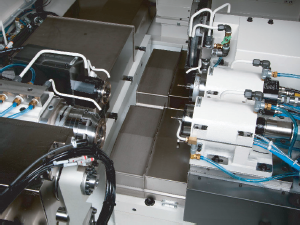

2 Separate Tables for up to 4 Grinding Spindles. Hydrostatic or Conventional Workhead Bearings for Various Applications.
*SPECIFICATIONS:
| Capacities | Workhead spindle | Wheelhead spindle | Dimensions Floor space and height (mm) | Weight (kg) | |||||
| Max I.D (mm) | Max O.D (mm) | Max length (mm) | Motor (kW) | Rotation speed (rpm) | Max No. of spindle | Motor (kW) | Rotation speed (rpm) | ||
| 20 | 40 | 50 | 2.2 | 0 - 4000 | 4 | 0.5 - 5.0 (Face: 1.0) | 60.000 - 180.000 (Face: 3.000) | 2300x2100x1350 | 5500 |
