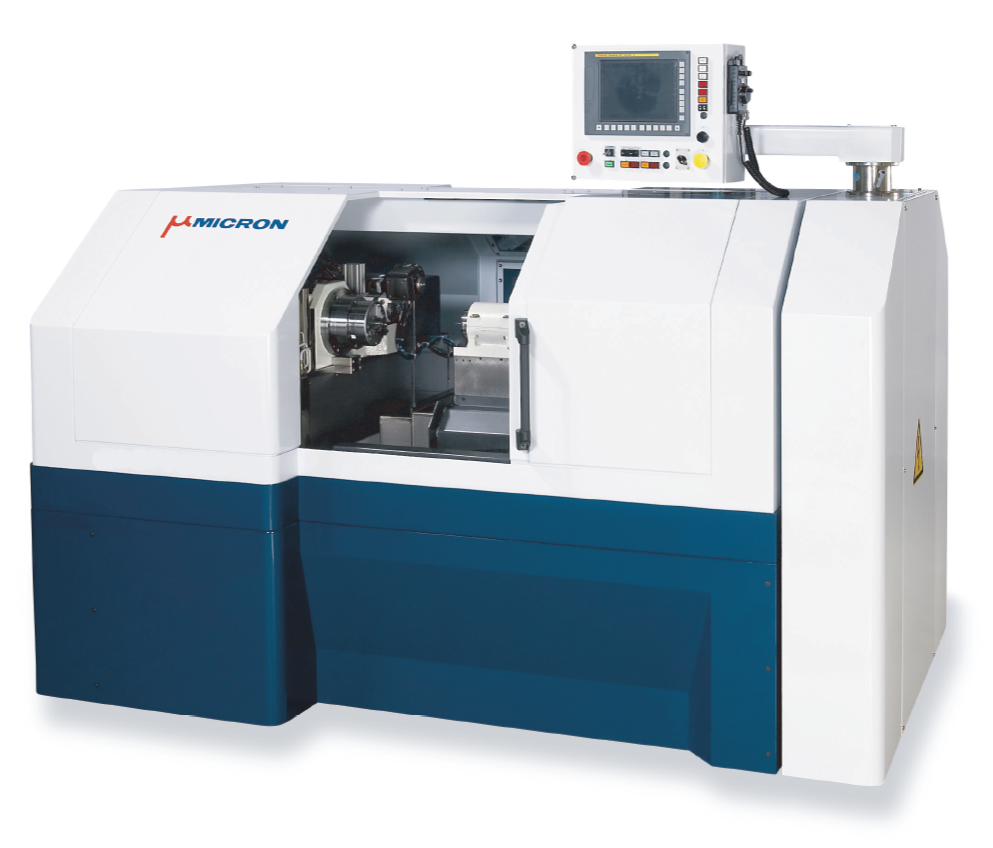

Ultra-High-Precision Internal Grinder to grind bore, seat and face applications of small work pieces.
The one chuck and three spindle system will enable high precision (concentricity and cylindricity etc.) grinding on a variety of internal surfaces.
*SPECIFICATIONS:
| Capacities | Workhead spindle | Wheelhead spindle | Dimensions Floor space and height (mm) | Weight (kg) | |||||
| Max I.D (mm) | Max O.D (mm) | Max length (mm) | Motor (kW) | Rotation speed (rpm) | Max No. of spindle | Motor (kW) | Rotation speed (rpm) | ||
| 20 | 40 | 50 | 1.5 | 0 - 4000 | 3 | 0.5 - 5.0 | 60.000 - 180.000 | 2300x1600x1800 | 4000 |
