Mô tả sản phẩm

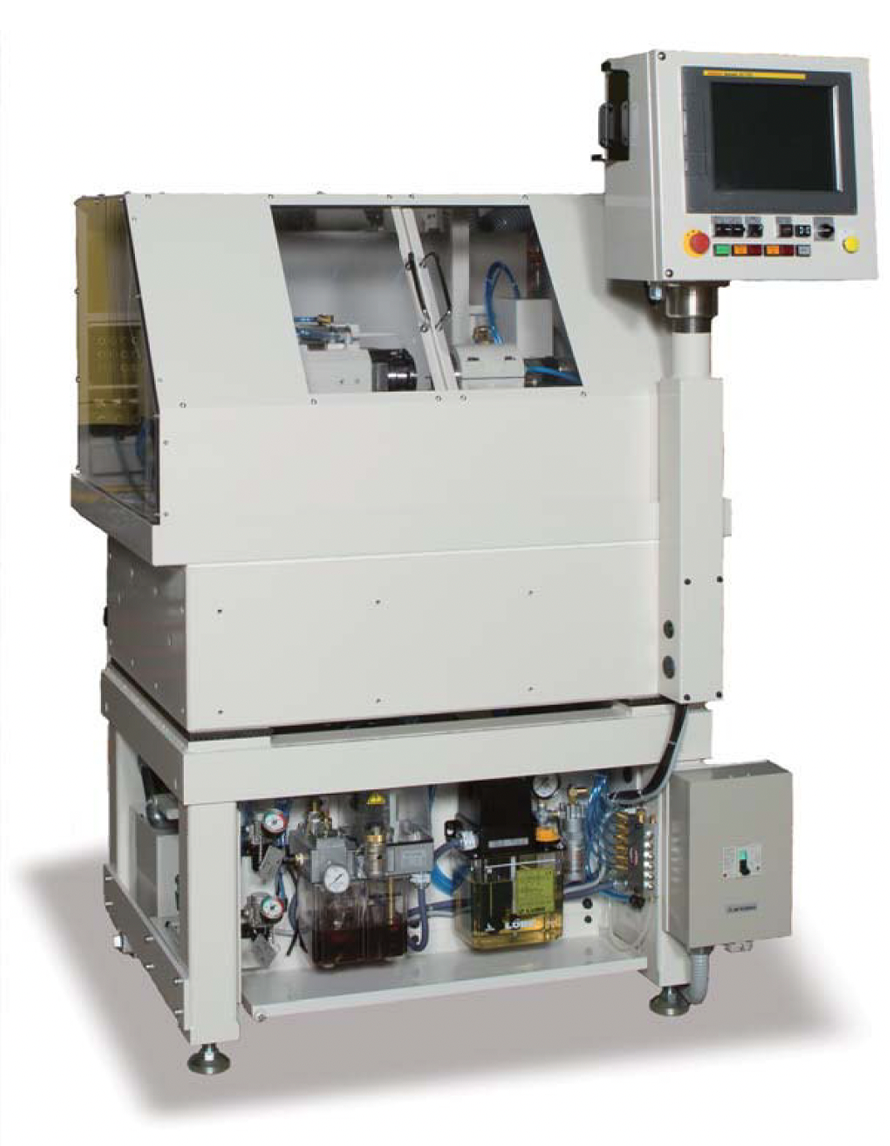

This machine is designed with a footprint of only half the size of an equivalent conventional size machine. The orthogonally oriented slides are mounted at the same height, and lightweight workhead chuck is utilized. This affordable machine is designed specifically to support a wide range of applications, such as bore/face grinding with a very high degree of precision and reduced cycle times.
*SPECIFICATIONS:
| Capacities | Workhead spindle | Wheelhead spindle | Dimensions Floor space and height (mm) | Weight (kg) | |||||
| Max I.D (mm) | Max O.D (mm) | Max length (mm) | Motor (kW) | Rotation speed (rpm) | Max No. of spindle | Motor (kW) | Rotation speed (rpm) | ||
| 5 | 10 | 10 | 1 | 0 - 4000 | 1 | 0.5 - 3.0 | 60.000 - 180.000 | 940x670x1300 | 1000 |
