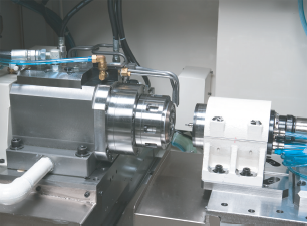

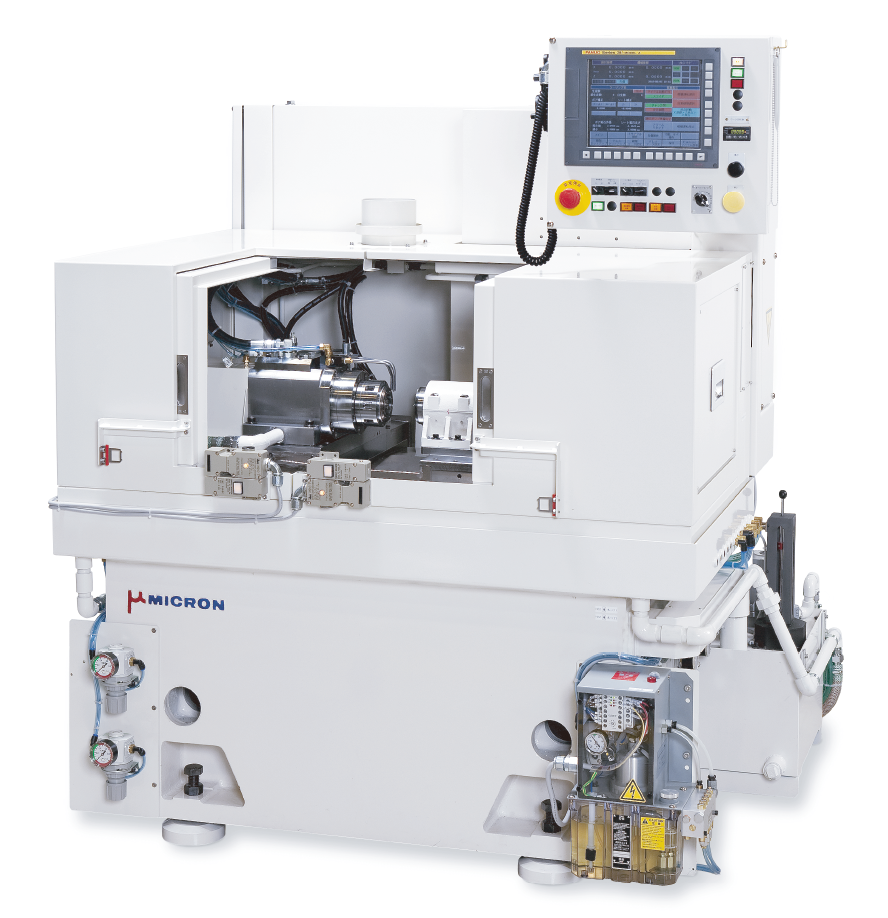

An innovative concept internal grinder to realize quick adjustments for seat angle changes, utilizing interpolation by controling X a nd Z axis of the work-head and grinding wheel tables. Each table is controlled by a linear motor that enables both high speed oscilation and high positioning accuracy.
*SPECIFICATIONS:
| Capacities | Workhead spindle | Wheelhead spindle | Dimensions Floor space and height (mm) | Weight (kg) | |||||
| Max I.D (mm) | Max O.D (mm) | Max length (mm) | Motor (kW) | Rotation speed (rpm) | Max No. of spindle | Motor (kW) | Rotation speed (rpm) | ||
| 10 | 15 | 15 | 2.5 | 0 - 4000 | 1 | 0.5 - 3.0 | 60.000 - 180.000 | 1400x1400x1650 | 2000 |
